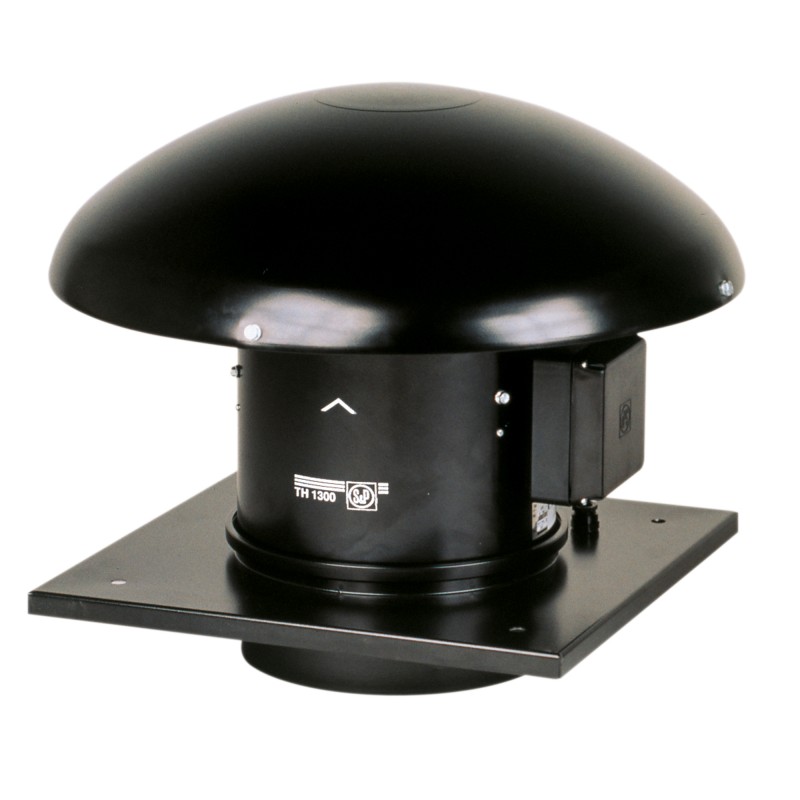

THC ECOWATT

Roof fans

Centrifugal - Extraction or insufflation - ECM < 1400 m3/h

THC ECOWATT View larger

THC ECOWATT

Roof fans


Centrifugal - Extraction or insufflation - ECM < 1400 m3/h

PIC-ErP.jpg ErP 2018 compliant - UVNR
Variable EC motor
PIC-moteur-ECM.jpg PIC-Logiciels.jpg

  • Extraction or insufflation
  • Low consumption ECM motor
  • Ease of installation
  • Integrated potentiometer


Application

Extraction or insufflation.


  • Description

  • Dimensions

  • Documentation

  • Public Price

  • Software

  • References

Flow rates from 100 to 1400 m3/ h.
4 single-phase sizes: 500/160, 800/200, 1300/250, 2000/315.
4 connection diameters on conduits: 160, 200, 250, 315 mm.
Insufflation version by inversion of the central body.


Construction
  • Models 500 and 800:
    • Body in black engineering plastic.
    • Base and connection flange in sheet steel protected by black polyester paint.
    • Galvanized sheet steel shell protected by cataphoresis and black polyester paint.
    • ABS propeller.
  • 1300 and 2000 models:
    • Body, base and connecting flange in sheet steel protected by black polyester paint.
    • Spun aluminum sheet shell, protected by black polyester paint.
    • Aluminum sheet propeller.
    • All models are fitted with an anti-bird screen.

Motorization
  • For sizes 500 and 800: brushless DC motor, IP44, very high efficiency, power supply 90 / 260V / 50-60Hz, with integrated thermal protection managed by electronics.
  • For sizes 1300 and 2000: ECM motor, direct current, IP44, very high efficiency, single-phase 230V / 50-60Hz, with integrated thermal protection managed by electronics.
  • Potentiometer integrated in the electrical connection box.

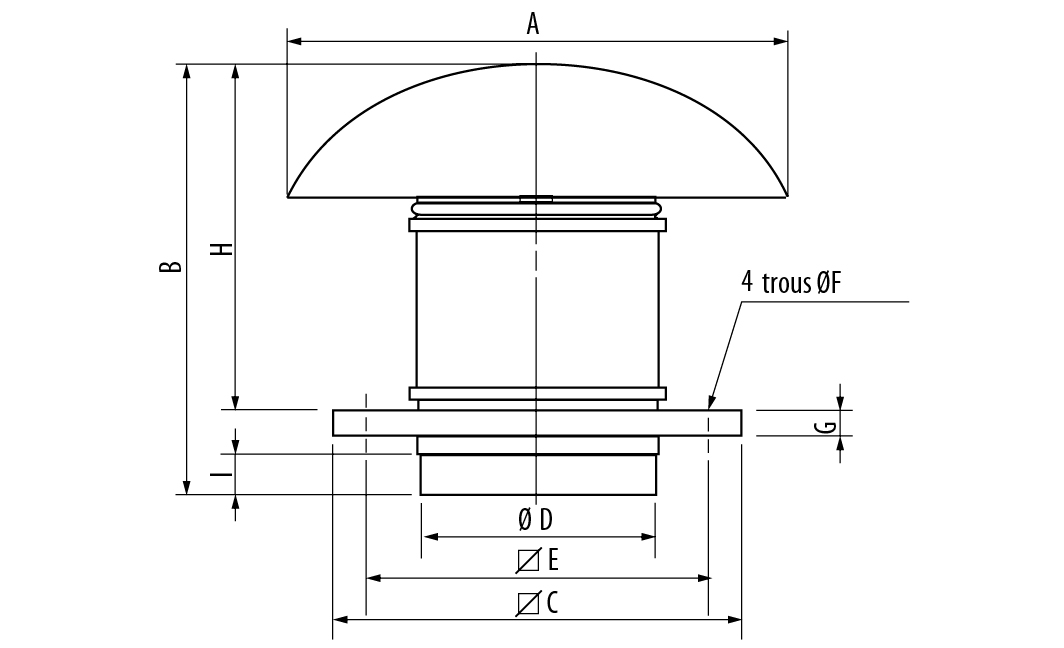

Selection - Standard fans


Model A B C ØD E ØF G H I Weight (kg)
THC 500/160 ECOWATT 400 339 300 160 245 10 20 274 33 3.8
THC 800/200 ECOWATT 400 371 300 198 245 10 20 306 36 5.6
THC 1300/250 ECOWATT 546 457 435 248 330 12 20 372 42 11.2
THC 2000/315 ECOWATT 735 544 560 312 450 12 20 450 50 17.2

Close Open Detailed specifications

Text catalog pages (CT)

Catalog Pages - Other

Close Open Public tariff price

Price catalog pages (CP)

Close Open Installation instructions

Installation instructions (NT)

Close Open Performance / Environment Certificates

ErP regulatory sheet (FERP)

Close Open Electrical / ATEX Certificates

Electrical CE Declarations (DCCE)
