TEDH F400 ECOWATT® - TEDV F400 ECOWATT®
Roof fans F400 120
Centrifuges - Reaction - ECM < 26000 m3/h
View larger
TEDH F400 ECOWATT® - TEDV F400 ECOWATT®
New product
 |
ErP 2018 compliant - UVNR Variable EC motor |
||
 |
 |
 |
 |
 |
 |
 |
|
- Low consumption ECM motor
- High performance jet turbine
- F400 120 approved without relay box and 400 ° C 1 / 2h C4
- Integrated regulation VAV, CAV, COP, ASR
- Flow or pressure display
- Communicating ModBus
- Continuous operation up to 120 ° C
CMV collective and tertiary housing.
Extraction of stale air from tertiary and industrial premises.
Ventilation and smoke extraction in professional kitchens.
Maximum temperature of the extracted air in permanent mode: 120 ° C.
In the current state of the standard, this range cannot be associated with an NF certified relay box.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
Flows from 200 to 24,000 m3/h.
6 sizes: 355 / 400 / 450 / 500 / 630 / 710.
Models
Versions
OPTIONS - CORROSION TREATMENT
Construction
Motorization
Communication
ETDZ Remote control
Flow or pressure display
Smoke extraction operation
F400 120 factory-fitted and approved electrical equipment:
F400 120 Approved Mounting Accessories
Selection of smoke extraction fans
6 sizes: 355 / 400 / 450 / 500 / 630 / 710.
Models
- TEDH F400 ECOWATT® : horizontal rejection
- TEDV F400 ECOWATT® : vertical rejection
- Engine and turbine not visible.
- Less fouling of the immediate surroundings.
Versions
- TEDH/V F400 ECOWATT® manual control with potentiometer.
- TEDH/V F400 ECOWATT® VAV with flow rate display.
- TEDH/V F400 ECOWATT® COP with pressure display.
- TEDH/V F400 ECOWATT® CAV with flow rate display.
- TEDH/V F400 ECOWATT® ASR with pressure display for association with a single-flow CTA VIM , ASR ECOWATT system®.
OPTIONS - CORROSION TREATMENT
Construction
- High performance reaction turbine in galvanized steel.
- Convergent/divergent type suction hood for aeraulic optimization and increased performance of the turret, with reduced sound levels.
- Direct coupling on the motor shaft.
- Motor controller fixed on a closed rejection face.
- Plate, arm and motor support in galvanized steel.
- 4 lifting lugs depending on model.
- 4 lifting slings.
- Arm trims in RAL 7024 gray pre-lacquered sheet metal:
- Neat finish of the turret.
- Easy disassembly to access the turret fixing points.
- Protective mesh in pre-lacquered gray RAL 7024 galvanized steel sheet. Meshes in accordance with standard NF EN ISO 12499.
- Cap in ABS PMMA gray RAL 7024:
- Enhancing aesthetics.
- Motor and display protection.
- Excellent UV and weather resistance.
- Very good impact resistance.
- Vertical discharge version: addition of 3 deflectors in RAL 7024 pre-lacquered sheet metal delivered factory-fitted (TEDV F400 ECOWATT model®) or available as a kit for on-site assembly (KRVT).
- The RAL 7024 gray pre-painted sheet metal is of atmospheric corrosivity category C5 according to NF EN ISO 12944-2.
Motorization
- ECM motor, class F, with remote IP55 controller:
- Single-phase 230V 50/60Hz power supply controller for sizes 355 to 450.
- Three-phase 400V 50/60Hz power supply controller for sizes 500 to 710.
- Thermal protection built into the controller.
Communication
- ModBus RTU in RS485 port.
ETDZ Remote control
- ModBus IP21 touch control, 3m RJ12 cable. provided.
- On/Off function.
- 0-10V speed control in VAV mode.
- Display of set point and rotation speed.
- Display of consumption and faults.
- Magnetically attached shockproof case included.
Flow or pressure display
- VAV display of the measured flow in m3/h. Accuracy ±2.5%.
- CAV display of the measured flow in m3/h. Accuracy ±2.5%.
- COP display of the pressure measured in Pa. Accuracy ±2.5%.
Smoke extraction operation
- TED F400 ECOWATT® is approved for the extraction of hot gases and smoke in the event of a fire. This operating mode is automatic and does not require any configuration: in the event of gas extraction at a temperature > 200°C, the turret will automatically switch to GV with its internal thermal protections inhibited.
- The smoke extraction mode can also be triggered manually with a BDRA type control box.
- CAV/VAV/COP modes are no longer taken into account.
F400 120 factory-fitted and approved electrical equipment:
- C1-CR1 cable protected by a flexible outer sheath (excellent UV resistance).
- INTZ: padlockable proximity switch, with 2 auxiliary contacts (1 NO and 1 NC), visibility of the rotary knob only and increased weather protection.
- PTHV-A: pressure transmitter with visible flow or pressure display. Integrated under the cap, it displays the flow in VAV control.
- VCHV-A: Pressure or flow regulator for COP or CAV regulation with display, integrated under the cap.
F400 120 Approved Mounting Accessories
- TCDZ 01 to 09, SILS muffler, POPM blanking plate, KRVT vertical kit.
- TCDZ 12: Galvanized steel overpressure damper. Ensures a good air and water seal when the turret is stopped. Option delivered mounted on the TEDV ranges - Provide as many TCDZ 12 as there are discharge faces.
- TCDZ 14: Galvanized steel overpressure damper. Ensures a good air and water seal when the turret is stopped. Accessories to be fitted to the TEDV ranges already delivered - Provide as many TCDZ 14s as there are discharge faces.
- TCDZ 15: overpressure damper + vertical deflector in galvanized steel. Ensures a good air and water seal when the turret is stopped. Accessories to be mounted on the TEDH ranges already delivered - Provide as many TCDZ 15s as there are discharge faces.
- POPM: blanking plate of a rejection face for TEDH for installation of the turret near a wall (or an obstacle to gas evacuation), or in a corner or between 2 other turrets with 2 POPM. Saves space and avoids the rejection of air and dirt directly on the wall.
- Laboratory tests have made it possible to verify that the vertical discharge kit and the blanking plate on one side have no effect on the aeraulic, acoustic and electrical performance of the turret.
Selection of smoke extraction fans
TEDH F400 ECOWATT®
TEDV F400 ECOWATT®
|
Model |
A |
B |
CH |
D |
E |
F |
P |
Weight (Kg) |
|
355 |
540 |
570 |
754 |
289.1 |
450 |
30 |
146 |
34 |
|
400 |
540 |
609 |
754 |
325.8 |
450 |
30 |
169 |
44 |
|
450 |
660 |
684 |
864 |
366.5 |
570 |
30 |
190 |
57 |
|
500 |
660 |
700 |
867 |
407.3 |
570 |
30 |
198 |
83 |
|
630 |
800 |
805 |
1045 |
513.1 |
668 |
30 |
234 |
106 |
|
710 |
946 |
1089 |
1223 |
577.9 |
830 |
40 |
273 |
165 |
TEDV F400 ECOWATT®
|
Model |
A |
B |
CV |
D |
E |
F |
Weight (Kg) |
|
355 |
540 |
570 |
901 |
289.1 |
450 |
30 |
38 |
|
400 |
540 |
609 |
926 |
325.8 |
450 |
30 |
49 |
|
450 |
660 |
684 |
1051 |
366.5 |
570 |
30 |
63 |
|
500 |
660 |
700 |
1070 |
407.3 |
570 |
30 |
94 |
|
630 |
800 |
805 |
1279 |
513.1 |
668 |
30 |
116 |
|
710 |
946 |
1089 |
1489 |
577.9 |
830 |
40 |
179 |
Detailed specifications
Text catalog pages (CT)
Text catalog pages (CT) Other languages
Catalog Pages - Other
Public tariff price
Price catalog pages (CP)
Installation instructions
Installation instructions (NT)
Installation instructions (NT) Other
Installation instructions (NT) Other languages
Fire / Smoke extraction certificates
Fire classification report (PVFEU)
CE smoke extraction certification (CCCE)
Performance / Environment Certificates
ErP regulatory sheet (FERP)
Technical Notice (ATEC)
Declaration of performance (DOP)
Product environmental profile (PEP)
Electrical / ATEX Certificates
Electrical CE Declarations (DCCE)
Prescription assistance
Specification text (TP)
Commercial documents
Commercial leaflet (FCOM)
EASYVENT
Access the software online
| ALL APPLICATIONS |
|||
 |
Selection of fans and AHU |
|
Other products: permanent updates BSP F400 CAB ECOWATT CAD HR SLIM CAD O INTEGRAL CBM CBM RE CGT CAT N F400 CHGT F400 - CHGT F300 CHRB/TN - CRVB/TN CMB - CMT CRHB-CRVB ECOWATT CTB CVAB N - CVAT N CVAB N - CVAT N ECOWATT FR F400 HCTB - HCTT - HCTT ATEX HDB ATEX HGHT F400 / F200 HGTT-V HXBR - HXTR HXBR ECOWATT KABB - KABT PURECLASS TCBB - TCBT TCTB ATEX - TGT ATEX TCDH ATEX TD - TD ECOWATT TD ATEX TD SILENT - TD SILENT ECOWATT TGHT F400 - THGT F200 TGT TGT ATEX THC - THC ECOWATT THGT HATCH F400 TRB - TREB TXBR ECOWATT ECOWATT WIND VENT-NK - VENT-VN |

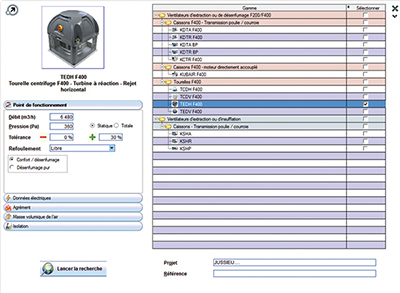

OPTAIR Ventilation
