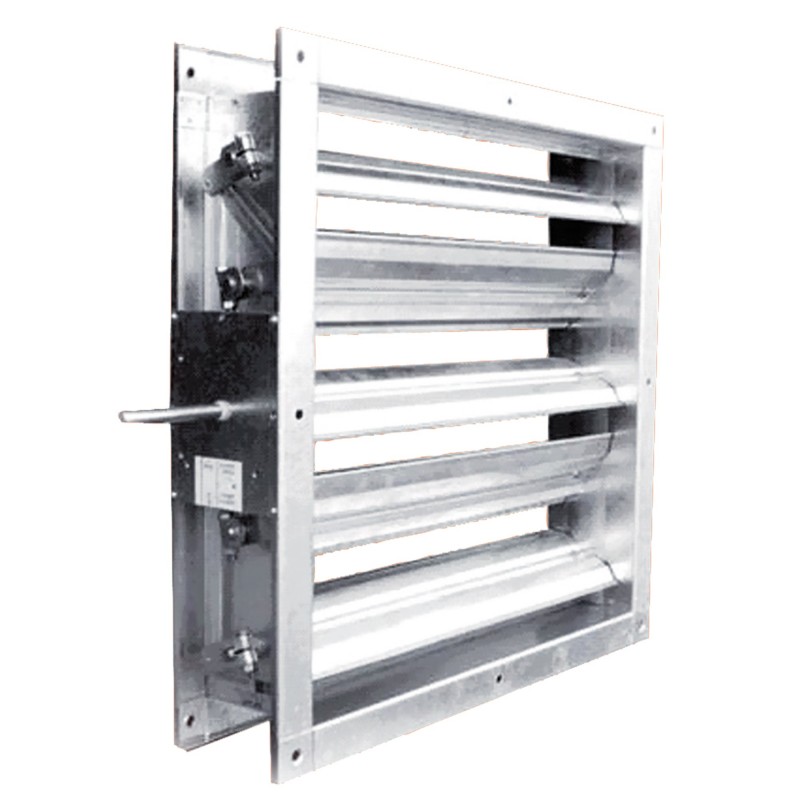

CDR 100

Rectangular registers

Galvanized or stainless steel - Fins 100 mm pitch

View larger

CDR 100

Rectangular registers

Galvanized or stainless steel - Fins 100 mm pitch

Factory-fitted servomotor option
100 mm pitch fins
Available in AISI 304 or 316L stainless steel version

Application

Balancing of air networks.
Fresh air/extract air mixture adjustment.
Complete closure for frost protection.

Tertiary buildings

Industrial and logistics buildings

Order online

Description
Dimensions
Documentation
Public Price
Software
References

B x H: 200 x 210 to 1700 x 2010 mm. Air passage dimensions.
CDR 100F: frame and fins in galvanized steel sheet
CDRE 100F: frame and fins in galvanized steel sheet and seal glued to fins.
CDR 100X: frame and fins in AISI 304 stainless steel

Description

Frame in galvanized steel sheet Z275 (CDR 100F) or stainless steel 304 (CDR 100X), width 80 mm, thickness 10/10.
Profiled fins in galvanized steel sheet Z275 (CDR 100F) or stainless steel 304 (CDR 100X), thickness 0.5 + 0.5 mm (0.6 + 0.6 mm)
Opposite opening fins.
Side sealing with flexible aluminum blade.
Fin pitch 100 mm.
Mechanism by galvanized steel connecting rods outside the air flow.
Nylon bearing (continuous temperature 70°C).
Control shaft diameter 12 mm.
Control shaft length 100 mm.
Register delivered without order.

H	Number of holes Ø 8	Y
210
310
410	1	205
510	1	255
610	1	305
710	2	205
810	2	255
910	2	305
1010	3	205
1110	3	255
1210	3	305
1310	4	205
1410	4	255
1510	4	305
1610	5	205
1710	5	255
1810	5	305
1910	6	205
2010	6	255
