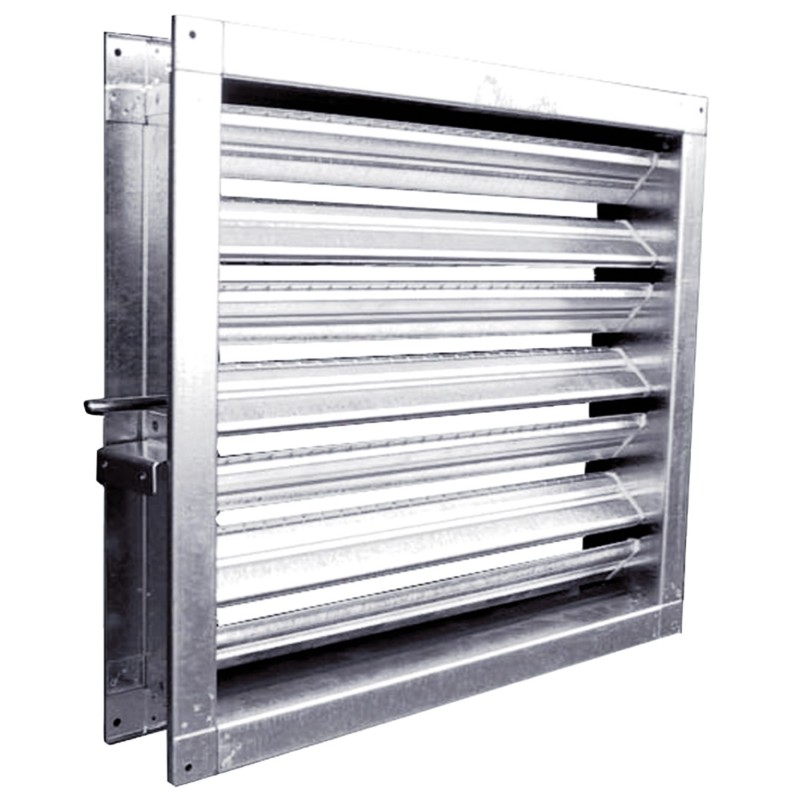

CDR 50
Rectangular registers
Galvanized or stainless steel - 50 mm pitch fins
View larger
CDR 50
New product
- Factory-fitted servomotor option
- 50 mm pitch fins
- Available in AISI 304 or 316L stainless steel version
Application
Balancing of air networks.
Fresh air/extract air mixture adjustment.
Complete closure for frost protection.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
B x H: 210 x 110 to 710 x 710 mm. Air passage dimensions.
CDR 50F: Frame and fins in galvanized steel sheet
CDR 50X: Frame and fins in AISI 304 stainless steel
Description
CDR 50F: Frame and fins in galvanized steel sheet
CDR 50X: Frame and fins in AISI 304 stainless steel
Description
- Frame in galvanized steel sheet Z275 (CDR 50F) or stainless steel 304 (CDR 50X), width 80 mm, thickness 10/10.
- Profiled fins in galvanized steel sheet Z275 (CDR 50F) or stainless steel 304 (CDR 50X), thickness 0.4 + 0.4 mm.
- Opposite opening fins.
- 50mm fin pitch.
- Mechanism by nylon gear wheels in the air flow.
- Control shaft diameter 8 mm.
- Control shaft length 55mm.
- Register delivered without order.
|
B |
210 |
260 |
310 |
360 |
410 |
460 |
510 |
560 |
610 |
660 |
710 |
||
|
H |
110 |
160 |
210 |
260 |
310 |
360 |
410 |
460 |
510 |
560 |
610 |
660 |
710 |
