PAP 850V - PAP 650V

Old ranges

Mobiles < 850 m3/h

FLAG Obsolete

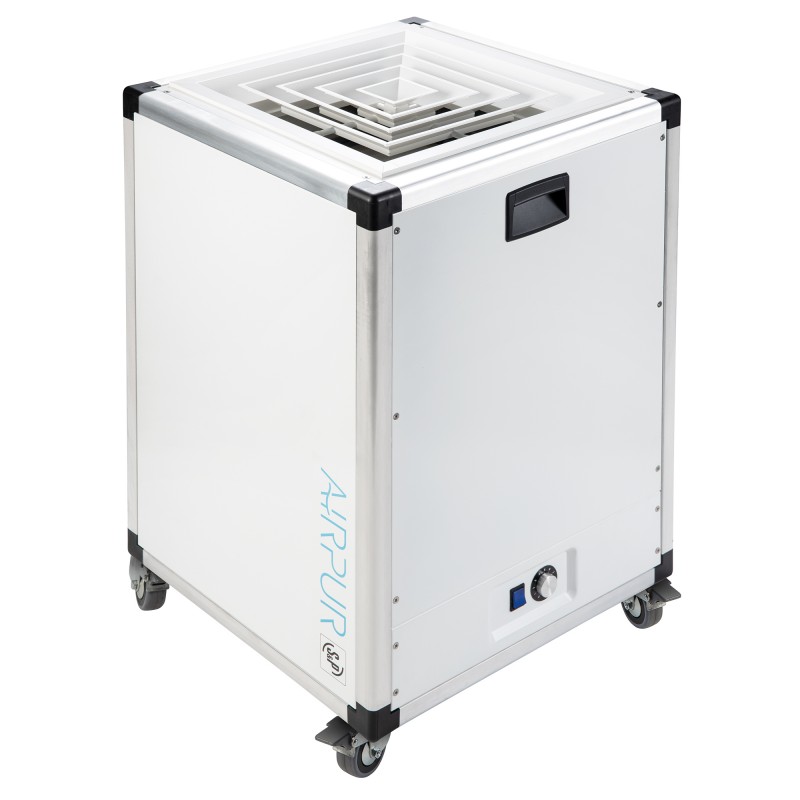

PAP 850V - PAP 650V View larger

PAP 850V - PAP 650V

Old ranges


Mobiles < 850 m3/h

Size your purifier
Filters
Filter ePM1 55% (F7) according to ISO 16890
Dimension 457 x 457 x 48 mm.
HEPA H14 filter Efficiency of 99.995 % according to standard
EN 1822 - Dimension 457 x 457 x 150 mm.

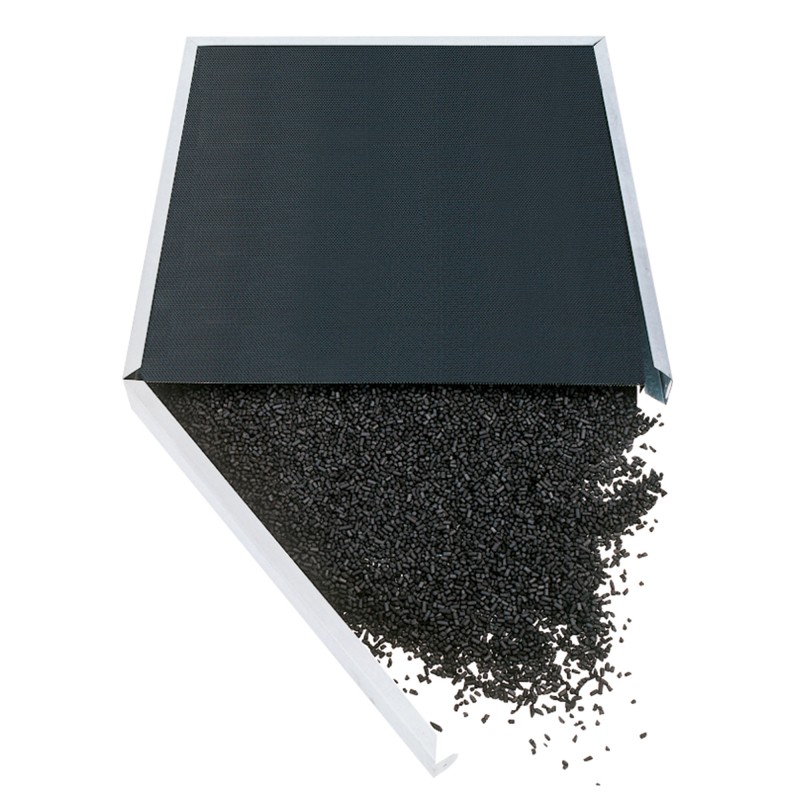

Activated carbon filter - metal mesh + absorbent material
pellets - Dimension 457 x 457 x 18 mm (PAP model
650V CA H14).

  • Air purification by filtration
  • Simple and proven solution
  • HEPA H14 filter according to standard EN 1822
  • Improvement of IAQ - Reduction of viruses
  • Ease of installation and maintenance
  • Small footprint


Application

Indoor installation, partitioned premises.
Offices, shops, education, health, leisure, accommodation, catering ...
Filtration of dust, fine particles, VOCs, pollens, spores, bacteria, viruses including SARS-CoV-2.
Filtration of odors and VOCs, improved by the addition of an activated carbon filter.
Recycling operation, no action on the CO2 rate or on the relative humidity.
Complementary device to a ventilation system with fresh air supply.
For rooms from 20 to 100 m² on the basis of a renewal of 3 volumes / hour or for a maximum of 28 people on the basis of 30 m3 / h per person (minimum flow rates recommended for rooms not classified ISO).
For large spaces or more than 3 m in height, provide several units.
Adjustable air flow of 10% 100% of the maximum flow by potentiometer.

  • Description

  • Dimensions

  • Documentation

  • Public Price

  • Software

  • References

2 models:
PAP 850V H14 = Filter ePM1 55% (F7) + HEPA H14 filter - Maximum flow rate of 850 m3/h.
PAP 650 CA H14 = Activated carbon filter + filter ePM1 55% (F7) + HEPA H14 filter - Maximum flow rate of 650 m3/h.


Construction
  • Structure in aluminum profiles and black plastic corners.
  • Double skin panels in galvanized sheet steel painted RAL 9016.

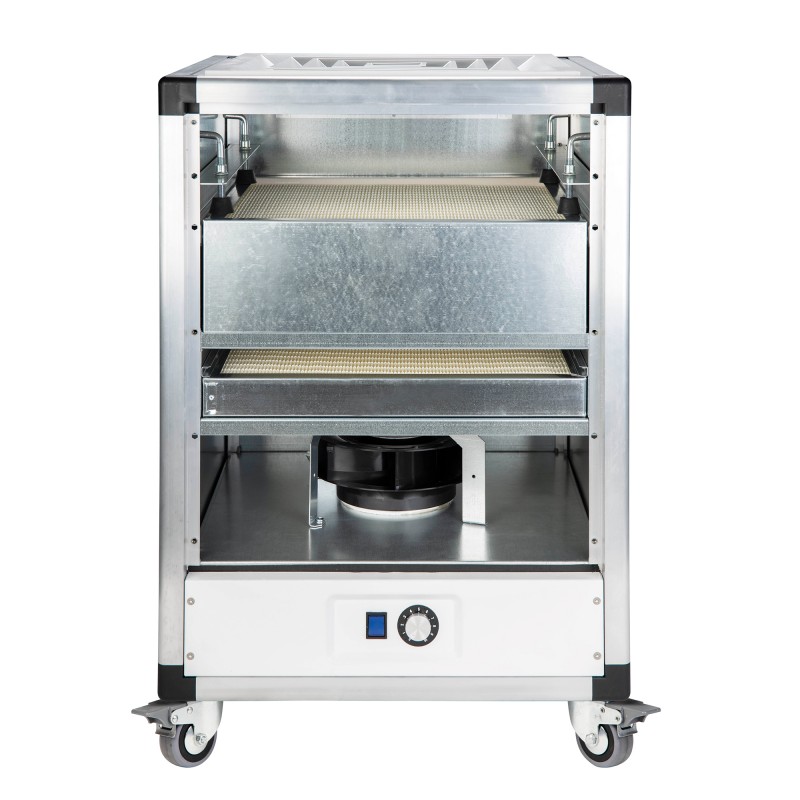

  • Access to filters and fan via the front face fixed by TORX screws.
  • H14 filter clamping system by screw and handle to ensure tightness.
  • 25mm sound insulation.
  • 4-way diffuser for omni-directional distribution.
  • Supplied with 4 casters, 2 of which are braked.
  • Supplied with a 230 V power cord with 2.5 m earth plug.

Filtration
  • Filter ePM1 55% (F7) according to ISO 16890 standard - Dimension 457 x 457 x 48 mm.
  • HEPA H14 filter Efficiency of 99.995% according to standard EN 1822 -Dimension 457 x 457 x 150 mm.
  • Activated carbon filter - metal mesh + absorbent material pellets - Dimension 457 x 457 x 18 mm.

Motorization
  • ECM electronically commutated motor.
  • IP44, single phase 230V, 50-60 Hz.
  • Reaction wheel.

Regulation
  • On / off switch.
  • 0-10 V potentiometer integrated in the lower part of the air purifier.

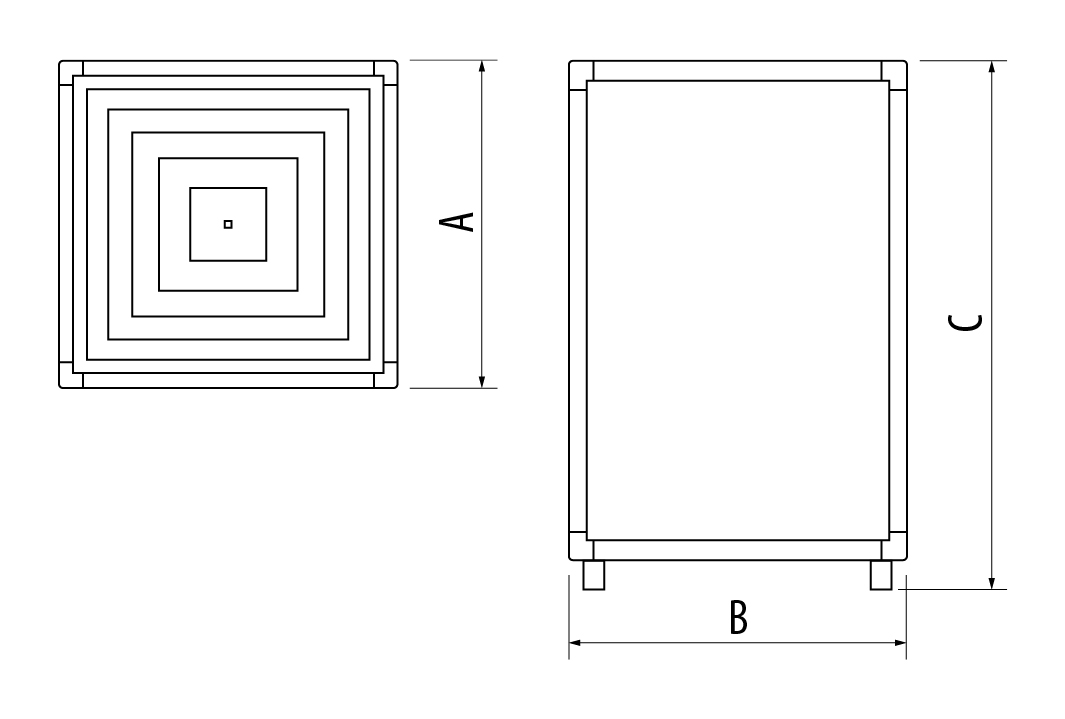

Model A B C Weigh (kg)t
PAP 850V H14 520 550 820 48
PAP 650V CA H14 520 550 820 52
