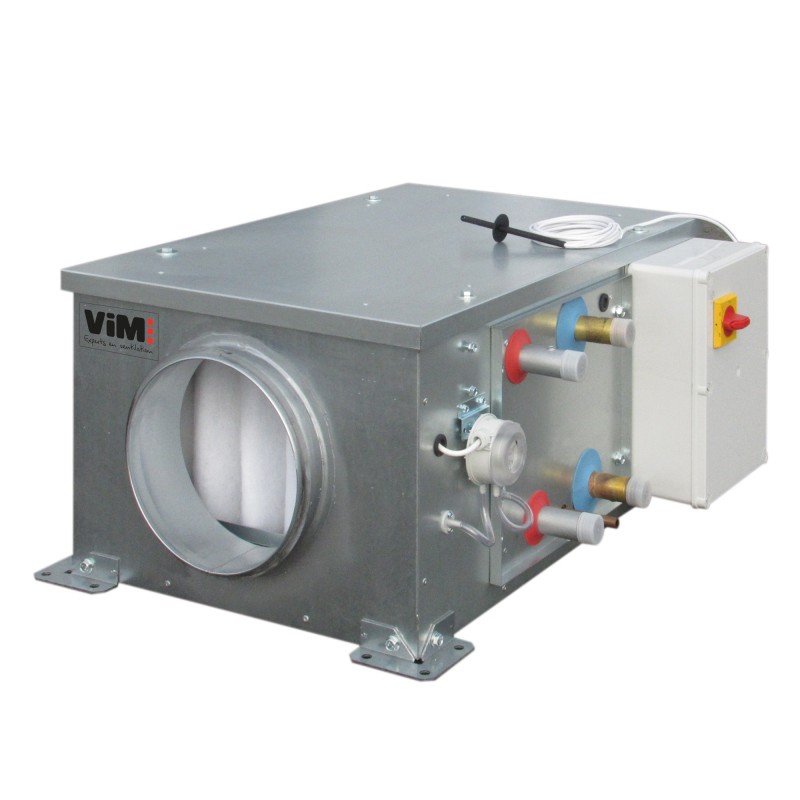

Old range
View larger

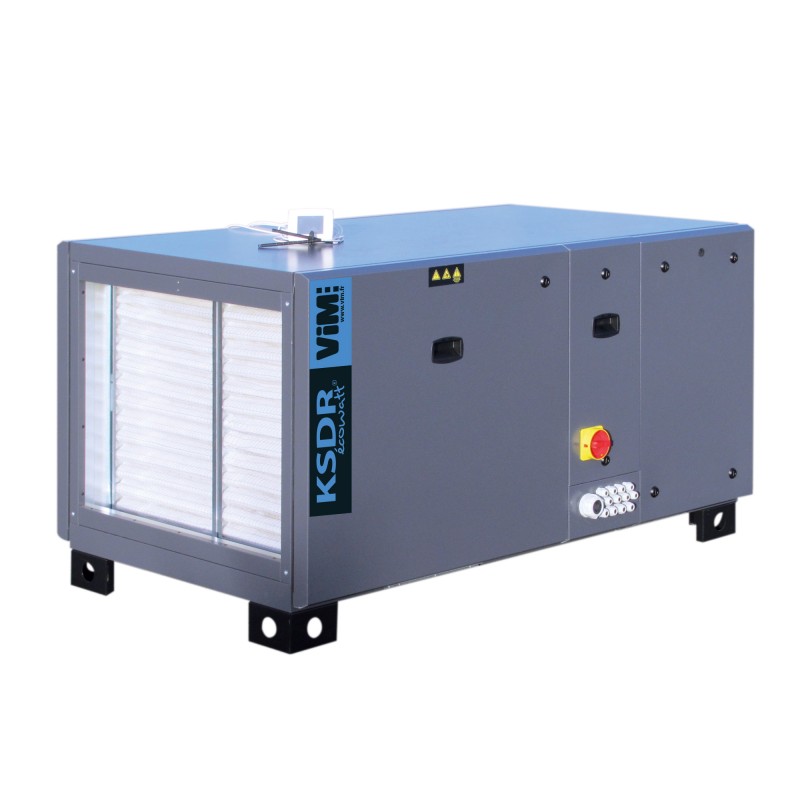

KSDR ECOWATT® 08 to 120
New product
 |
ErP - UVNR compliant | |||
 |
 |
 |
 |
 |
- Modbus and BACnet communicating regulation
- Batteries integrated in the air handling unit
- Freewheel reaction fan
- Double skin rock wool insulation 50 mm
- Low consumption ECM motor
Application
Introduction of fresh air, heating and / or cooling.
Installation indoors or outdoors.
Treated air temperature -25 to + 40 ° C.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
- Flow rates from 200 to 12,000 m3 / h.
- 7 monobloc sizes 08/18/28/38/48/88/120.
- 8 models according to the types of integrated batteries
- 3 operating modes: variable flow (VAV), constant flow (CAV), constant pressure (COP).
- Exterior with roof mounted:
- EXD : easement on the right,
- EXG : easement on the left.
- Interior without roof:
- D : easement on the right,
- G : easement on the left.
- Regulation by integrated CORRIGO PLC specific to VIM .
- Communicating Modbus RTU on RS485 or Modbus TCP / IP port, BACnet IP or MSTP, integrated webserver application on TCP / IP port.
- ETD remote touch control.
Construction
:
- Self-supporting structure in 50 mm double skin panels.
- Insulation by mineral rock wool th. 50 mm, density 40 kg / m3,
- thermal conductivity 0.037 W / (mk) (20/80 ° C).
- Fire classification A1 according to standard EN 13 501.1.
- Galvanized sheet steel reaction freewheel fan with integrated ECM motor.
- Switch mounted / wired.
- Easements to the right or left in the direction of the air.
- Bi-block structure in sizes 160 and 200 with a second box for the air treatment coils (water or electric). The power supplies for each box are separate.
- Unit delivered on feet, cross members or frame.
- Line construction, connection by rectangular tappings.
- Exterior finishes in grained galvanized steel, dark gray color RAL7024: corrosion resistance RC3, resistance to ultraviolet RUV3 according to EN 10169.
- Z275 galvanized steel interior finishes.
- Roofs mounted in EXD or EXG version.
- KSDR 120: integrated damper with all-or-nothing servomotor in the box between the filtration and the coils, for anti-freeze and / or anti-fire function CH 38 ERP. Optional damper for EI size 120 models.
Filtration:
- Standard filters: M5 mini-fold filters (ePM10 ≥75%).
- Optional additional filters:
- Sizes 48, 88 and 120:
- F7 HPE (High Energy Performance) miniplis (ePM1 ≥55%).
- F9 HPE miniplis (ePM1 ≥80%).
Regulation:

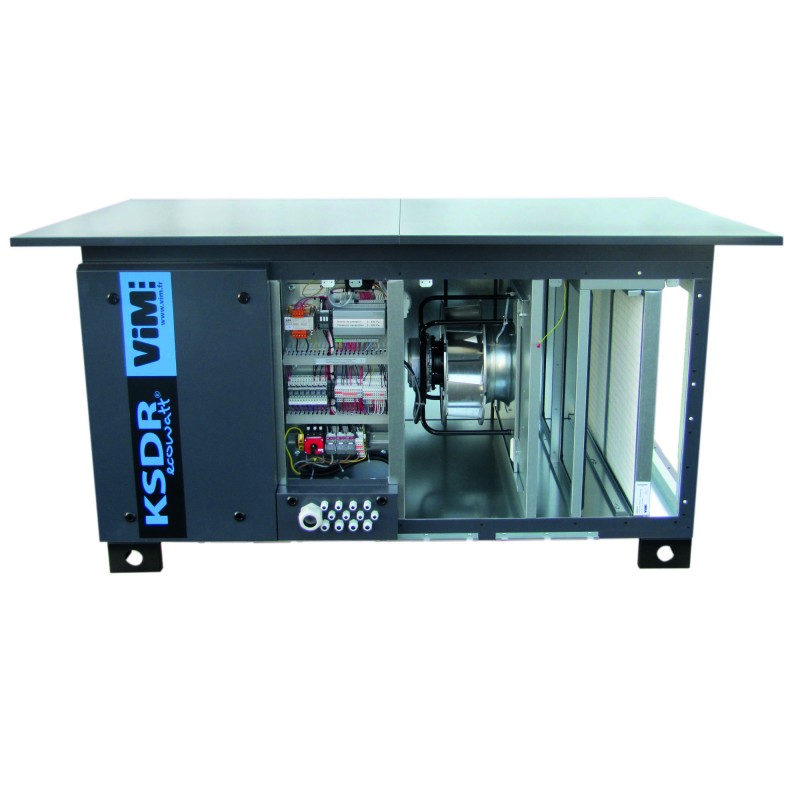

- CORRIGO mounted / wired control, integrated into the unit in a dedicated compartment, with remote touch control, allowing 3 operating modes:
Motorization:
- Freewheel type jet fan combined with an ECM electronically commutated motor.
- Single-phase or three-phase motor with thermal protection managed by electronics, control by 0-10V or ModBus:
- KSDR 48: Tri 400 V, 50 / 60Hz, IP54, class B.
- KSDR 88/120: Tri 400 V, 50 / 60Hz, IP54, class F.
EI electric batteries:
- 304L stainless steel resistors.
- Safety thermostats: automatic reset at 55 ° C, manual reset at 85 ° C.
- Pulse train control.
- Load shedding control possible according to the characteristics of the battery.
Hot water coils / reversible EC / ECF / ER / ERC:
- Coil 2, 3, 4, 6 or 8 rows according to models, with copper tubes, aluminum fins on a galvanized steel frame; threaded connecting tubes. Exit at the top of the collectors for full access (sizes 120 to 200).
- Connection to the right or left in the direction of air circulation.
- Frost protection by contact probe,
- Battery (s) mounted on slide accessible by side hatch.
- Stainless steel condensate pan and droplet separator if reversible.
- Motorized 3-way valve (24V) proportional by signal (0-10V), optional, not fitted.
EF / ECF cold water coils:
- 3 or 4 row coil depending on the model, with copper tubes, aluminum fins on a galvanized steel frame; threaded connecting tubes. Exit at the top of the collectors for full access (sizes 120 and 200).
- Connection to the right or left in the direction of air circulation.
- Battery (s) mounted on slide accessible by side hatch.
- Stainless steel condensate pan and droplet separator.
- Motorized 3-way valve (24V) proportional by signal (0-10V), optional, not fitted.
Direct expansion coil (EX) - (sizes 48 to 120) and EIX electric coil and direct expansion (sizes 48 and 88):
- Reversible coil 1 or 2 circuits on 2 or 3 rows for operation in condenser or evaporator.
- Copper tubes and collectors, aluminum fins, galvanized steel frame.
- Stainless steel condensate collection tray and droplet separator.
- The direct expansion unit is controlled by the 0-10V proportional hot or cold signal from the Corrigo. An input to signal the defrost of the direct expansion unit is provided on the Corrigo, to slow down ventilation. DX kit required to interface between the DX group and the air handling unit - Kit not supplied.
- EIX version: direct expansion coil preheating with independent and independent electric coil from Corrigo - 36kW in size 48 and 60kW in size 88. Adjustable set point.
- Regulation in COP mode not available with a direct expansion coil.
KSDR ECOWATT®
Model with EI electric heater - Straight service
KSDR ECOWATT® 48
Indoor model
Model with EI electric heater - Straight service
| Dimensions (mm) | AT | B | VS | D | E | F | G |
|---|---|---|---|---|---|---|---|
| KSDR 08 | 870 | 740 | 396 | 261 | 385 | 840 | 540 |
| KSDR 18 - 28 - 38 | 1170 | 895 | 546 | 495 | 615 | 1140 | 690 |
| Weight (kg) | EI | EC, EF or ER | ECF |
|---|---|---|---|
| KSDR 08 | 55 | 58 | 67 |
| KSDR 18 | 99 | 104 | 127 |
| KSDR 28 | 103 | 115 | 131 |
| KSDR 38 | 112 | 121 | 140 |
KSDR ECOWATT® 48
Indoor model
Right easement
KSDR ECOWATT® 48

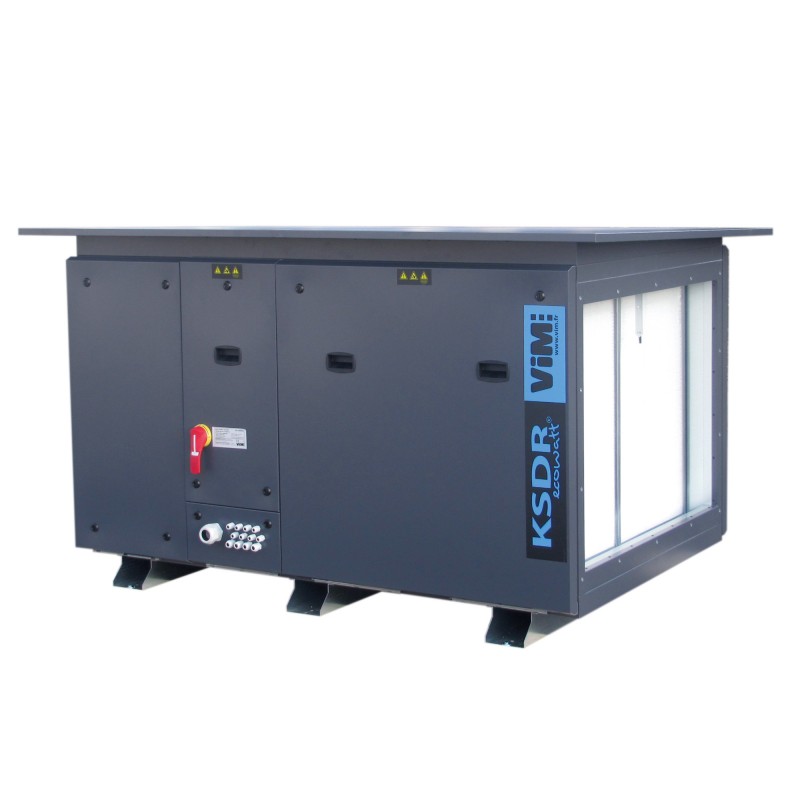

Outdoor model
Right easement
KSDR ECOWATT® 88 to 120
Indoor model
Right easement
KSDR ECOWATT® 88 to 120
Outdoor model
Right easement
|
Sizes |
AT |
B |
VS |
D |
E |
F |
G (except EI) |
G (EI) |
H |
I |
J |
K |
L |
M |
NOT |
O |
P |
Q |
|
|
48 |
1715 |
1000 |
800 |
620 |
925 |
100 |
100 |
65 |
840 |
650 |
150 |
869 |
- |
1415 |
1975 |
1175 |
1020 |
- |
|
|
88 |
1950 |
1315 |
1100 |
810 |
1165 |
100 |
100 |
65 |
1140 |
850 |
135 |
1284 |
161 |
611 |
2210 |
1485 |
1270 |
- |
|
|
120 |
2400 |
1315 |
1100 |
1100 |
1465 |
100 |
100 |
65 |
1140 |
1188 |
135 |
1284 |
197 |
802 |
2400 |
1485 |
1580 |
- |
|
|
(*): 6 crimped nuts in sizes 88 and 120, 16 nuts in size 160 and 18 in 200 |
|||||||||||||||||||
Installation instructions
Installation instructions (NT)
