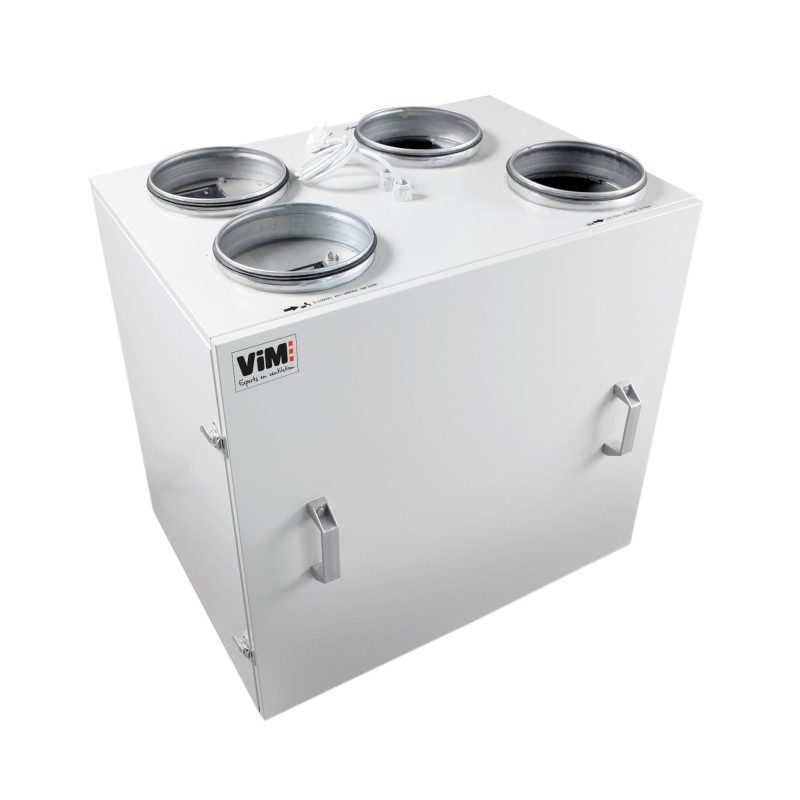

CAD HR MURAL PX FW 450 T

Old ranges

View larger

	ErP 2018 compliant - UVNR Variable EC motors						Filters Supplied as standard: Blowing fresh air and reprise stale air G4 (coarse 65%) As an accessory: Filter replacement kit with G4 filters (coarse 65%) for the reprise of stale air and F7 (ePM1 60%) at blowing.

Application

Air introduction and extraction with energy recovery in tertiary premises.
Indoor installation.
Vertical construction, connection on top.

Tertiary buildings

Buildings for catering

1 size up to 450 m³/ h.
TAC5 DM regulation: integrated screen and programming keys.
Communicating TAC5 regulation:
- Modbus RTU- RS485,
- Modbus TCP / IP,
- KNX TP,
- Wifi: smartphone application, tablet,
- Ethernet: PC application,
- BACnet gateway.

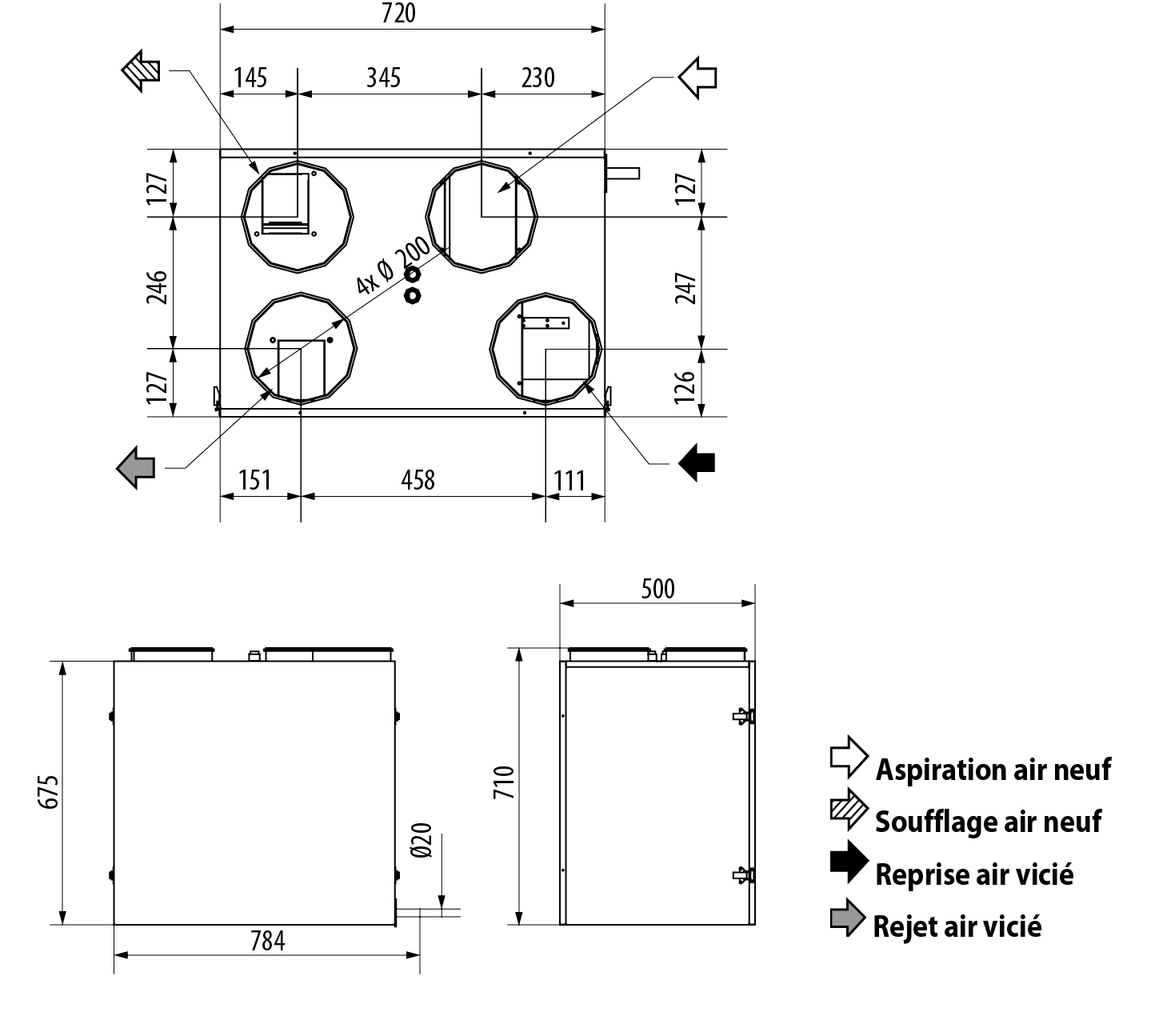

Construction

Box with self-supporting structure.
Double skin panel 15 mm thick with rock wool insulation (Euroclass A1) thermal conductivity 0.035W / (mk).
- External finish in prepainted steel of silicone heat-crosslinkable polyester type (5 μm primary + 20 μm polyester).
- Interior finish in galvanized steel.
Access to filters and exchanger from the main face using a removable panel.
Condensate collection tray with Ø 20 mm drain.
By-pass 50%.
Supplied with 3 probes mounted / wired for automatic management of the bypass and antifreeze protection.

Motorization

Single inlet action fan.
Low consumption, direct current, 230 V single-phase ECM motor. Electronic thermal protection - manual reset.

Exchanger

High efficiency air / air countercurrent heat exchanger made of aluminum for an operating temperature of up to 80 ° C. Thermal efficiency up to 92%.

Filters

G4 filters (coarse 65%) the extraction and introduction of air. Easily accessible from the main side.
As an accessory, filter replacement kit with G4 filters (coarse 65%) at extraction and F7 (ePM1 60%) on the air inlet.

TAC5 DM control unit ready to connect

SETTING THE FLOW RATES	RECOMMENDED APPLICATIONS
LS MODE - VARIABLE FLOW RATE
Fan speed variation by 0-10V signal
Flow rate setpoint according to a 0-10 V signal from an external sensor (CO2, temperature, hygrometry, etc.).	Single-zone installations, requiring adaptation of ventilation according to occupancy
AC MODE - CONSTANT FLOW
Fan speeds defined according to a precise flow rate
3 maximum constant flow setpoints, input of values with reading on display. Switching between the different setpoints carried out manually from the remote control or automatically by clock (not supplied) or presence detection.	Installations requiring the control of one or more precise flow rates.
CPs MODE - CONSTANT PRESSURE
Automatic variation of fan speed to maintain constant pressure
Flow automatically modulated in order to maintain a constant pressure value measured by an external probe (pressure probe as an accessory).	Multi-zone ventilation systems, associated with modulation of terminal airflows.

The operation of the exhaust fan is slaved to the supply fan. Its flow rate corresponds to a percentage of the flow rate of the supply fan (generally 100%).

Regulation accessories

HMI TACtouch 4.3 ”touchscreen, IP20, for parameter setting, control, visualization.
SAT3
- Signals the actual operation of the fan via a potential-free contact (relay normally open) (relay R3)
- Ex: authorization of operation of an external battery (post-ventilation function that can be programmed).
- Signals the alarm on a pressure variation (relay R2).
SAT TAC5 BA / KW
- Modulates the power of the batteries in order to maintain the supply temperature equal to the setpoint.
- Provides antifreeze protection for water coils.
- Gives a control contact for the circulator.
- Manages the hot / cold passage via a digital input.
- Allows the batteries to be switched off via a digital input.
