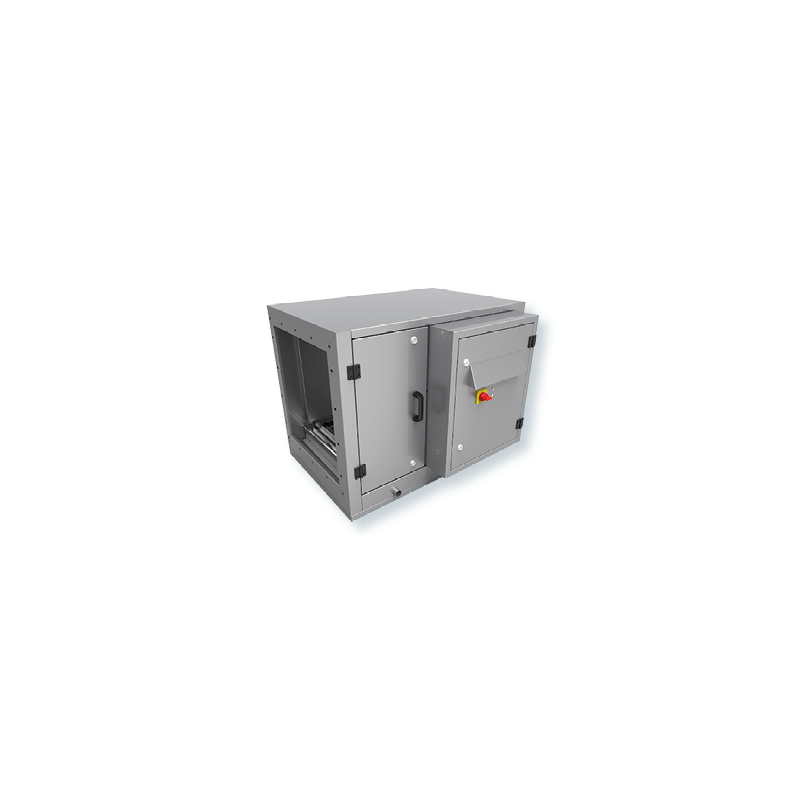

<span class="notranslate" dge="">VORAX® ESP</span> +

Old ranges

Boxes - ESP Precipitation - Range discontinued as of Dec. 1, 2021

View larger

<span class="notranslate" dge="">VORAX® ESP</span> +

Old ranges

Boxes - ESP Precipitation - Range discontinued as of Dec. 1, 2021

Technology proven in many European countries
Robust and waterproof modular enclosures
Reduction of discharge pollution and odors
Reduction of fouling of the extraction network

Application

Integration into the network before the exhaust fan.
Installation on the roof or in a technical room.
Reduction of odor nuisances, fouling of ducts and discharge areas.
Suitable for establishments located in dense urban areas.
For all types of cuisines including grill restaurants or fast food.

Buildings for catering

Description

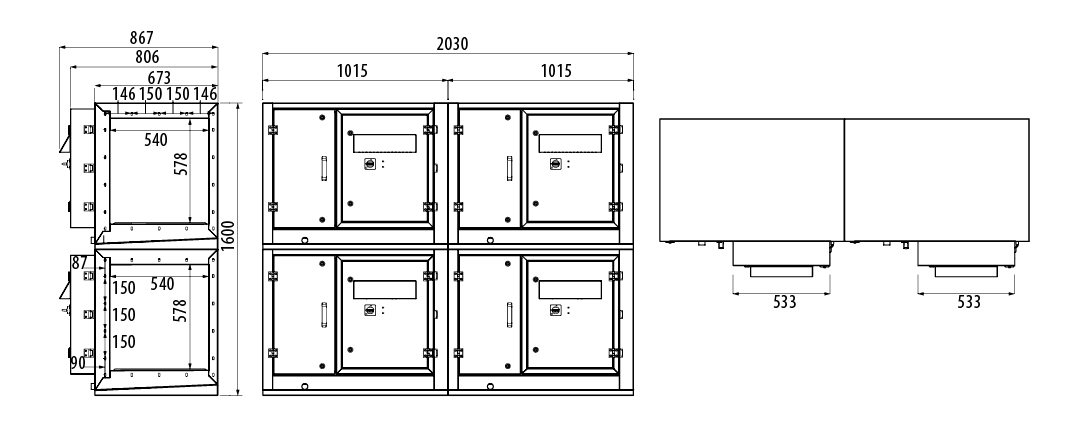

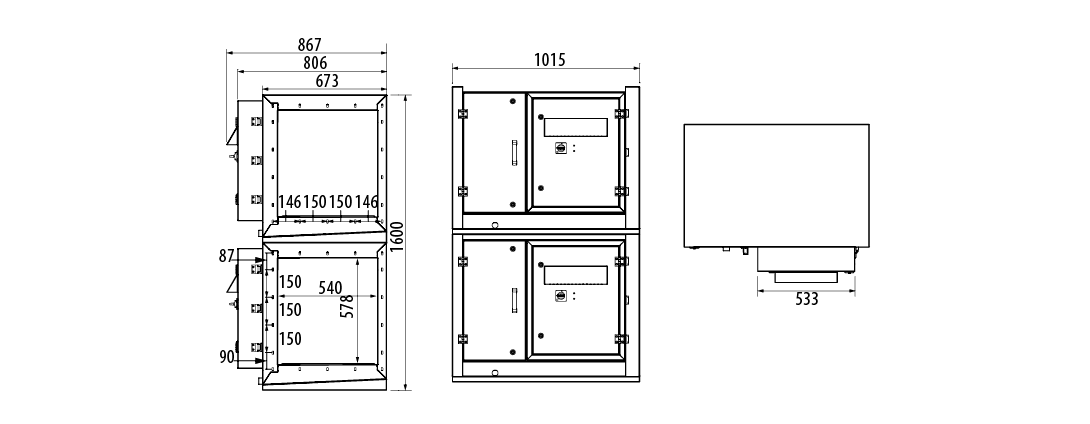

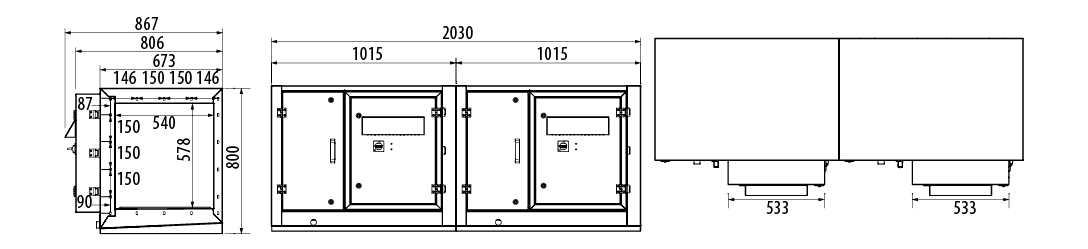

Dimensions
Documentation
Public Price
Software
References

VORAX® ESP +: Electrostatic precipitation filtration.
Flow rate from 4,320 to 25,908 m3 / h.
Robust painted steel box - evacuation drains.
Cylindrical electrostatic cells mounted on a rigid frame.
Removable assembly by side doors for periodic maintenance.
Integrated electrical cabinet - cell power supply / fouling indicator.
Passage speed up to 10 m / s.

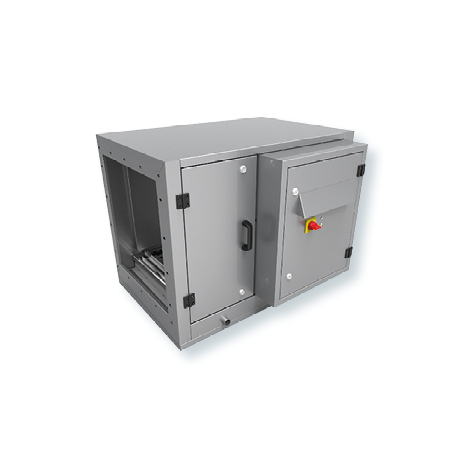

ESP + module

Robust painted steel box - purges.
Cylindrical electrostatic cells mounted on a rigid frame.
Removable assembly by side doors for periodic maintenance.
Integrated electrical cabinet - cell power supply / fouling indicator.
Passage speed up to 10 m / s.

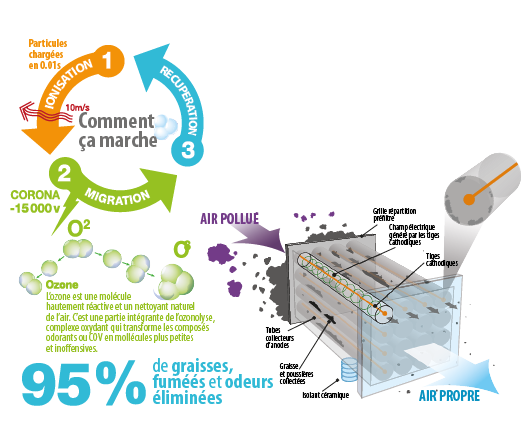

Principle of operation

This process allows filtering up to 95% particles larger than 5 nanometers (0.005 microns).
- A strong electrostatic field is created between a rigid wire (cathode) negatively charged and a collecting cylinder positively charged (anode). The solid particles (grease, dust, fumes, water vapor) are ionized during their passage and collected on the inside of the cylinder.
- Efficiency is improved by the production of ozone by negative corona (corona) discharge. A Corona discharge is an electrical discharge caused by the ionization of the medium surrounding a conductor. Corona discharges have many commercial and industrial applications and in particular the creation of ozone ensuring the filtering of particles contained in the air and the destruction of organic particles.
- For optimum ozone efficiency, it is necessary to provide a contact time with the exhaust air of 2 seconds.
- The cylinders are mounted in parallel to form a battery through which the polluted extract air passes.
The removable collector system must be cleaned periodically.

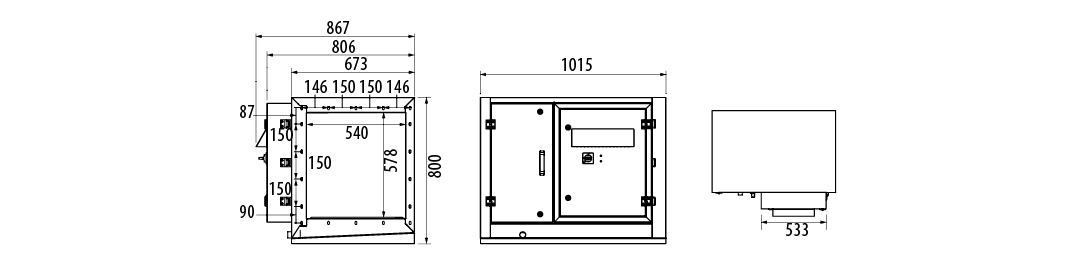

VORAX ESP + 12
