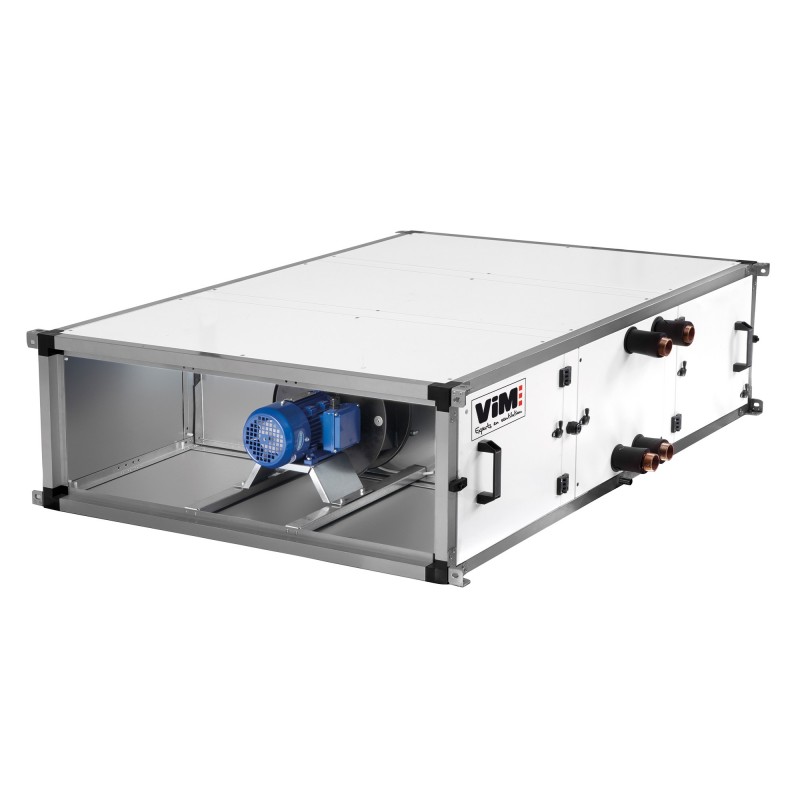

UTBS ECOWATT ® - UTBS ECOWATT ® PRO-REG
New product
 |
ErP 2018 - UVNR compliant |
Filters
|
|||||
 |
 |
 |
|||||
 |
 |
 |
|||||
- Extra flat central unit: height 360 to 500 mm
- Freewheel fans and low-power ECM motor
- Optional H14 HEPA filter
- Double skin with 25 mm glass wool insulation
- Flow rates from 500 to 8,000 m3/h
- Indoor and outdoor version
Applications:
Introduction of fresh air, heating, air conditioning.
Indoor or outdoor installation.
Offices, shops, education, toilets, leisure, accommodation, catering.
Floor or ceiling mounting.
Vertical airflow assembly for models without cooling coil.
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
4 sizes:
Additional boxes
UTBS PRO-REG
Construction
Equipment of the main box and additional boxes (UTBS models)
Filtration
Batteries
Motorized fans
Model UTBS PRO REG
Main box
- Size 2: height 360 mm
- Sizes 3 and 5: height 410 mm
- Size 8: height 500 mm
Additional boxes
- 2 or 3-way mixing boxes.
- Silencer 750 and 1,100 mm.
- Plenums.
- Electric battery boxes.
- Direct expansion and water coil boxes.
- Fan boxes with pressure tap and cable gland.
- Filter boxes with pressure taps.
- AHU delivered without frequency converter or regulation.
UTBS PRO-REG
- AHU delivered with frequency converter and wired mounted control:
- Variable flow (VAV)
- Constant flow (CAV)
- Constant pressure (COP)

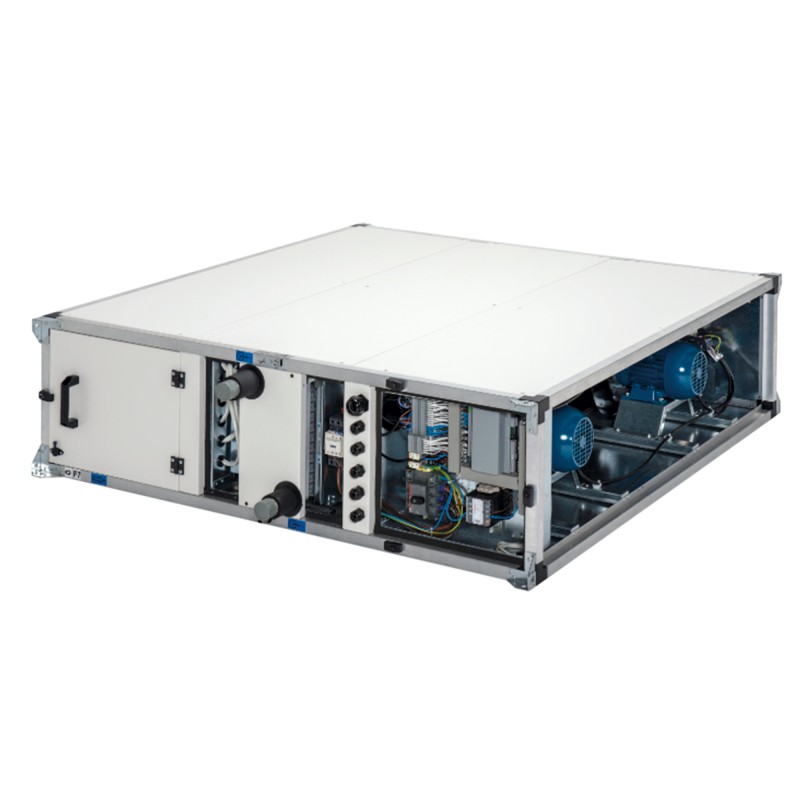

- Regulation by integrated CORRIGO PLC specific to VIM .
- Communicating ModBus on RS485 port and BacNet IP on TCP / IP port.
- ETD remote touch control.
Construction
- Frame in extruded aluminum profiles.
- Kit for fixing the boxes together consisting of a gasket and 4 sets of screws, nuts and washers.
- Double skin panels in galvanized steel coated with RAL 9010 exterior
- 25 mm mineral wool insulation, fire classification A1 according to standard 13 501.1 (non-combustible).

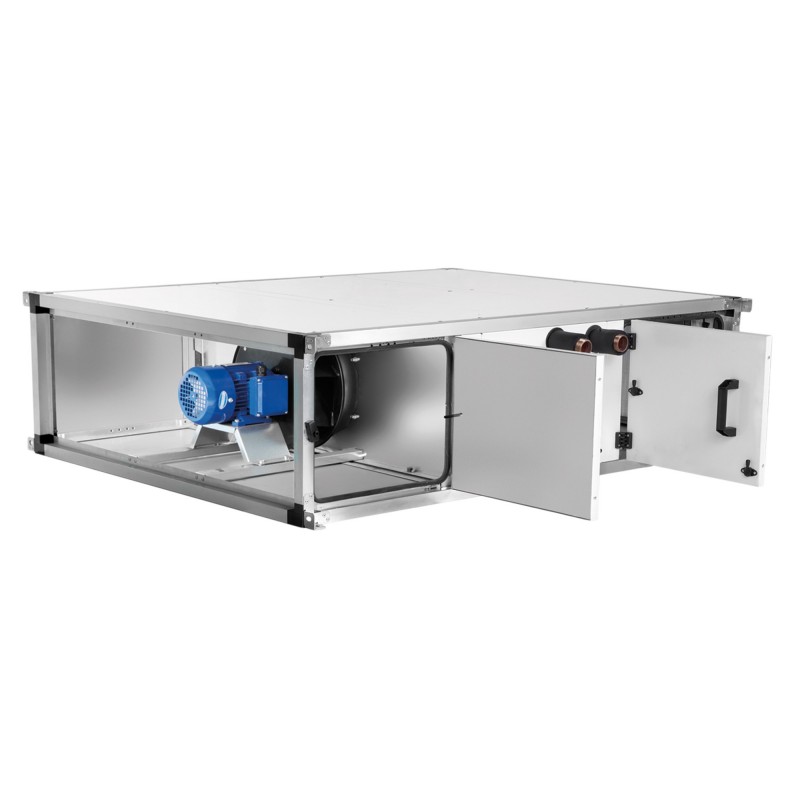

- Hinged doors for easy access to the control unit.
- Left or right easement.
- Suction and / or blowing ID registers.
- Roof and hood for outdoor versions.
Equipment of the main box and additional boxes (UTBS models)
Filtration
- Pre-filter (G4, M5 or M6) with pressure tap.
- Filter (M6, F7, F8 or F9) with pressure tap.

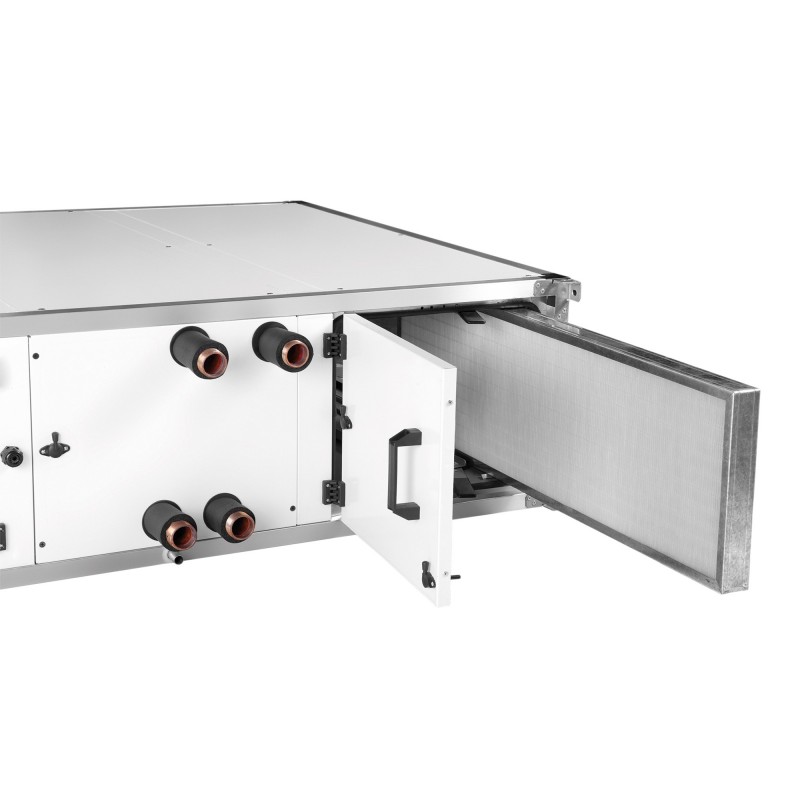

- F7 to F9 HPE (High Energy Performance) filters with a holding system made up of two tightening handles: perfect sealing with the frame and easy disassembly.
- Extraction of G4 and M5 filters on 4 sides: choice to be defined when ordering.
- Extraction of filters M6 to F9 on 2 sides: choice to be defined when ordering.
Batteries
- Hot water coils 2, 4 or 6 rows (galvanized frame, copper tubes and aluminum fins).
- 4 or 6 row cold or reversible water coils (galvanized frame, copper tubes, aluminum fins, 304 stainless steel condensate tray and droplet separator).
- Electric coils (galvanized frame and armored resistances) with manual and automatic reset protections, as well as an anti-radiation screen.
Motorized fans
- Dynamically balanced reaction freewheels with direct coupling to the motors.
- Foot-mounted motors B3, 1 speed three-phase 230 / 400V, 50Hz, IP54, class F, IE1 up to 0.55 kW, IE2 beyond, with integrated thermal protection with closed contact at rest (PTO).
- Motor powers from 0.25 kW to 1.1 Kw.
Model UTBS PRO REG
Main box
- M5 pre-filter or F7 filter as standard with pressure tap.
- Optional pre-filter G4 or M5 before filter F7, filters F6 to F9 optional.
- 2 or 4 row hot coils.
- A 2-way mixing box.
- UTBS-2: 0.55kW,
- UTBS-3: 0.75kW,
- UTBS-5: 2 x 0.75kW,
- UTBS-8: 2 x 1.1kW.
- The integrated regulation allows 3 operating modes: variable flow (VAV), constant flow (CAV), constant pressure (COP)
- The regulation manages a 2-way mixing box according to the fresh air and return air temperatures, a slave fan.
- The UTBS is supplied in CAV constant flow control mode. Provide the TDPD pressure probe for use in COP constant pressure regulation mode, a 0-10V probe for VAV variable flow control.
Main box

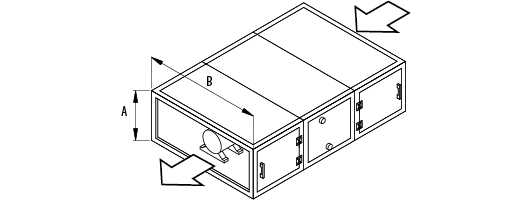

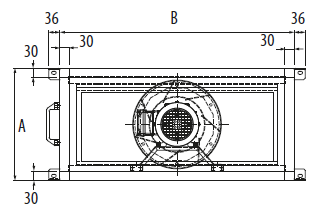

Main cabinet configurations
Left easement as standard (seen in the direction of the air)
|
UTBS 2 |
UTBS 3 |
UTBS 5 |
UTBS 8 |
|
|
A (mm) |
360 |
410 |
410 |
500 |
|
B (mm) |
750 |
1100 |
1500 |
1900 |
Unit lengths depend on configurations, see dimensions below.
Main cabinet configurations
BC2: Hot coil 2 rows;
BC4: 4-row Hot Coil;
BF4: Cold coil (or reversible) 4 rows;
BF6: Cold coil (or reversible) 6 rows;
X4: 4-row direct expansion coil;
X6: 4-row direct expansion coil;
BE: Electric Battery;
V: Fan;
G4: G4 filter;
F7: Filter F7;
* Configurations available with simultaneous hot and cold coils (up to 8 rows).
|
Main box weight |
|||||
|
Components |
UTBS 2 |
UTBS 3 |
UTBS 5 |
UTBS 8 |
|
|
Motor-fan |
0.25 Kw |
16 |
20 |
40 * |
46 * |
|
0.37 kW |
17 |
21 |
42 |
48 |
|
|
0.55 kW |
18 |
22 |
44 * |
50 * |
|
|
0.75 Kw |
25 |
50 * |
56 * |
||
|
1.1 Kw |
58 * |
||||
|
Filters |
G4 / M5 |
2 |
4 |
6 |
8 |
|
F7 / F9 |
4 |
6 |
8 |
10 |
|
|
Batteries |
BC2 |
6 |
9 |
12 |
12 |
|
BC4 / BF4 / X4 |
9 |
13 |
18 |
26 |
|
|
BC6 / BF6 / X6 |
11 |
18 |
24 |
36 |
|
|
BE |
6 |
9 |
12 |
14 |
|
|
Casing |
750 mm |
35 |
50 |
60 |
75 |
|
969 mm |
45 |
60 |
75 |
95 |
|
|
1205 mm |
55 |
75 |
95 |
120 |
|
|
1455 mm |
70 |
90 |
115 |
145 |
|
* The indicated weight includes the 2 motor-fans
