KSDA
Old ranges
Compact - Action <4,000 m3 / h - Range shutdown 01/01/17
View larger

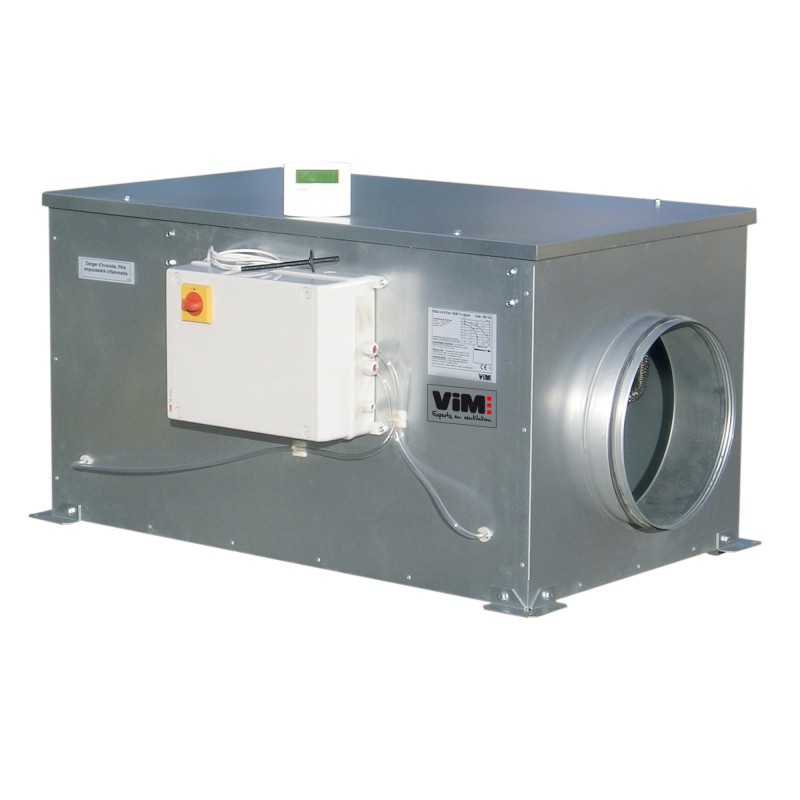

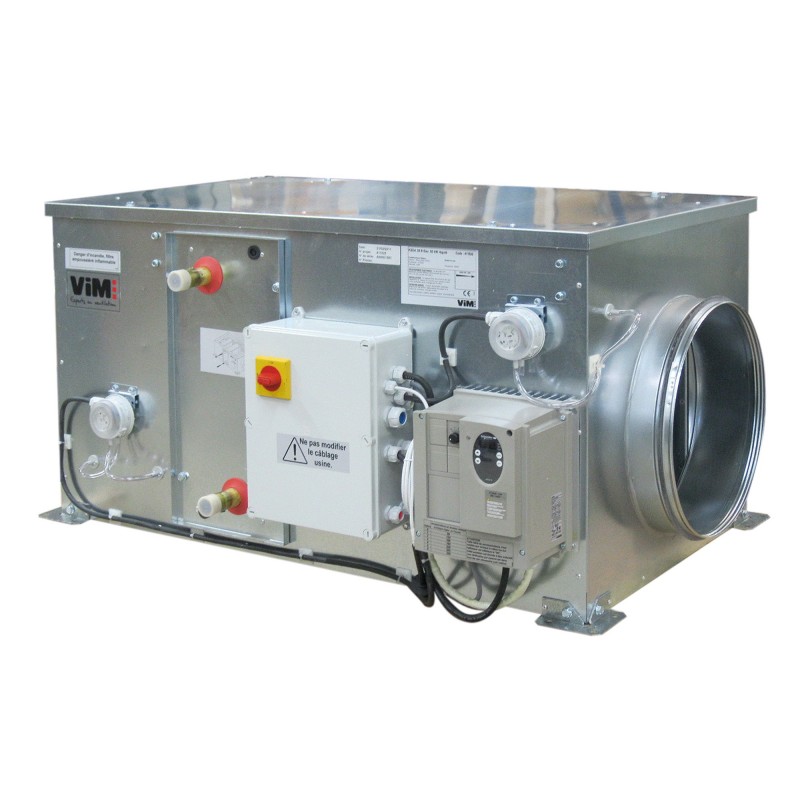

KSDA
New product
 |
 |
 |
 |
- Integrated electronic regulation
- Monobloc casing, circular in-line connection
- Integrated electric or water coil
- 50 mm insulation, thermal and acoustic
- Very low noise level
Application
Introduction of fresh air, heating, air conditioning.
Installation inside buildings or on the terrace.
Reversible mounting for internal access from above or below, floor or ceiling mounting.
Treated air temperature: -20 ° C to + 40 ° C.
Order online
-
Description
-

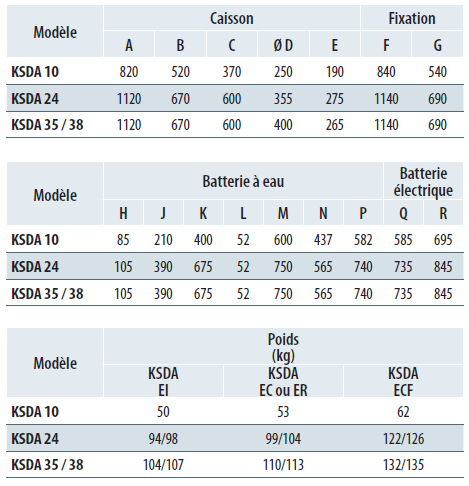

Dimensions
-
Documentation
-
Public Price
-
Software
-
References
- 5 sizes: 10/24/35/38.
- Flow rates from 50 to 3,800 m3/ h.
- 4 models:
- EI: electric heater (single-phase or three-phase),
- EC: hot water coil,
- ER: reversible water coil,
- ECF: hot water coil + chilled water coil.
- Configurations: Regulation by integrated CORRIGO PLC specific to VIM .
- EXD: outdoor version, right-hand servitudes,
- EXG: outdoor version, easements on the left.
- Regulation by integrated CORRIGO PLC specific to VIM .
- Communicating Modbus RTU as standard, BACnet / IP as an option.
Construction
- Soundproofed galvanized sheet steel box with reinforced insulation:
- Rock wool panels 50 mm thick.
- Density 70kg / m3, covered with a high speed woven veil.
- Fire classification: M0 or A2 s1 d0 according to standard EN 13 501.1.
- 4 suspension / fixing brackets supplied.
- In-line construction, circular branch connection with gaskets.
- Pleated filter G4, or M5, or F7 HPE (High Energy Performance) optional integrated in the box on slide.
- Secure access cover when the box is fixed to the ceiling.
- Centrifugal fan, galvanized sheet steel impeller with integrated motor.
- Switch mounted / wired depending on model.
- Access and connection on the right as standard.
Electric batteries:
- 304L stainless steel resistors.
- Safety thermostats: automatic reset at 75 ° C, manual reset at 120 ° C.
Water coils:
- Construction of copper tubes, aluminum fins on a galvanized steel frame; threaded connecting tubes.
- Connection on the right in the direction of air flow.
- Battery (s) mounted on slide accessible by side hatch.
- Stainless steel condensate pan, droplet separator.
Motorization
- KSDA 10: IP20 motor, class F, integrated thermal protection, 1 speed, single phase 230V, 50Hz.
- KSDA 24/35: IP55 motor, class F, integrated thermal protection, 1 speed, single phase 230V, 50Hz.
- KSDA 38: IP20 motor, class F, integrated thermal protection, 1 speed, three-phase 230/400 V, 50Hz.
KSDA EI: Electric heater
Regulated version
KSDA EC: Hot water coil
KSDA ER: Reversible water coil
Regulated version
KSDA ECF: Hot water coil + chilled water coil
Regulated version
Regulated version

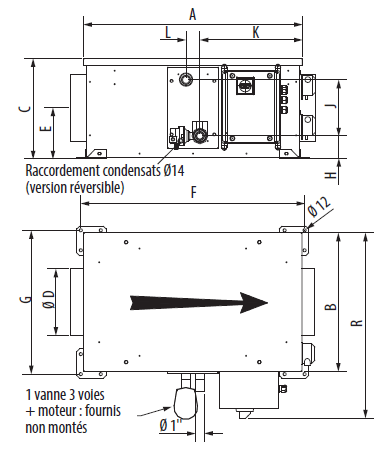

KSDA EC: Hot water coil
KSDA ER: Reversible water coil
Regulated version

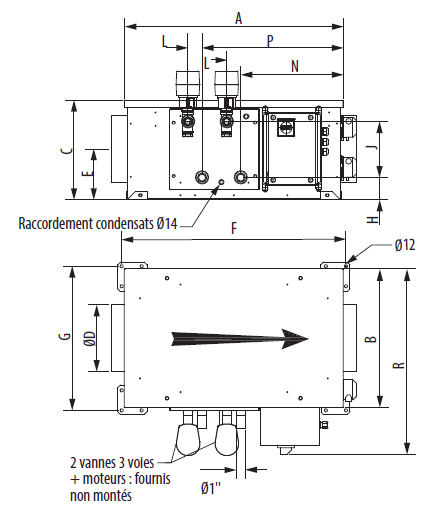

KSDA ECF: Hot water coil + chilled water coil
Regulated version
Detailed specifications
Text catalog pages (CT)
Installation instructions
Installation instructions (NT)
Installation instructions (NT) Other
