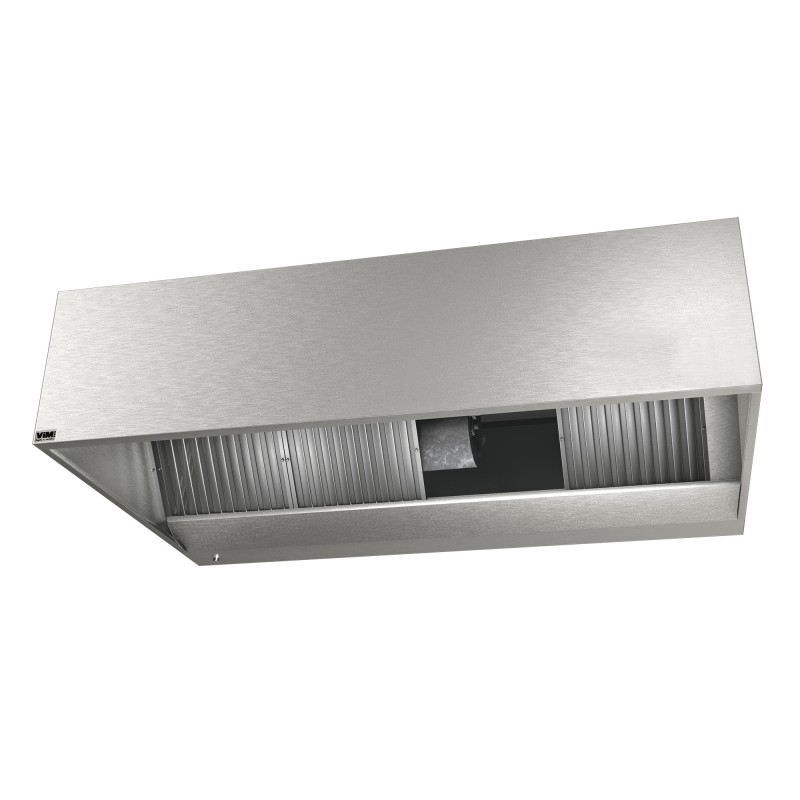

VORAX® LAUNDRY G

Laundry hoods

Simple capture - Motorized

VORAX® LAVERIE G View larger

VORAX® LAUNDRY G

Laundry hoods


Simple capture - Motorized

OPTAIR® Cuisine Moteur ECM

  • Motorized hood, AC or ECM motors, compact and rigid
  • 4 visible sides in AISI 304L stainless steel, brushed SB finish
  • Equipped with shock filters for steam condensation
  • Constant height vertical sloping hood
  • Vertical discharge
  • Cheeks without visible marks
Application

Capture, extraction and filtration of heat and low-fat water vapor released by dishwashers.

Buildings for catering

Buildings for catering
CAD / BIM

CAD / BIM


Order online Order online

  • Description

  • Dimensions

  • Documentation

  • Public Price

  • Software

  • References

Simple back-to-back.
Monobloc modules of length 1000, 1500, 2000, 2500 and 3000 mm.
Extensions of depth 1000, 1250, 1500 or 1750 mm.
Height of 500 mm: 6 motorizations : AC 2500 m3/h, AC 2800 m3/h, AC 3100 m3/h, AC 3500 m3/h, ECM 3200 m3/h or ECM 3500 m3/h.
Height of 400 mm: 2 motorizations AC 2500 m3/h and ECM 3200 m3/h.
Dimensions and finishes identical to the models: CHEF, CONFORT, FOUR, LAVERIE and INDUCT from the VORAX® range.
Hood
  • Hood at constant height for a maximum compartment volume.
  • Self-supporting construction without visible fixing or sharp edges for cleaning without risk of cuts.
  • Lateral reinforcements, in 15/10th galvanized steel height 50mm, integrated into the hood, ensuring the rigidity of the whole.
  • Leveling adjustment from inside the hood and clip-on mounting covers.
  • 4 visible faces in AISI 304L (1.4307) austenitic stainless steel with SB brushed finish allowing inverted or central mounting.
  • Top face in galvanized steel.
  • Cheeks without visible marks such as rivets and studs.
  • M0 stainless steel impact filters 397x472x25 mm.
  • Perimeter gutter.
  • Stainless steel purge and plug - 1/2 ”gas thread.
Fan
  • Double inlet fan with external rotor motor incorporated in the turbine.
  • Motor IP 44 or 55 class F, mono 230 / 50Hz equipped with thermal protection type Klixon (conforms to art CH 32).
  • IP55 waterproof electrical connection box.
  • Vertical discharge.
  • 6 motorizations : AC 2500 m3/h, AC 2800 m3/h, AC 3100 m3/h, AC 3500 m3/h, ECM 3200 m3/h or ECM 3500 m3/h.
Packaging
  • Crate in heat-shrinkable film.
  • Stainless steel exterior faces protected by PVC film.
VORAX® LAVERIE G

25 mm filter - Optional lighting - Recommended ferrule plates Ø 315 to 400 mm
Underlined = dimensions of model 400 - Not underlined = model 500



Module

Total length

Capture length

Number of extraction holes

D

E

Advanced 1000

Advanced 1250

Advanced 1500

Advanced 1750

F

G

F

G

F

G

F

G

1000

1004

1000

1

968

920

185

655

310

655

560

655

810

655

1500

1504

1500

1

1468

1420

185

1265

310

1265

560

1265

810

1265

2000

2004

2000

1

1968

1920

185

1265

310

1265

560

1265

810

1265

2500

2504

2500

1

2468

2420

185

1265

310

1265

560

1265

810

1265

3000

3004

3000

1

2968

2920

185

1265

310

1265

560

1265

810

1265

Close Open Detailed specifications

Text catalog pages (CT)

CT-VORAX-LAVERIE-G.pdf Add to your cart CT-Mars25-VORAX® LAUNDRY G

Close Open Public tariff price

Price catalog pages (CP)

CP-VORAX-LAVERIE-G.pdf Add to your cart CP-Mars25-VORAX® LAUNDRY G

Close Open Installation instructions

Installation instructions (NT)

NT00000356-VORAX-LAVERIE-G.pdf Add to your cart NT00000356-VORAX-LAVERIE-G-211209
NT00000349-VORAX-LAVERIE-G-VARI.pdf Add to your cart NT00000349-VORAX-LAVERIE-G-VARI-211209

Close Open Electrical / ATEX Certificates

Electrical CE Declarations (DCCE)

pdf Add to your cart DCCE_VORAX-BASIC-BASICG-CHEF-CHEFG-FOUR-FOURG-LAVERIE-LAVERIEG-PREMIUM-PREMIUMG-NOVAX-CHEF_161007 Media locked

Close Open Prescription assistance

Specification text (TP)

docx Add to your cart TP-VORAX-LAUNDRY-G-210326 Media locked

Close Open Commercial documents

Commercial leaflet (FCOM)

pdf Add to your cart FCOM-CUISINES-250113
OPTAIR Kitchen
Download OPTAIR Cuisine Media locked
NEW - Software for calculating flow rates and sizing hoods in professional kitchens
OPTAIR CUISINE must be completely re-installed.

For any operating problems, please send your request by email to optair@vim.fr
  • Calculation of extraction, compensation and induction flow rates in the kitchen according to standard NF EN 16282-1.
  • Automatic sizing of hoods according to standard NF EN 16282-2.
  • Integrates different collection systems (standard hoods, welded hoods, UV welded hoods, filtering ceilings, hoods with capture only, inductive curtain, etc.)
  • Takes into account the characteristics of the cooking appliances, the efficiency of the capture system, the mode of fresh air diffusion and numerous installation parameters.
  • Presents the products and systems offered by VIM in professional kitchens with links to catalog pages, prescription texts and installation instructions.
