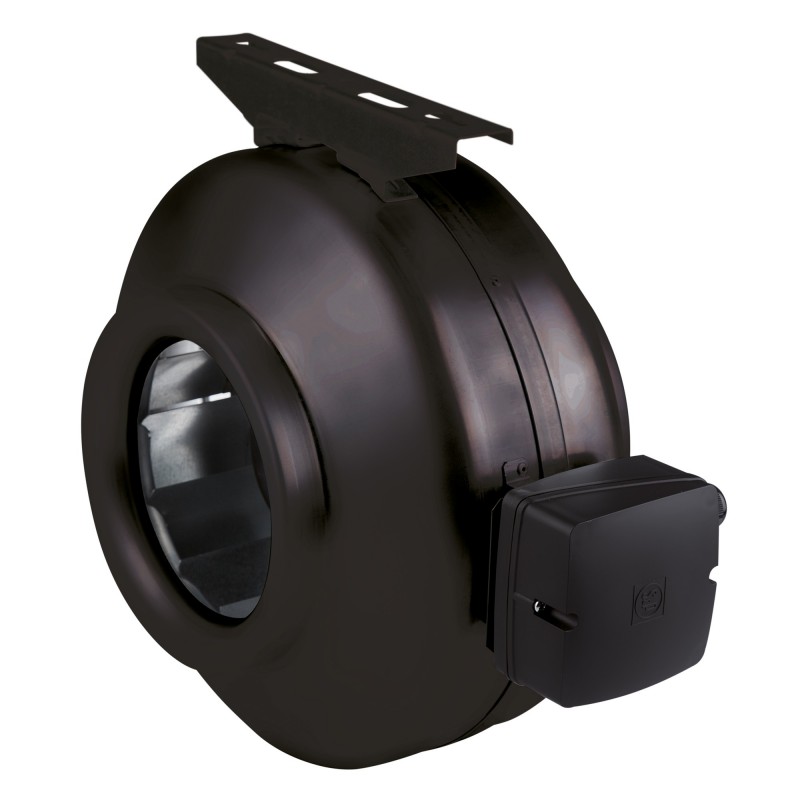

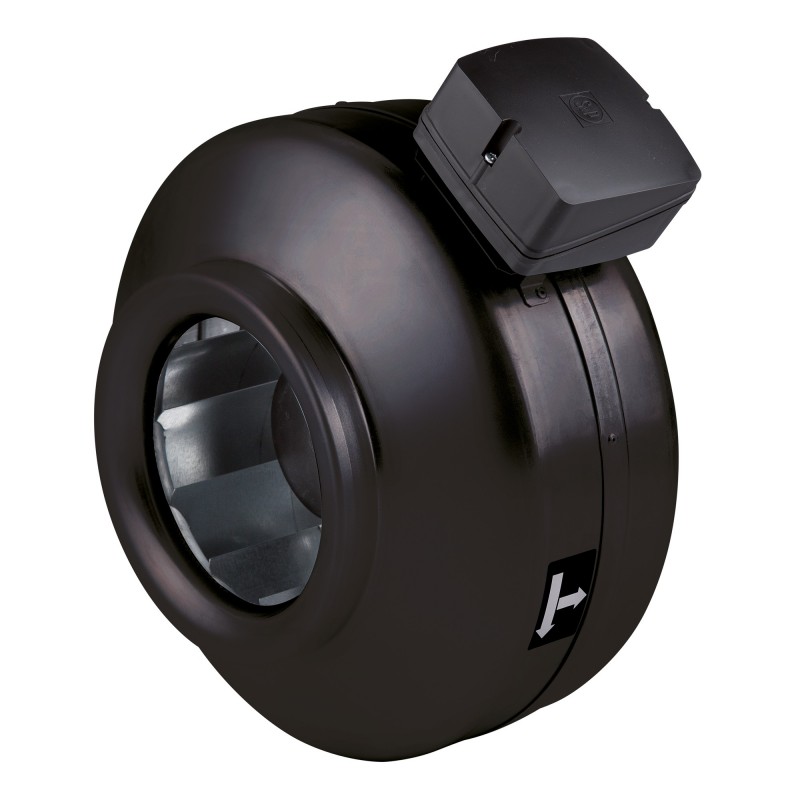

ECOWATT WIND
In-line fans
Circulars - Centrifugal - ECM < 3000 m3/h
View larger
ECOWATT WIND
New product
 |
ErP 2018 compliant - UVNR Variable EC motor |
 |
 |
- Low consumption ECM motor
- Mounting in circular ducts
- Works in all positions
- Built-in potentiometer
Application
Extraction or insufflation.
Indoor installation.
Airflow temperature from -20°C to +40°C.
CAD / BIM
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
8 sizes: Ø 100 to Ø 400 mm.
Flow rates: from 150 to 3,000 m3/h.
Construction
Motorization
Piloting
Standard fan selection
Flow rates: from 150 to 3,000 m3/h.
Construction
- Z275 galvanized steel casing, black polyester paint finish. Completely waterproof assembly.
- Centrifugal reaction turbine in polyamide (VENT 100 to 250 ECOWATT) or metal (VENT 315 to 400 ECOWATT).
- Supplied with mounting feet or mounting bracket unassembled.
Motorization
- ECM electronically commutated motor, IP44, very high efficiency, single-phase 230V/50-60Hz, thermal protection managed by electronics with manual reset.
- Potentiometer integrated into the electrical connection box.
Piloting
| PILOT AGE MOT 1 SPEED ECM MONO 230V | |
| Mode of operation | Electrical accessories |
| Manual - Internal Potentiometer | Integrated as standard |
| Manual - External Potentiometer | CVF / REB ECOWATT |
| Manual - 4 position selector | SMTD |
| CAV - Constant Flow Regulation | RMEC or RMED + SMMR |
| VAV- Control according to external measurement | BEAS or RMEC or RMED + Probes |
Standard fan selection
VENT ECOWATT Ø 100 to 315
VENT ECOWATT Ø 355 to 400
|
Model |
A |
B |
C |
D |
Kg |
|
VENT 100 ECOWATT |
251 |
23 |
243 |
98 |
4 |
|
VENT 125 ECOWATT |
253 |
27 |
243 |
123 |
4 |
|
VENT 160 ECOWATT |
222 |
28 |
333 |
157 |
5 |
|
VENT 200 ECOWATT |
223 |
25 |
333 |
198 |
5 |
|
VENT 250 ECOWATT |
206 |
27 |
333 |
248 |
6 |
|
VENT 315 ECOWATT |
230 |
25 |
401 |
312 |
8 |
|
VENT 355 ECOWATT |
410 |
25 |
508 |
354 |
17 |
|
VENT 400 ECOWATT |
441 |
25 |
568 |
399 |
22 |
VENT ECOWATT Ø 355 to 400
|
Model |
D2 |
E |
F |
G |
H |
I |
|
VENT 355 ECOWATT |
314 |
565 |
100 |
170 |
587 |
11 |
|
VENT 400 ECOWATT |
354 |
625 |
100 |
185 |
647 |
11 |
