VENT NK - WIND VN
In-line fans
Circular - Centrifugal - AC < 3,000 m3/h
View larger
VENT NK - WIND VN
New product
 |
ErP 2018 compliant |
 |
- Extraction or insufflation
- Operation in all positions
- VENT NK : duct mounting
- VENT VN: mounting on plate
Application
Extraction or insufflation, inside the premises.
VENT NK : network installation.
VENT VN: installation at the end of the network on a horizontal or vertical plane.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References

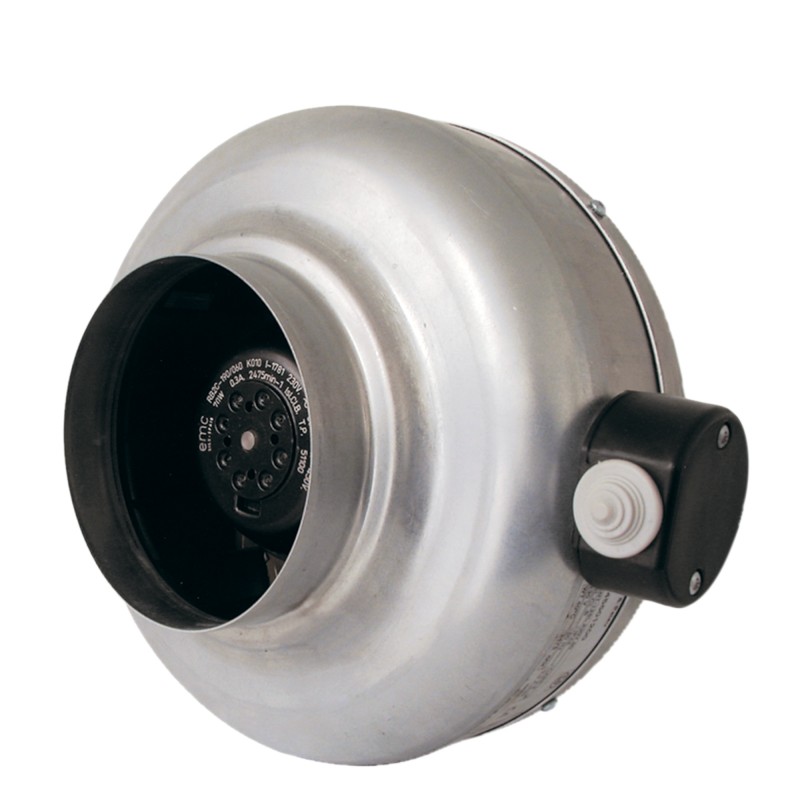

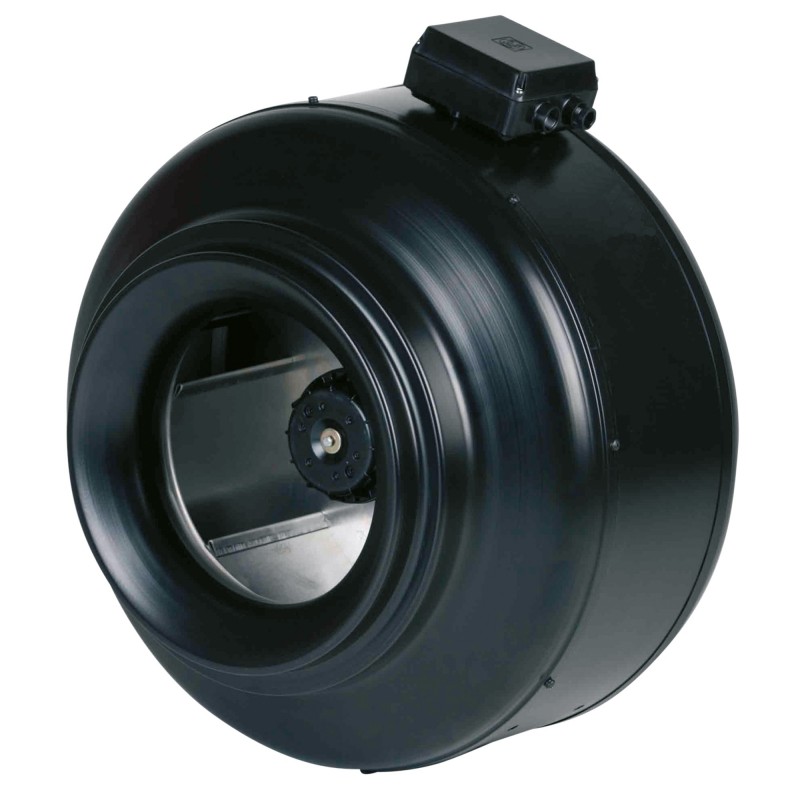

VENT NK : circular duct fan

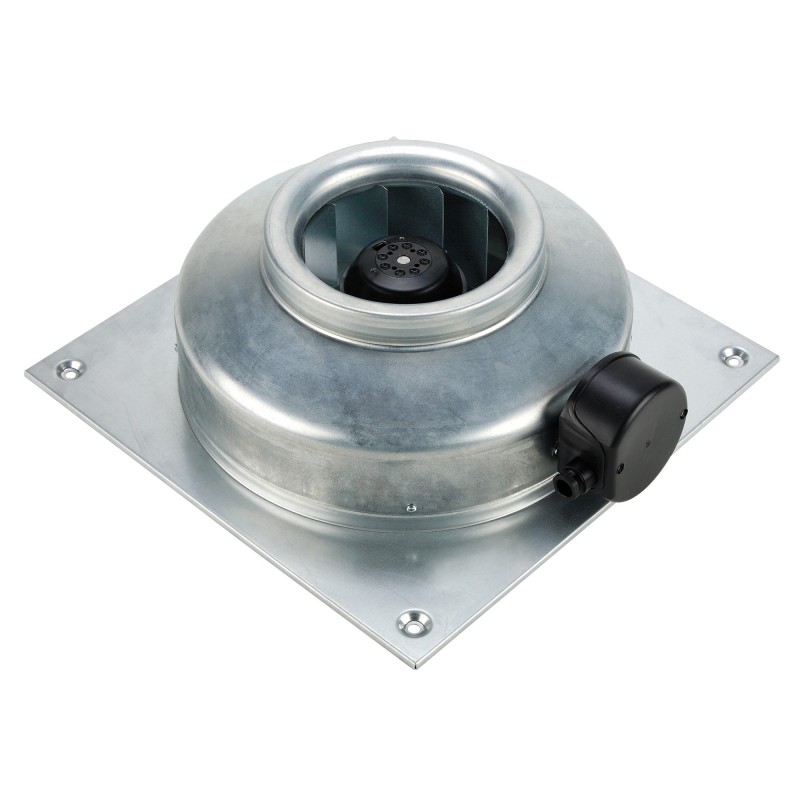

VENT VN: circular platinum fan
Construction
Motorization
Standard fan selection
-
- Flow rates from 100 to 3,000 m3/h.
- VENT NK : single-phase high pressure
- 8 sizes: Ø 100 / 125 / 160 / 200 / 250 / 315 / 355 / 400 mm.
- VENT NT: three-phase
- 2 sizes: Ø 355 / 400 mm,
VENT VN: circular platinum fan
- Flow rates from 100 to 1,200 m3/h.
- Single-phase high pressure
- 6 sizes: Ø 100 / 125 / 160 / 200 / 250 / 315 mm.
Construction
- Envelope made of Z275 galvanized steel sheet.
- Black polyester paint finish casing for VENT 355/400 N models (single-phase or three-phase version).
- Centrifugal reaction turbine in polyamide (VENT 100 to 250 N, VENT 100 to 250 VN) or metal (VENT 315 N, VENT 315 VN and VENT 355 and 400 N).
- Supplied with mounting feet (Ø 100 to 315 mm) or mounting bracket (Ø 355 or 400 mm) not assembled.
Motorization
- External rotor AC motor, IP44, class B, integrated thermal protection with manual reset:
- 1 speed single-phase 230V, 50-60Hz: WIND 100 to 250 NK.
- External rotor AC motor, IP44, class F, integrated thermal protection with manual reset:
- 1 speed single-phase 230V, 50-60Hz: VENT 315 NK and VENT 100 to 315 V N.
- External rotor AC motor, IP54, class F, integrated thermal protection with manual reset:
- 1 speed single-phase 230V, 50-60Hz: VENT 355 and 400 N models.
- 1 speed three-phase 230/400V, 50Hz: VENT 355 and 400 N T models.
- Outdoor terminal box.
Standard fan selection
VENT NK 100 to 315
VENT N 355 and 400
VENT N 355 and 400
|
Model |
A |
B |
C |
D |
|
VENT 100 NK |
195 |
23 |
243 |
98 |
|
VENT 125 NK |
197 |
27 |
243 |
123 |
|
VENT 160 NK |
220 |
27 |
333 |
157 |
|
VENT 200 NK |
223 |
25 |
333 |
198 |
|
VENT 250 NK |
205 |
27 |
333 |
248 |
|
VENT 315 NK |
232 |
25 |
401 |
312 |
|
Model |
A |
B |
C |
D |
D2 |
E |
F |
G |
H |
J |
|
VENT 355 N* |
410 |
25 |
508 |
354 |
314 |
552 |
100 |
170 |
587 |
10.5 |
|
VENT 400 N* |
431 |
25 |
508 |
399 |
354 |
628 |
100 |
185 |
647 |
10.5 |
*the 2 mounting brackets are delivered unassembled, with the product.
VENT V N
|
Model |
A |
B |
C |
D |
E |
F |
G |
H |
|
VENT 100 V N |
315 |
265 |
331 |
97.5 |
6 |
23 |
240 |
123 |
|
VENT 125 V N |
315 |
265 |
331 |
122.5 |
6 |
27 |
240 |
127 |
|
VENT 160 V N |
400 |
350 |
418 |
157 |
6 |
28 |
330 |
130 |
|
VENT 200 V N |
400 |
350 |
418 |
198 |
6 |
27 |
330 |
143 |
|
VENT 250 V N |
400 |
350 |
418 |
248 |
6 |
27 |
330 |
132 |
|
VENT 315 V N |
450 |
400 |
477 |
312 |
6 |
25 |
398 |
147 |
Detailed specifications
Text catalog pages (CT)
Catalog Pages - Other
Public tariff price
Price catalog pages (CP)
Installation instructions
Installation instructions (NT)
Performance / Environment Certificates
Electrical / ATEX Certificates
Electrical CE Declarations (DCCE)
EASYVENT
Access the software online
| ALL APPLICATIONS |
|||
 |
Selection of fans and AHU |
|
Other products: permanent updates BSP F400 CAB ECOWATT CAD HR SLIM CAD O INTEGRAL CBM CBM RE CGT CAT N F400 CHGT F400 - CHGT F300 CHRB/TN - CRVB/TN CMB - CMT CRHB-CRVB ECOWATT CTB CVAB N - CVAT N CVAB N - CVAT N ECOWATT FR F400 HCTB - HCTT - HCTT ATEX HDB ATEX HGHT F400 / F200 HGTT-V HXBR - HXTR HXBR ECOWATT KABB - KABT PURECLASS TCBB - TCBT TCTB ATEX - TGT ATEX TCDH ATEX TD - TD ECOWATT TD ATEX TD SILENT - TD SILENT ECOWATT TGHT F400 - THGT F200 TGT TGT ATEX THC - THC ECOWATT THGT HATCH F400 TRB - TREB TXBR ECOWATT ECOWATT WIND VENT-NK - VENT-VN |
