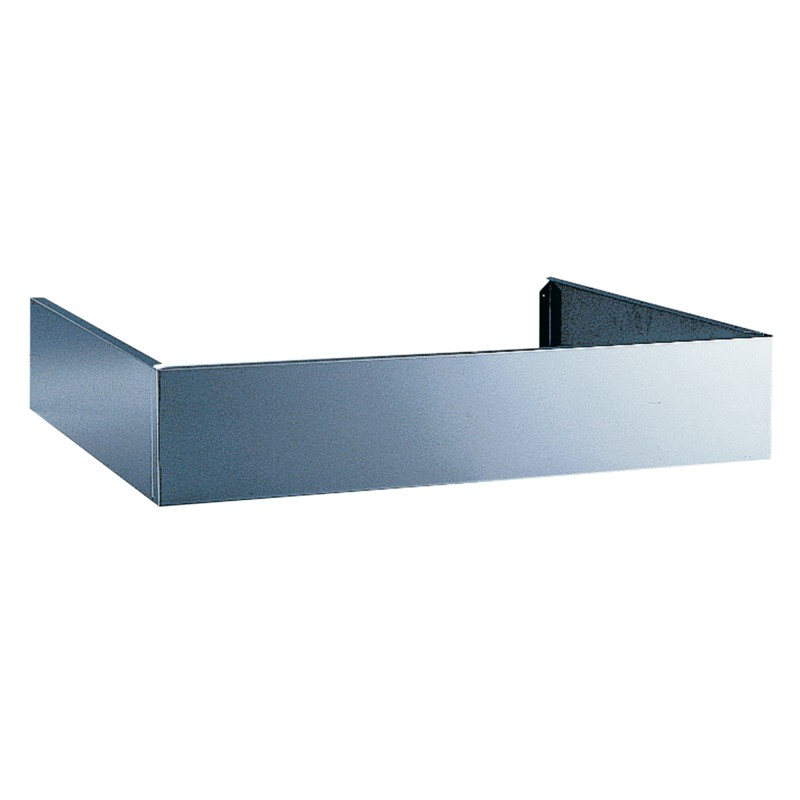

Top dressing band View larger

CUSTOMIZATION

Hood or ceiling accessories


For VORAX and NOVAX range hoods

  • Top dressing band
  • Stainless steel panels
  • Special length
  • Rear post passage
  • Perpendicular beam passage
  • Parallel beam passage
  • Corner module
  • Side fan outlets
  • Painted hood / painted ceiling
  • Description

  • Documentation

  • Public Price

Upper trim strip
  • Stainless steel panels to cover the free space between the hood and the false ceiling.
  • Manufactured in austenitic stainless steel AISI 304L (1.4307) with a brushed SB finish for the VORAX® ranges and a 220 grain brushed finish for the NOVAX ranges.
  • 2 models: self-supporting and fixed.
  • Self-supporting system: without visible screws or rivets, composed of removable panels fixed on reinforcement gussets positioned in the corners and at the panel joint. Allows the strip to hold on the hood without additional fixing. Available as standard in heights from 100 to 900 mm.
  • Fixed system: without visible screws or rivets, composed of panels fixed together on the upper edge of the hood. Requires access to the fixing points from above the strip. Available as standard in heights of 200 to 500 mm.

Stainless steel panels
  • Rear or upper panel of the extraction part of VORAX® hoods in austenitic stainless steel AISI 304L (1.4307) without visible screws.
    Not necessary on the NOVAX range as it is all stainless steel as standard.
    Added value for stainless steel rear or top panel.

Special length
  • Possibility of manufacturing modules to exact length.
    Special length added value.

Rear post passage
  • Rear post passage sensor or hood
    • P = 150 mm max for Chef, 90/10 and comfort 400/500 hoods
    • P = 100 mm max for Induct 400 hoods
    • P = 75 mm max for Induct 500 hoods
    • A = 100 mm minimum
    • B and C = depending on the width of the post and length of the hood with 100 mm minimum for C
    • Other coasts: contact us

Perpendicular beam passage
  • Single extraction hood and sensor
    • P = 40 mm max for 400/500 hoods
    • A = 100 mm minimum
    • B and C = depending on the width of the post and length of the hood with 100 mm minimum for C
  • Hood with diffusion or induction
    • P = 40 mm max for 400/500 hoods
    • A = 100 mm minimum
    • B and C = depending on the width of the post and length of the hood with 100 mm minimum for C
    • Other dimensions: contact us.

Parallel beam passage
  • In the sensor alone
    • P = 40 mm max for 400/500 hoods
    • A = 100 mm minimum
    • B and C = depending on the width of the post and length of the hood with
    • 100 mm minimum for C
  • In areas where parts meet
    • Other dimensions, for beam passages at the level of the light fixtures or in the volume of the hood, blowing box, contact us.

Corner module
  • Corner module for VORAX hood® CHIEF
    • Ensures visual and functional continuity in cramped kitchens.


Side fan outlets
  • Side fan outlet on VORAX® CHEF G / LAUNDRY G / OVEN G / PREMIUM G.
  • Fan outlet on the left or right cheek hood viewed from the front (excluding VORAX range)® BASIC G), adaptation of the extraction sensor to maintain the aeraulic characteristics of the fans.
  • In the case of a hood with a height of 400 mm and a projection of 1000 mm, the implementation of recessed lighting is not possible; it is necessary to select lighting using recessed LED spotlights.

Painted hood / painted ceiling
  • Allows you to harmonize the color of the extraction hood or the filtering ceiling with the ambiance of the kitchen or the adjacent room in the case of a theme restaurant or show kitchen.
  • Epoxy paint.
  • Different RAL available.
