FILTERS
Hood or ceiling accessories
For VORAX and NOVAX range hoods
View larger
FILTERS
New product
- Stainless steel shock filter
- Galvanized media filter
- High efficiency combi filter 95%
- Stainless steel blanking plates
- Perforated stainless steel cover plates
- Stainless steel impact filter EN 16282-6
- NOVAX stainless steel cover plate
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References

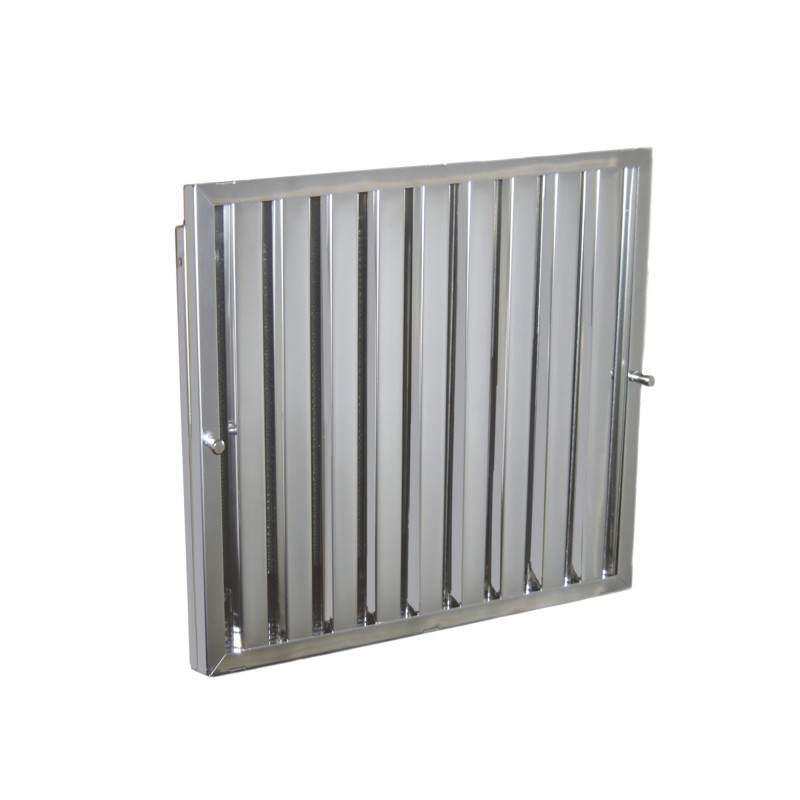

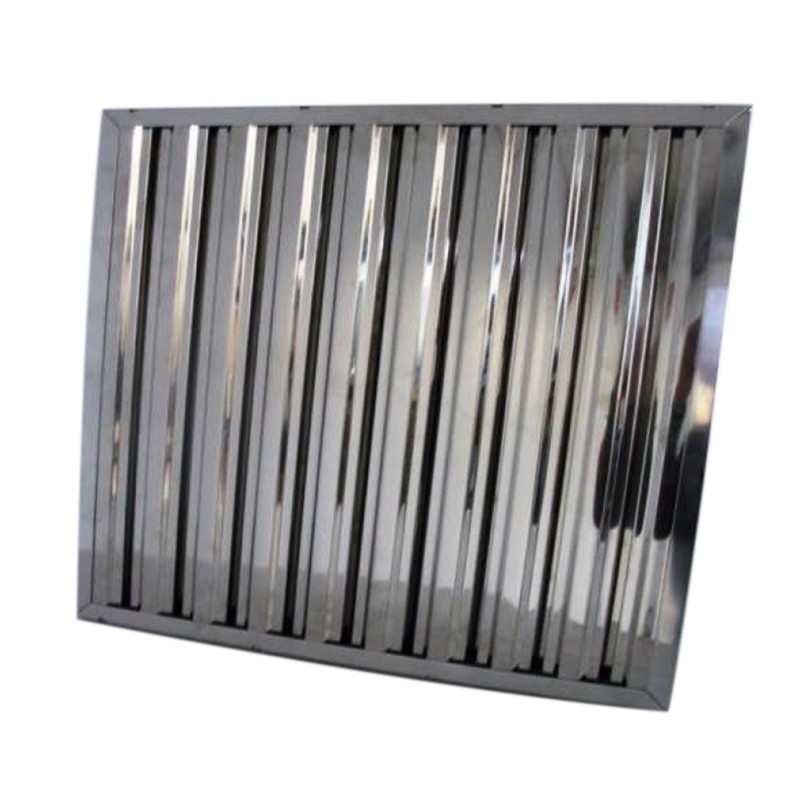

Stainless steel shock filter for VORAX® range hoods

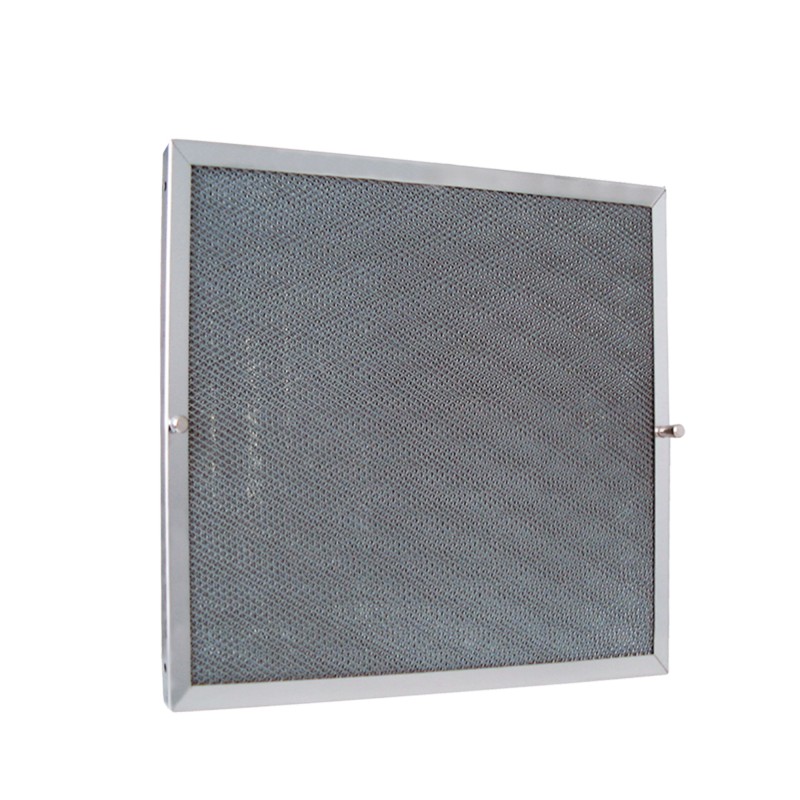

Media Filter for VORAX® range hoods
High efficiency combi filter 95% for VORAX® range hoods

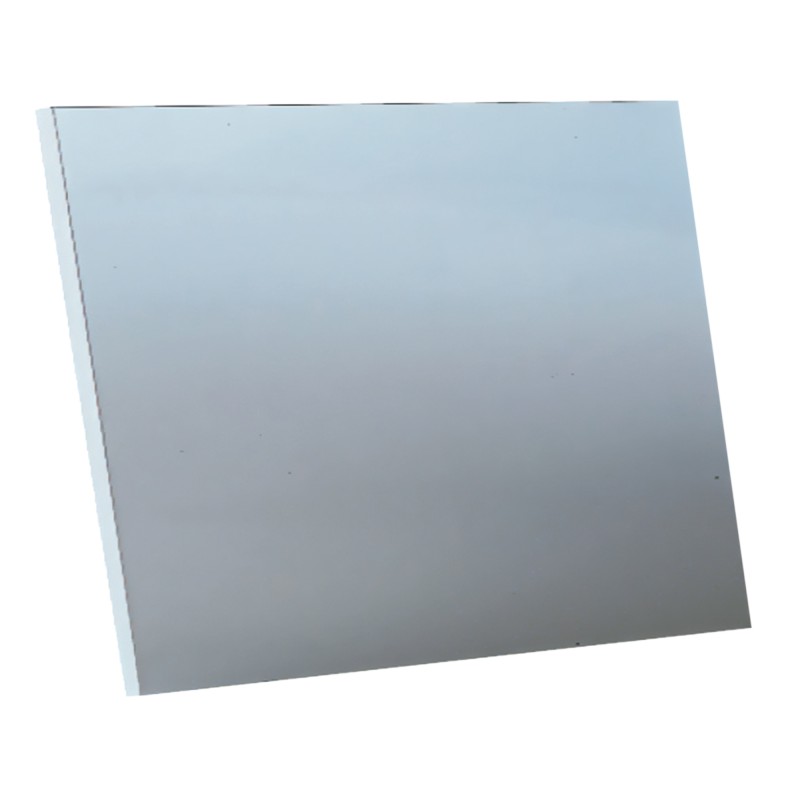

Stainless steel shutter plates for VORAX® range hoods

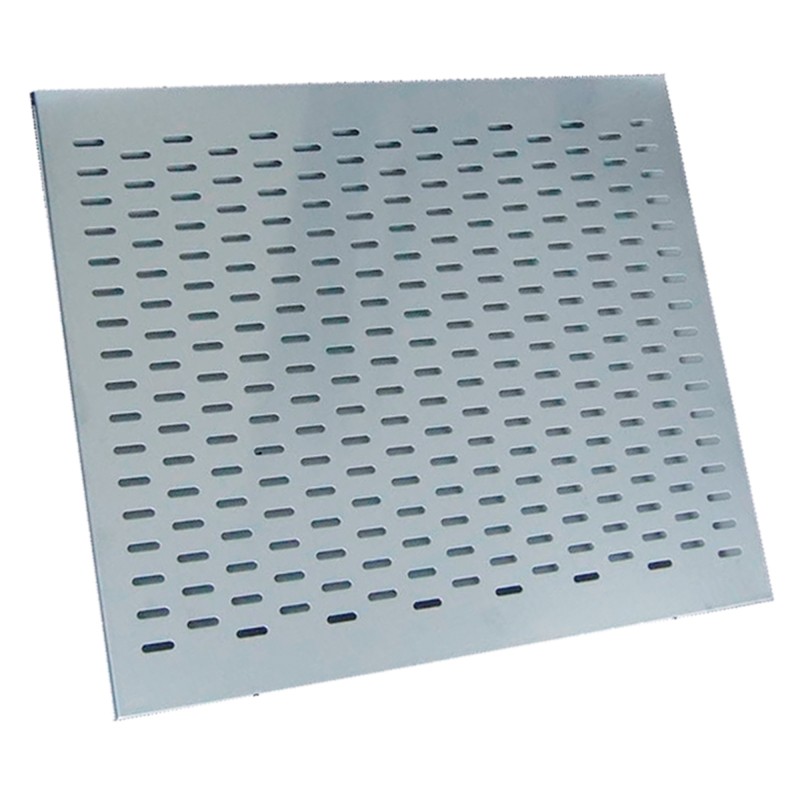

Perforated stainless steel shutter sheets for VORAX® range hoods

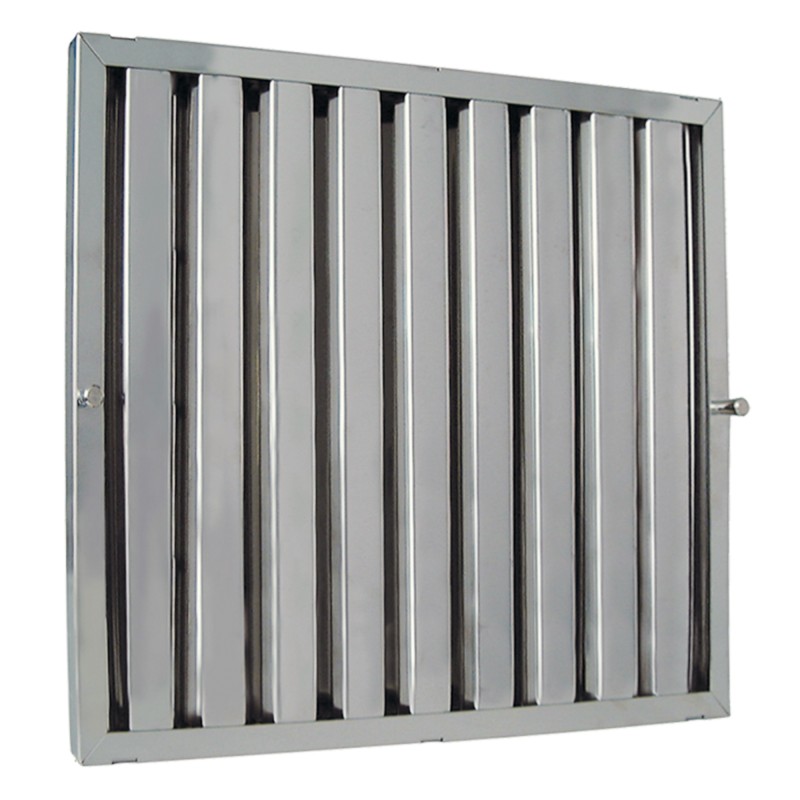

Stainless steel shock filter EN 16282-6 for NOVAX range hoods
Stainless steel blanking plate for NOVAX range hoods
VORAX® VISION stainless steel ceiling shock filter
High efficiency combi filter 95% for VORAX® VISION ceiling
Stainless steel shutter plates for VORAX® VISION ceiling
- All stainless steel AISI 304 shock filter.
- Constant pressure drop.
- With grip knobs.
- Dimensions H x L x = 397x472x25 mm.
Media Filter for VORAX® range hoods
- Metal media filter.
- AISI 304 stainless steel frame.
- Galvanized or AISI 304 stainless steel media.
- Galvanized or AISI 304 stainless steel exterior expanded metal.
- With grip knobs.
- Dimensions H x L x = 397x472x25 mm.
High efficiency combi filter 95% for VORAX® range hoods
- Combination of a metal media filter and a shock filter.
- Better efficiency on small particles.
- AISI 304 stainless steel frame.
- Galvanized or AISI 304 stainless steel media.
- With grip knobs.
- Dimensions H x W x H = 397x472x45 mm for 25 mm slide.
Stainless steel shutter plates for VORAX® range hoods
- Replaces an existing filter.
- Allows to increase the speed of passage on the filters and to improve the filtration efficiency.
- AISI 304L stainless steel sheet.
- Dimensions H x L x = 397x472x25 mm.
Perforated stainless steel shutter sheets for VORAX® range hoods
- Dry heat capture above tunnel washing machines.
- Construction in AISI 304L stainless steel.
- Dimensions H x L x = 397x472x25 mm.
Stainless steel shock filter EN 16282-6 for NOVAX range hoods
- For Novax, NOVAX UV and NOVAX G F400 hoods.
- Flame shock filter.
- All AISI 304 stainless steel.
- With grip knobs.
- Dimensions:
- NOVAX and NOVAX UV, H x W xe = 397x450x25 mm.
- NOVAX G F400, H x W x = 546x450x25 mm.
Stainless steel blanking plate for NOVAX range hoods
- For NOVAX, NOVAX UV and NOVAX G F400 hoods.
- Replaces an existing filter.
- Allows to increase the speed of passage on the filters and to improve the filtration efficiency.
- Construction in AISI 304L stainless steel.
- Dimensions:
- NOVAX and NOVAX UV, H x W xe = 397x450x25 mm.
- NOVAX G F400, H x W x = 546x450x25 mm.
VORAX® VISION stainless steel ceiling shock filter
- All stainless steel AISI 304 shock filter.
- Constant pressure drop.
- With grip knobs.
- Dimensions H x L x = 247x472x25 mm.
High efficiency combi filter 95% for VORAX® VISION ceiling
- Combination of a metal media filter and a shock filter.
- Better efficiency on small particles.
- AISI 304 stainless steel frame.
- AISI 304 stainless steel media.
- With grip knobs.
- Dimensions H x W xe = 247x472x45 mm for 25 mm slide.
Stainless steel shutter plates for VORAX® VISION ceiling
- Replaces an existing filter.
- Allows to increase the speed of passage on the filters and to improve the filtration efficiency.
- AISI 304L stainless steel sheet.
- Dimensions H x L x = 247x472x25 mm.
Detailed specifications
Text catalog pages (CT)
Public tariff price
Price catalog pages (CP)
Installation instructions
Installation instructions (NT)
