KAMOUFLAGE ATOUT / TRUMP 1V ME
Gate shutters
Flush - Aluminum or painted finish - Motorized version
View larger

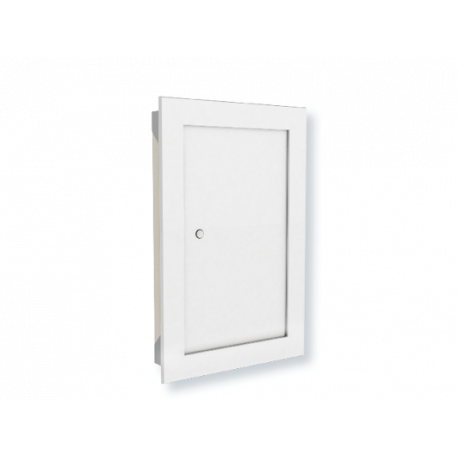

KAMOUFLAGE ATOUT / TRUMP 1V ME
New product
- Reinforced waterproofing
- Very low pressure loss
- Aesthetic integration, without a covering grid
- Robust construction
- Simplified maintenance
- Right or left hinges
Application
Intended for mechanical or natural smoke extraction from premises or circulation areas.
Remote-controlled Safety Actuated Devices (DAS) intended for the introduction of fresh air (installation in the lower part) or the extraction of fumes (installation in the upper part).
Opening on command of the CMSI (Central Fire Safety System).
Use inside buildings.
CAD / BIM
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
- Perfect integration of the shutter into the interior decoration of the building.
- RAL 9010 white lacquered finish or anodized aluminum finish.

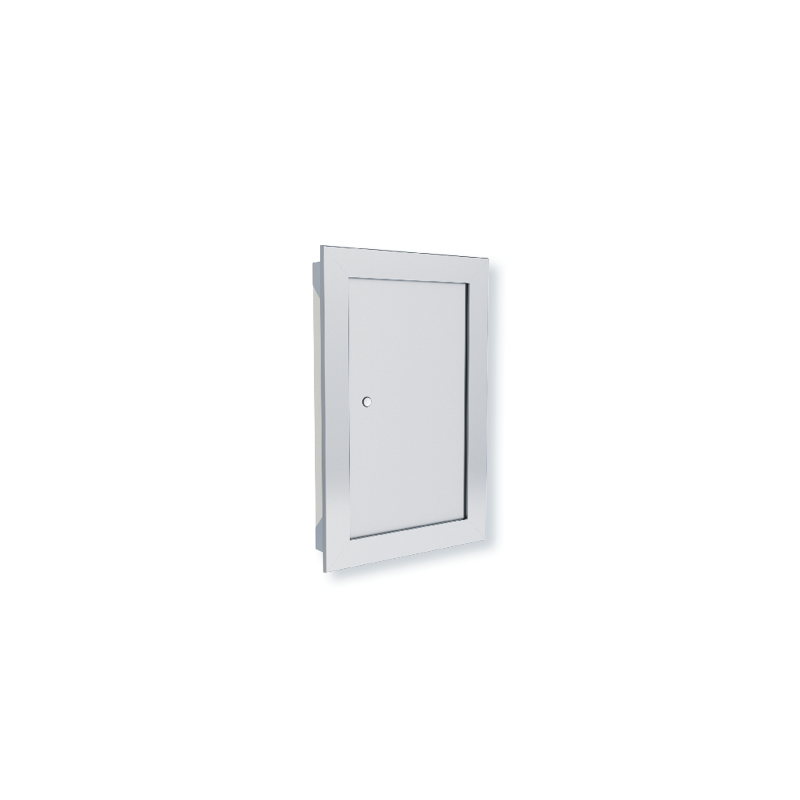

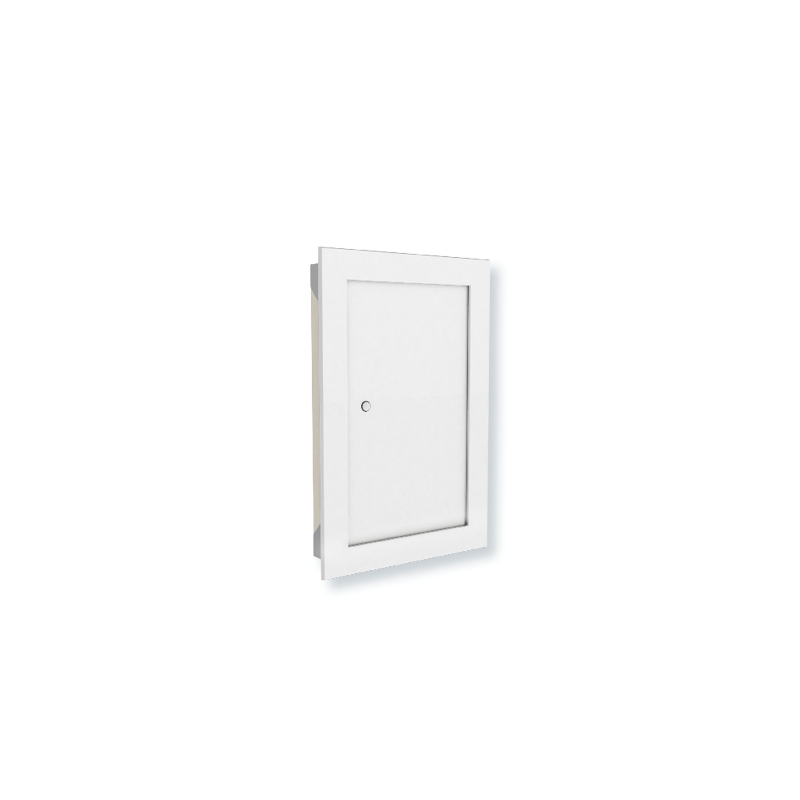

KAMOUFLAGE ATOUT
- Aesthetic smoke extraction shutters with remote-controlled wicket door without decorative grille:
- 1 leaf: 1V60 EI60S and 1V120 EI120S, dimensions (LxH): 300x385 up to 700x1075 mm.
- 2 leaves: 2V60 EI60S and 2V120 EI120S, dimensions (LxH): 350x385 up to 1100x1105 mm.
- 2-leaf versions more particularly suited to shallow ducts or large shutters.

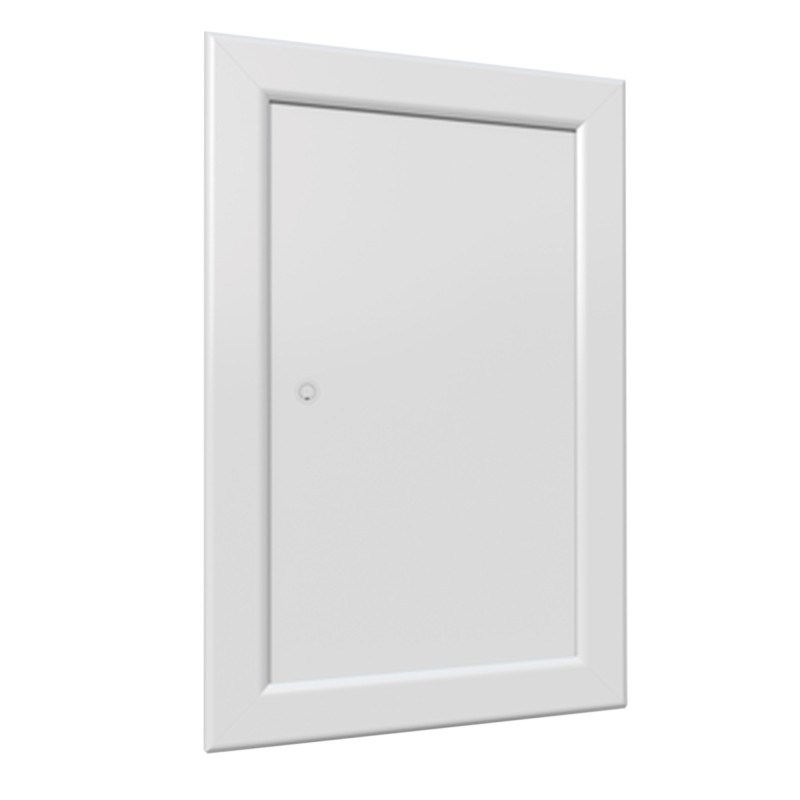

KAMOUFLAGE ATOUT 1V ME
- Aesthetic smoke extraction shutters with remote-controlled wicket door without decorative grille with reset motor:
- 1 leaf: 1V60 EI60S and 1V120 EI120S, dimensions (LxH): 350x385 up to 700x1075 mm.
Description
KAMOUFLAGE ATOUT
- Anodized aluminum frame.
- Self-locking 90° anti-return.
- 1 or 2 refractory material leaves pivoting on hinges, covered with metal panel(s) delivered with protective film.
KAMOUFLAGE ATOUT 1V ME
- Rounded edge frame in anodized aluminum.
- Self-locking 90° anti-return.
- 1 leaf in refractory material pivoting on hinges covered with metal panel delivered with protective film.
- The leaf panel is removable.
KAMOUFLAGE ATOUT
1 - Refractory material (eg silico-limestone plate)
2 - EASY KAP frame (option)
3 - Sealing (ex. Plaster) if pre-framed
4 - EASY KGC anti-fall (option on the frame)
Weight: refer to the technical instructions on vim.fr
KAMOUFLAGE ATOUT 1V ME
1 - Refractory material (eg silico-limestone plate)
2 - EASY KAP ME frame (option)
3 - Sealing (ex. Plaster) if pre-framed
4 - Pre-frame with EASY-KGC ME fall arrest device (option)
5 - Nominal dimensions of the damper Ln x Hn
6 - Installation dimensions without frame (Ln + 10) x (Hn + 10) mm
7 - Installation dimensions with frame (Ln + 20) x (Hn + 20) mm
8 - External dimensions of the shutter (Ln + 54) x (Hn + 54) mm
| ≥ | ≤ | |
| (Ln x Hn) mm | 350x385 | 700x1075 |
Detailed specifications
Text catalog pages (CT)
Public tariff price
Price catalog pages (CP)
Installation instructions
Installation instructions (NT)
Fire / Smoke extraction certificates
Fire classification report (PVFEU)
CE smoke extraction certification (CCCE)
Performance / Environment Certificates
NF certificate (CNF)
Declaration of performance (DOP)
Prescription assistance
Commercial documents
Commercial leaflet (FCOM)
↑
