FLEXIBLE PVC CONDUIT
New product
- Conduit G, N: Non-insulated PVC flexible - 6 m
- N25N conduit: Insulated PVC hose - 6 m
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References

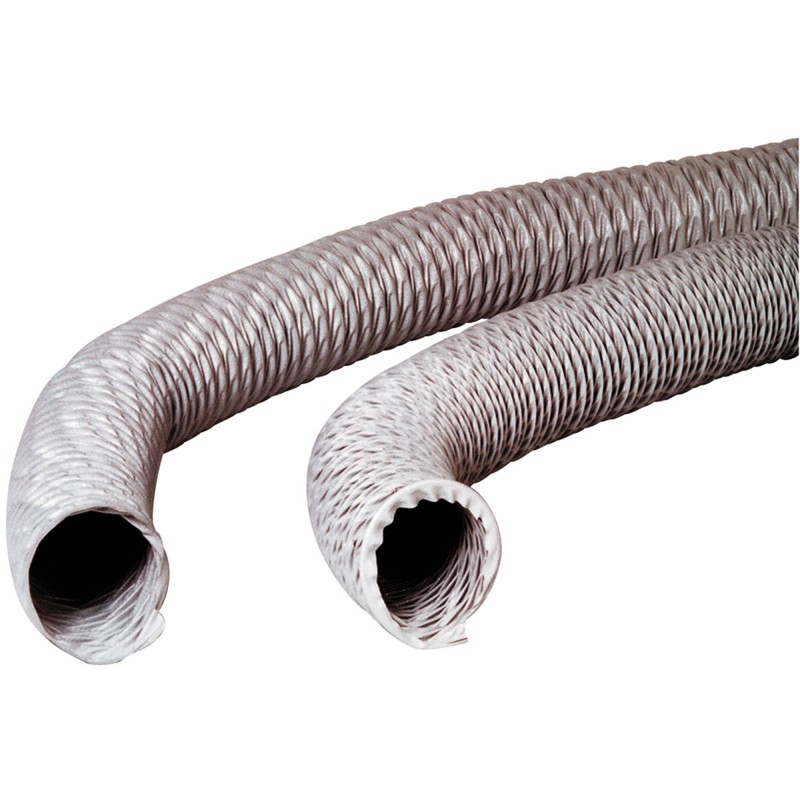

Conduit G, N: Non-insulated PVC flexible - 6 m
N,
G,
N25N Flexible PVC insulated conduit - 6 m
N,
65 μm grey PVC film wall, helical steel wire reinforcement:
- Economic range used for VMC installations in individual homes.
- Minimum bending radius: 0.6 D.
- Operating temperature: -30 to +70°C.
- Fire resistance: not classified.
- Maximum pressure: 1,500 Pa.
G,
180µm grey PVC film wall, reinforced with a polyester grid, spiral steel wire frame:
- Minimum bending radius: 0.6 D.
- Operating temperature: -30 to +70°C.
- Fire resistance B-s2,d0 (M1).
- Maximum pressure: 3,000 Pa.
Standard length of 6 m.

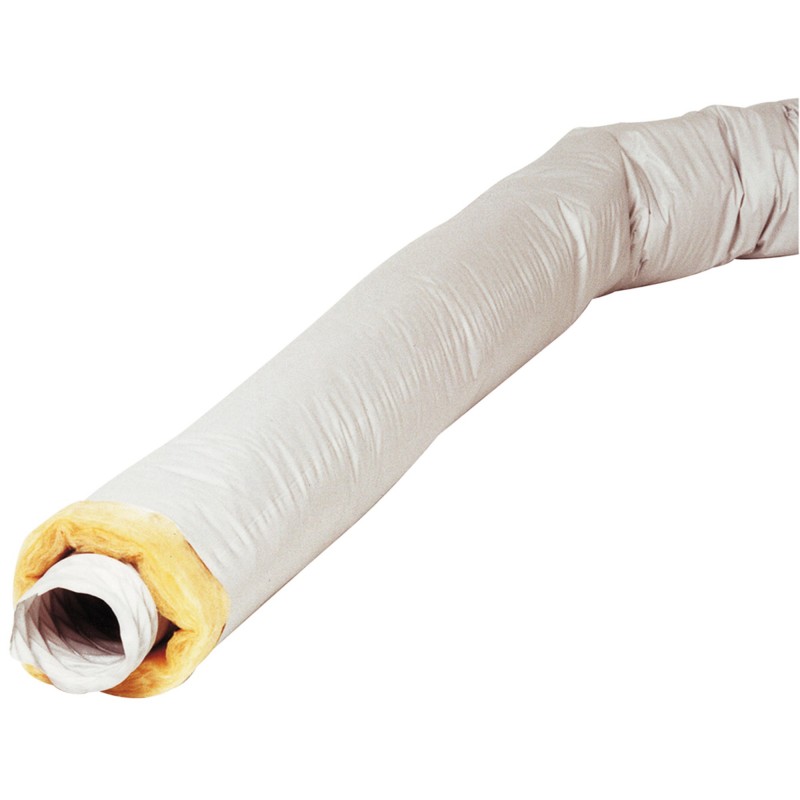

N25N Flexible PVC insulated conduit - 6 m
- Used for VMC installations in individual homes.
- Inner wall in 180 µm grey PVC film reinforced by a polyester grid with a steel wire frame, 25 mm thick glass wool insulation, density 16 kg/m3, outer cover in 140 µm grey PVC film.
- Minimum bending radius: 1.5 D.
- Operating temperature: -30 to +70°C.
- Standard length of 6 m compressed, individual cardboard packaging.
- Fire resistance B-s2,d0 (M1).
- Maximum pressure: 1,500 Pa.
