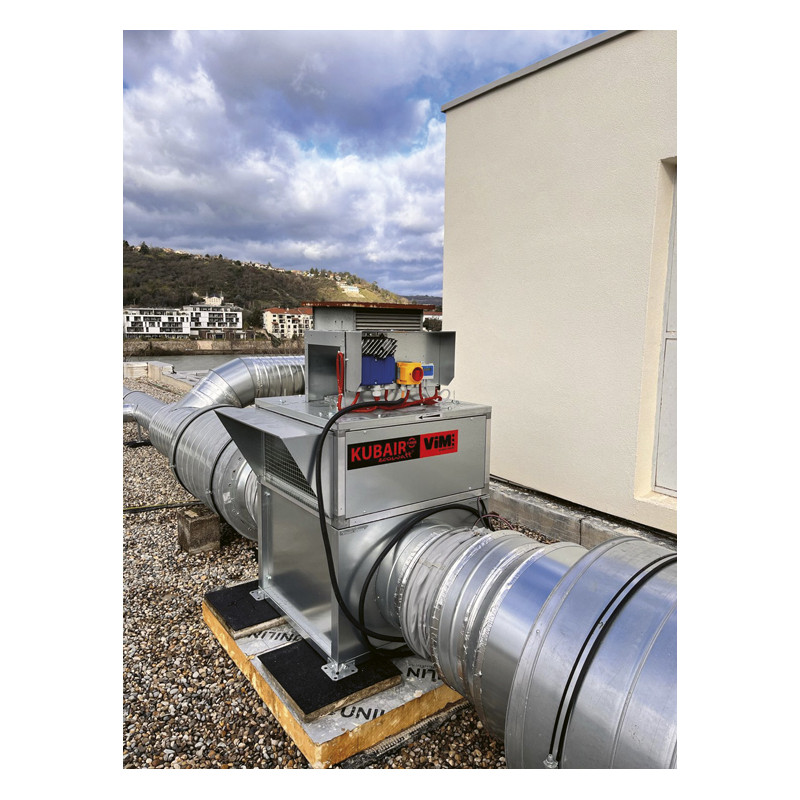

KUBAIR® F400 ECOWATT® CC / MV
F400 120 extraction boxes
Direct drive - Reaction - ECM < 24000 m3/h
View larger
KUBAIR® F400 ECOWATT® CC / MV
New product
 |
ErP 2018 compliant - UVNR Variable EC motor |
|||
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
- F400 120 approved without relay box and 400 ° C 1 / 2h C4
- Low consumption ECM motor
- Integrated regulation VAV, CAV, COP, ASR
- Flow or pressure display
- Communicating ModBus
- Multidirectional connection
- Waterproof kitchen version
Application
CMV collective and tertiary housing.
Extraction of fumes and hot gases in case of fire.
Extraction of stale air from tertiary and industrial premises.
Extraction of pollutants in professional kitchens.
Installation in all positions and connection on all sides, except with vertical motor axis and motor at the bottom.
Air extraction up to 120 ° C continuously, ECM motor at -10 ° C + 40 ° C max.
In the current state of the standard, this range cannot be associated with an NF certified relay box.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
Flow from 500 to 24,000 m3/h.
6 sizes: 355 / 400 / 450 / 500 / 630 / 710.
Models:
Options - Corrosion treatment
KUBAIR F400 - Main spare parts
Versions
Construction
Motorization
ETDZ Remote control - Accessory
Communication
Flow or pressure display
Smoke extraction operation
F400 120 factory-fitted and approved electrical equipment:
6 sizes: 355 / 400 / 450 / 500 / 630 / 710.
Models:
- KUBAIR® F400 ECOWATT® CC: complete unit with multidirectional suction plenum, horizontal or vertical axis motor.
- KUBAIR® F400 ECOWATT® MV: ventilation unit only, horizontal or vertical axis motor.
Options - Corrosion treatment
KUBAIR F400 - Main spare parts
Versions
- KUBAIR® F400 ECOWATT® manual control by potentiometer.
- KUBAIR® F400 ECOWATT® VAV with flow rate display.
- KUBAIR® F400 ECOWATT® COP with pressure display.
- KUBAIR® F400 ECOWATT® CAV with flow rate display.
- KUBAIR® F400 ECOWATT® ASR with pressure display for association with a single-flow CTA VIM , ASR ECOWATT system®.
Construction
- Interchangeable galvanized sheet steel panels.
- Modular structure in aluminum profiles.
- 4 fixing brackets.
- Connection by 2 interchangeable smooth KUBZ12 flanges included.
- Galvanized steel reaction turbine, mounted in direct coupling with the motor.
- Full access for cleaning and maintenance without uncoupling the housing.
Motorization
- ECM motor, class F, three-phase with remote IP55 controller:
- Single-phase 230V 50/60Hz power supply controller for sizes 355 to 450.
- 400V 50/60Hz three-phase power supply controller for sizes 500 to 710.
- Thermal protection built into the controller.
ETDZ Remote control - Accessory
- ModBus IP21 touch control, 3m RJ12 cable.
- On/Off function.
- 0-10V speed control in VAV mode.
- Display of set point and rotation speed.
- Display of consumption and faults.
- Magnetically attached shockproof case included.
- Reinforced sealing with grease resistant gasket.
- Drain purge supplied not fitted.
- Uninsulated double skin.
- Ensures a good air and water tightness when the casing is stopped.
- Accessory for horizontal shaft motor box. Consult us.
- Ensures a good air and water tightness when the casing is stopped.
- Accessory for vertical shaft motor box. Consult us.
Communication
- ModBus RTU in RS485 port.
Flow or pressure display
- VAV display of the measured flow in m3/h. Accuracy ±2.5%.
- CAV display of the measured flow in m3/h. Accuracy ±2.5%.
- COP display of the pressure measured in Pa. Accuracy ±2.5%.
Smoke extraction operation
- The KUBAIR® F400 ECOWATT® is approved for the extraction of hot gases and smoke in the event of fire. This operating mode is automatic and does not require any configuration: in the event of gas extraction at a temperature > 200°C, the box will automatically switch to GV with its internal thermal protections inhibited.
- The smoke extraction mode can also be triggered manually with a BDRA type control box.
- CAV/VAV/COP modes are no longer taken into account.
F400 120 factory-fitted and approved electrical equipment:
- C1-CR1 cable protected by a flexible outer sheath (excellent UV resistance).
- INTZ: padlockable proximity switch with 2 auxiliary contacts (1 NO and 1 NC).
- PTHV-A: Pressure transmitter with flow or pressure display. It displays the flow in VAV control.
- VCHV-A: Pressure or flow regulator for COP and CAV regulation with display.
MV version
Assembly with horizontal motor axis
CC version
Assembly with horizontal motor axis
MV version
Assembly with vertical motor shaft
CC version
Assembly with vertical motor shaft
CC version
Assembly with horizontal motor axis
MV version
Assembly with vertical motor shaft
CC version
Assembly with vertical motor shaft
|
Size |
A |
BH |
BV |
BVC |
C |
D |
E |
EC |
F |
G |
|
355 |
627 |
695 |
327 |
645 |
263 |
559 |
606 |
790 |
660 |
31 |
|
400 |
699 |
767 |
361 |
678 |
297 |
631 |
606 |
864 |
732 |
31 |
|
450 |
779 |
847 |
392 |
738 |
326 |
711 |
606 |
990 |
812 |
31 |
|
500 |
858 |
925 |
424 |
784 |
338 |
768 |
700 |
1039 |
890 |
42 |
|
630 |
1066 |
1133 |
488 |
912 |
403 |
977 |
700 |
1183 |
1098 |
42 |
|
710 |
1194 |
1261 |
551 |
1032 |
462 |
1104 |
906 |
1325 |
1226 |
42 |
|
Size |
GC |
H |
J |
K |
KC |
L |
Weight MV (Kg) |
CC Weight (Kg) |
||
|
Naked |
Isolated |
Naked |
Isolated |
|||||||
|
355 |
50 |
315 |
102 |
826 |
1103 |
321 |
44.4 |
47.5 |
64.9 |
71.0 |
|
400 |
50 |
349 |
102 |
860 |
1170 |
321 |
55.2 |
59.2 |
78.2 |
86.2 |
|
450 |
50 |
378 |
102 |
892 |
1230 |
321 |
72.5 |
77.5 |
97.4 |
107.5 |
|
500 |
62 |
402 |
112 |
954 |
1294 |
351 |
93.8 |
99.5 |
120.1 |
131.5 |
|
630 |
62 |
466 |
112 |
1018 |
1422 |
351 |
132.1 |
139.1 |
176.3 |
194.1 |
|
710 |
62 |
526 |
112 |
1070 |
1533 |
446 |
158.0 |
167.1 |
278.8 |
302.2 |
Detailed specifications
Text catalog pages (CT)
Text catalog pages (CT) Other languages
Catalog Pages - Other
Public tariff price
Price catalog pages (CP)
Installation instructions
Installation instructions (NT)
Installation instructions (NT) Other
Installation instructions (NT) Other languages
Fire / Smoke extraction certificates
Fire classification report (PVFEU)
CE smoke extraction certification (CCCE)
Performance / Environment Certificates
ErP regulatory sheet (FERP)
Technical Notice (ATEC)
Declaration of performance (DOP)
Product environmental profile (PEP)
Electrical / ATEX Certificates
Electrical CE Declarations (DCCE)
Prescription assistance
Specification text (TP)
Commercial documents
Commercial leaflet (FCOM)
EASYVENT
Access the software online
| ALL APPLICATIONS |
|||
 |
Selection of fans and AHU |
|
