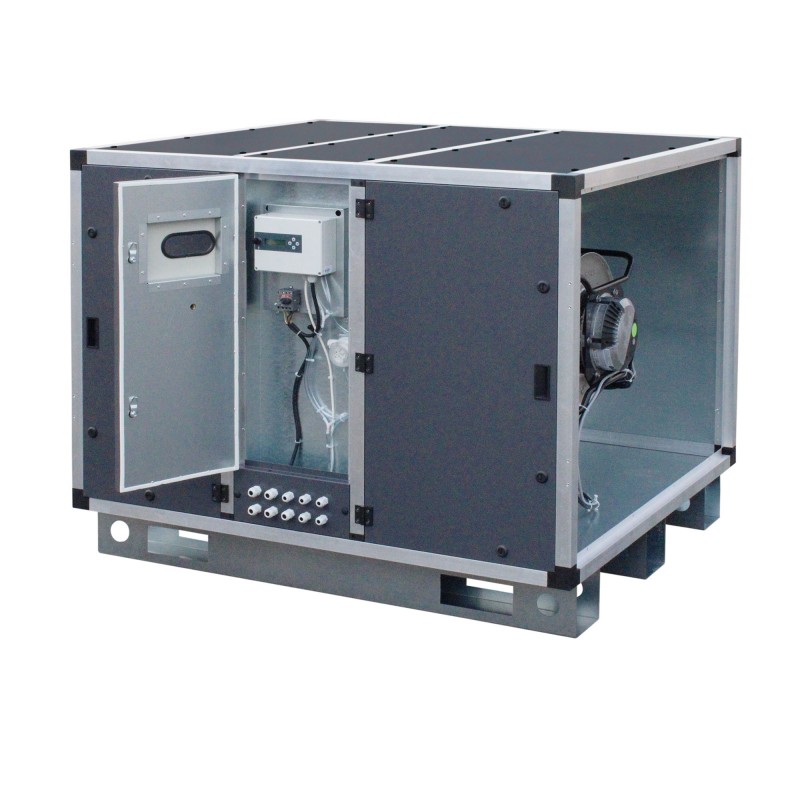

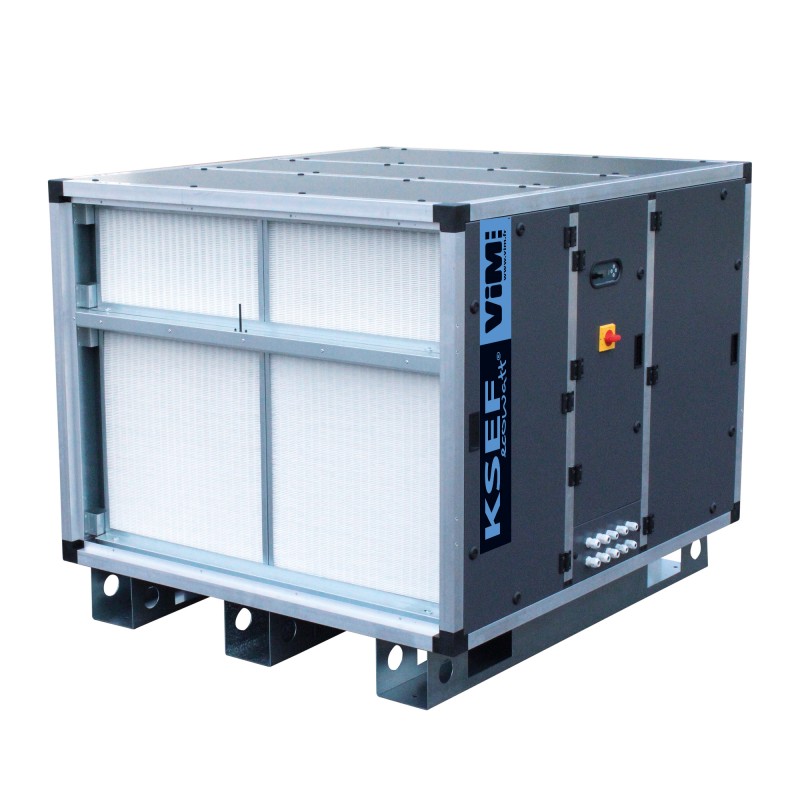

KSEF ECOWATT®

Extraction or insufflation boxes

KSEF ECOWATT® View larger

KSEF ECOWATT®

Extraction or insufflation boxes


ErP compliant 2018 - UVNR - Variable EC Motor ErP compliant 2018
UVNR - Variable EC Motor
ECM motor Sound insulation Regulated flow or pressure Filter holder
Easy maintenance GTC Modbus OPTAIR® CTA VIM

  • Low consumption ECM motor
  • 25 mm double skin insulation
  • Optional M5, F7 or F9 filtration
  • Integrated potentiometer
  • RMEC control for COP, CAV or VAV operation
  • ASR control for kitchen extraction operation

Application
Versatile ventilation module for various applications depending on the version, add-on modules, accessories and control selected.
Supply of untreated filtered fresh air.
Stale air extraction with or without filtration.
Filtered exhaust air extraction with activated carbon odor treatment with the addition of the KPCA module.
Indoor or outdoor installation.
  • Description

  • Dimensions

  • Documentation

  • Public Price

  • Software

  • References

Flow rates from 500 m3/h to 20,000 m3/h.
7 sizes: 18 / 40 / 55 / 75 / 95 / 120 / 200.

Regulations and management
  • Standard: flow variation by internal or remote potentiometer.
  • VAV (variable flow), CAV (constant flow), COP (constant pressure) mode regulation: integrated RMEC regulator with flow and pressure display, communicating ModBus RTU as standard.
  • ASR system extraction controlled by a CTA for introducing fresh air in professional kitchen air treatment.
Configurations
  • Interiors without roof: D right easement - G left easement.
  • Exterior with roof mounted: EXD right easement - EXG left easement.
Other modules
  • KPCA filtration module (M5 / F7 / F9 / Metallic / Activated carbon).
  • KFIL 2-stage filtration module.
  • KATH decontamination module: elimination of viruses and pollutants by athermal catalysis.
  • KSIL acoustic module.

Construction
  • Modular structure in aluminum profile.
  • In-line construction, rectangular or circular connection.
  • Double skin panels equipped with peripheral seal:
    • Exteriors in pre-painted galvanized steel, dark gray color RAL7024, corrosion resistance RC5, ultraviolet resistance RUV5 according to EN 10169.
    • Interiors in Z275 galvanized steel.
  • Insulation with 25 mm thick glass wool, density 24 kg/m3.
    • Thermal conductivity 0.035 W/(mk) (20°C).
    • Fire classification A1 according to standard EN 13 501.1.

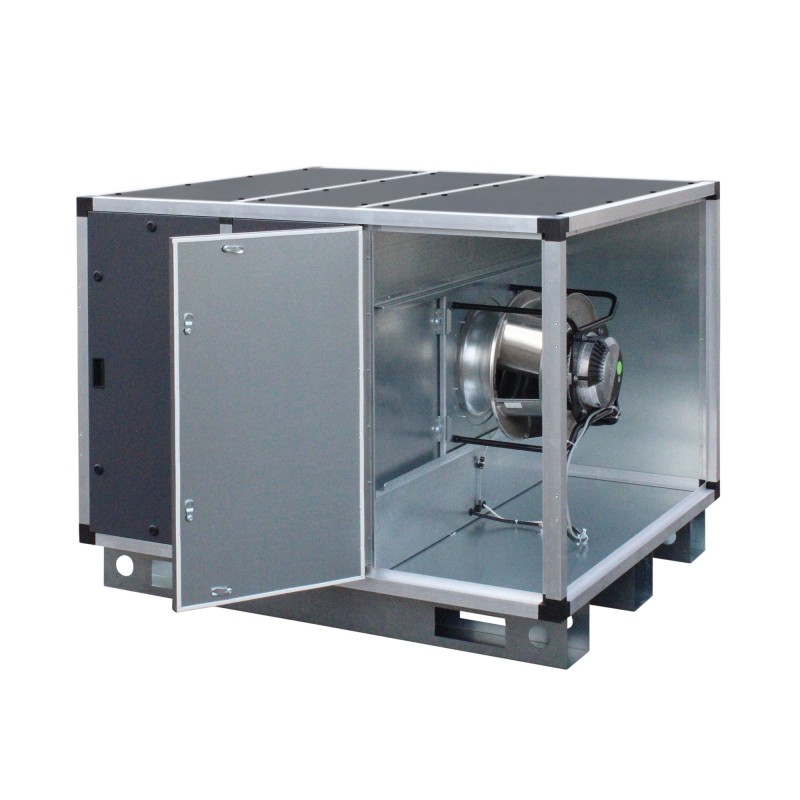

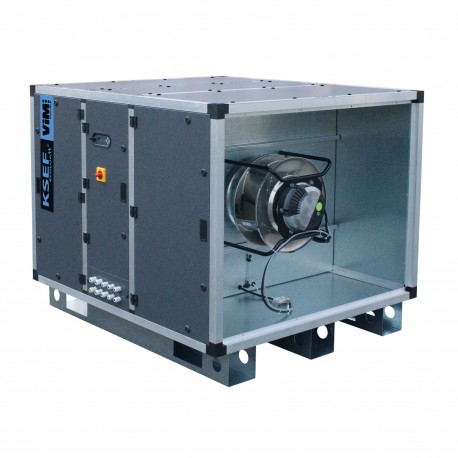

  • Freewheel reaction fan in galvanized steel sheet with ECM Mono 230V or Tri 400V motor depending on the size.
  • Switch mounted/wired.
  • Module delivered on feet (18 to 75) or chassis (95 to 200).

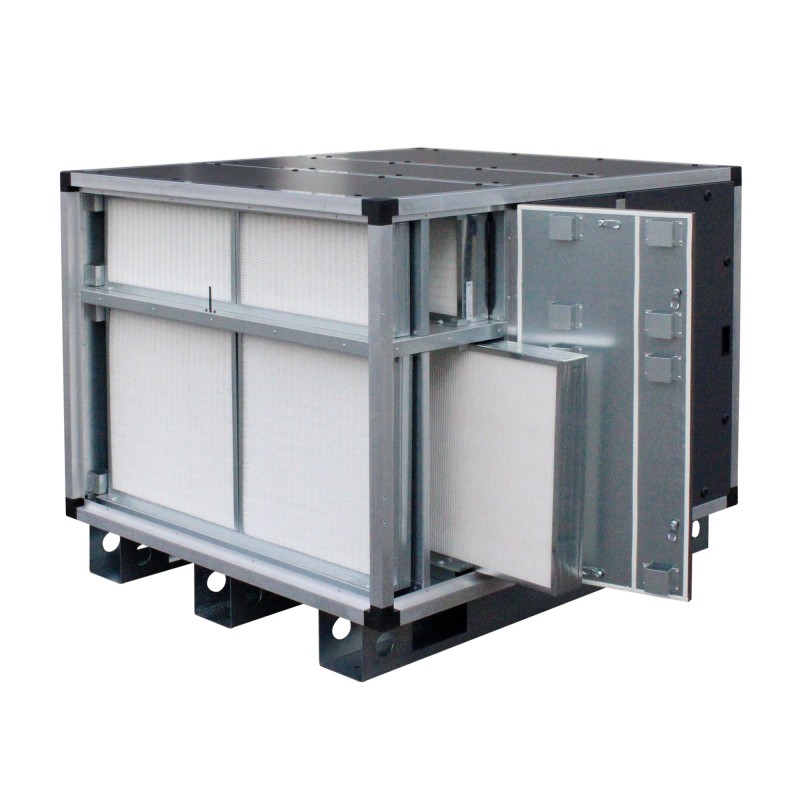

Optional 2-stage filtration
  • Metal pre-filter: FIME thickness 48 mm.
  • Pleated pre-filter: FIFI M5 ePM10 50% thickness 48 mm.
  • HPE FIFI F7 ePM1 55 Mini-Pleat Filters% or FIFI F9 ePM1 80% thickness 98 mm.
Registers (accessory)
  • Manual or motorized control.
  • Flow regulation.
  • Antifreeze protection for water batteries, mounted on the suction side.
  • Network closure in application of article CH38, mounted on blowing.
KSEF ECOWATT 18 / 40 / 55 / 75
Interior model without roof



Exterior model with roof



Size A B C D E F G I M N O P Weight (kg)
Without roof With roof
KSEF ECOWATT 18 985 644 584 538 700 100 33 607 607 985 784 796 63 73
KSEF ECOWATT 40 1135 695 635 635 795 100 33 757 757 1135 835 891 88 120
KSEF ECOWATT 55 1210 981 921 635 795 100 33 832 832 1210 1121 891 130 161
KSEF ECOWATT 75 1270 981 921 921 1081 100 33 892 892 1270 1121 1177 141 156



KSEF ECOWATT 95 / 120 / 200
Interior model without roof



Exterior model with roof



Size A B C D E F G N O P Weight (kg)
Without roof With roof
KSEF ECOWATT 95 1478 1306 1226 967 1202 155 33 1478 1446 1308 230 255
KSEF ECOWATT 120 1959 1306 1226 1272 1507 155 33 1959 1446 1613 353 385
KSEF ECOWATT 200 1959 1898 1818 1272 1507 155 33 1959 2038 1633 413 457
