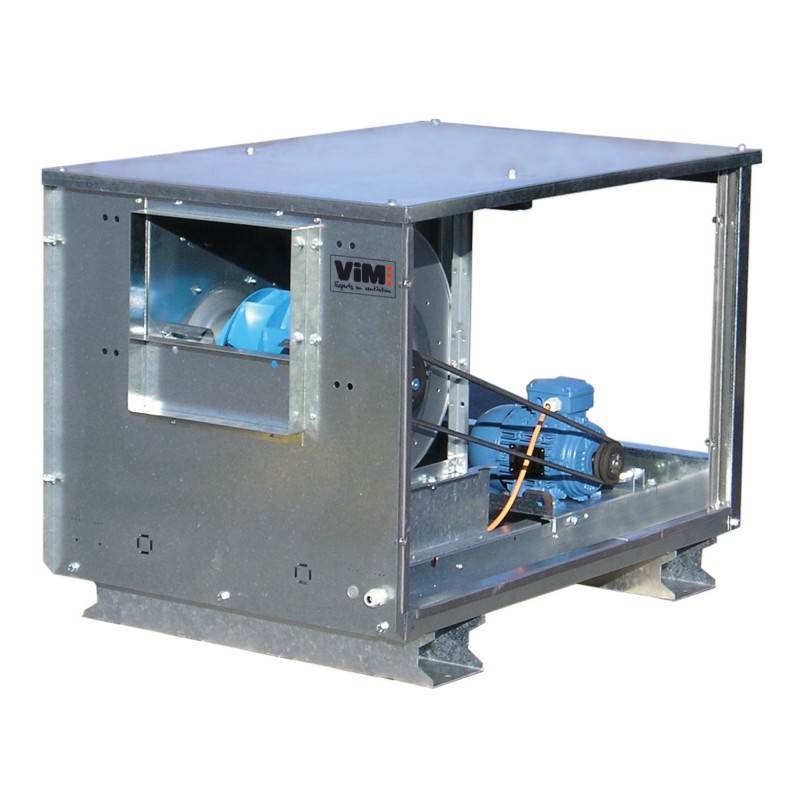

KSHA - KSHR
Extraction or insufflation boxes
Transmission - Forward or Backward < 50000 m3/h
View larger
KSHA - KSHR
New product
 |
KSHR - ErP 2018 UVNR Compliant |
||
 |
KSHA - Not ErP Compliant |
||
 |
 |
||
- Fan action or reaction
- Wide range of flow and pressure
- Robust construction
- Complete solution with mounted electrical accessories
Applications:
Extraction or insufflation.
Introduction of smoke extraction air.
Installation inside buildings or on the terrace.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
11 sizes: 200 / 250 / 280 / 315 / 355 / 400 / 450 / 500 / 560 / 630 / 710 mm.
Discharge: horizontal or vertical.
KSHA
KSHA - KSHR - Main spare parts
Options - Anti-corrosion treatment
Construction
Transmission
Filtration as accessory
Motorization
Selection - Standard fans
Discharge: horizontal or vertical.
KSHA
- Action wheel.
- Flow rate from 1 000 to 50 000 m3/h.
- Pressure from 120 to 1 500 Pa.
- Reaction impeller.
- Flow rate from 500 to 40 000 m3/h.
- Pressure from 240 to 2 000 Pa.
KSHA - KSHR - Main spare parts
Options - Anti-corrosion treatment
Construction
- One-piece casing made of galvanized steel sheet Z275, completely removable.
- Side panels removable on both sides for easy access.
- KSHA dynamically balanced double inlet galvanized steel turbine, small size, high flow capacity.
- KSHR double jet turbine in painted galvanized steel, dynamically balanced, medium pressure, stable flow, insensitive to fouling.
- Motor-turbine mounted on a thick folded longitudinal frame.
- Connection by smooth rectangular flanges for suction and discharge.
- Suction and discharge in line (horizontal version) or discharge on top (vertical version).
- Two transverse omegas ensure the rigidity of the unit and allow the passage of slings for lifting.
Transmission
- Transmission-motor assembly mounted inside the box.
- Driven by V-belts and pulleys with 1 to 5 grooves (depending on the motor power).
- Standard motor access on the left (air direction), on the right on request.
Filtration as accessory
- FIGR G4 Coarse pleated filters 70%,
- Minipleat filters FIFI M5 ePM10 75%,
- Minipleat filters FIFI F7 ePM1 55%.
Motorization
- Motor mounted on slide plate for belt tension adjustment.
- AC motors with B3 legs, IP55 class F. Integrated thermal protection PTO to be connected:
- 1 speed single phase 230V, 50Hz, 2 or 4 poles.
- 1 three-phase speed 230/400V, 50Hz P ≤ 7.5 kW, 2, 4, 6 or 8 poles IE1, IE2, IE3.
- 1 speed three phase 400/690V, 50Hz P > 7.5 kW, 2, 4, 6 or 8 poles IE1, IE2, IE3.
- 2 speed three phase 400V, 50Hz, 2/4, 4/8 and 6/12 poles. Dalhander, 4/6 and 6/8 independent windings.
- AC 1 speed three phase motors. Frequency converter compatible, range 15 to 50Hz.
- 60Hz single-phase or three-phase power supply: consult us.
Selection - Standard fans

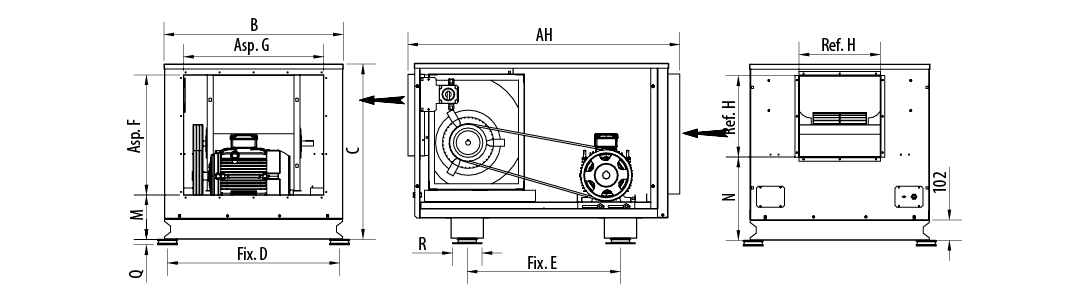

Horizontal discharge configuration
Sizes 200 to 560

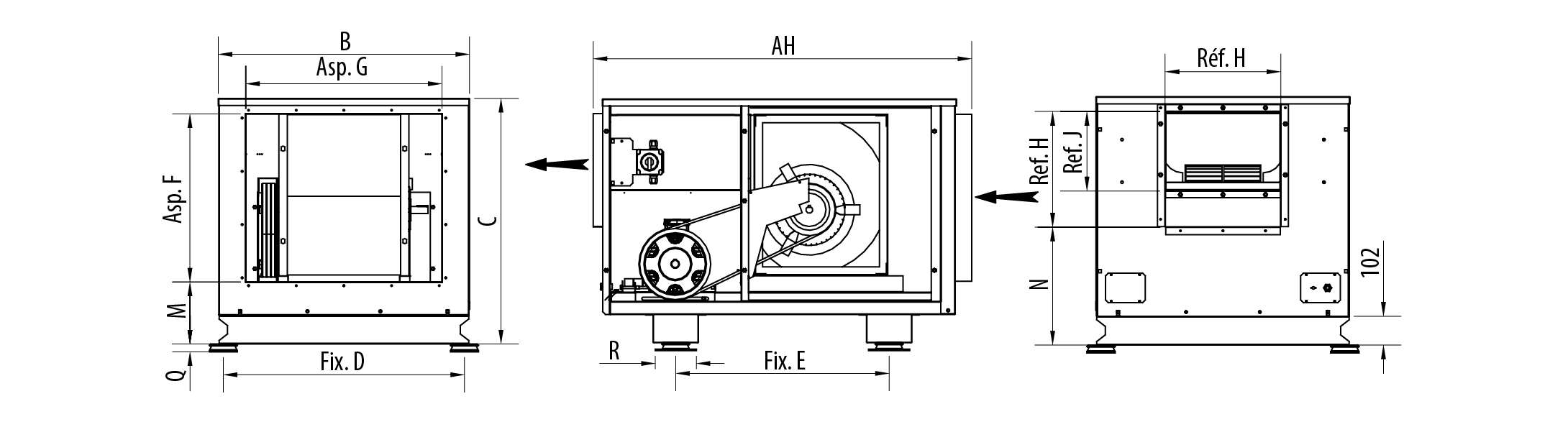

Sizes 630 and 710
* Fan weight (kg) without motor, with transmission. Engine weight see MOT.

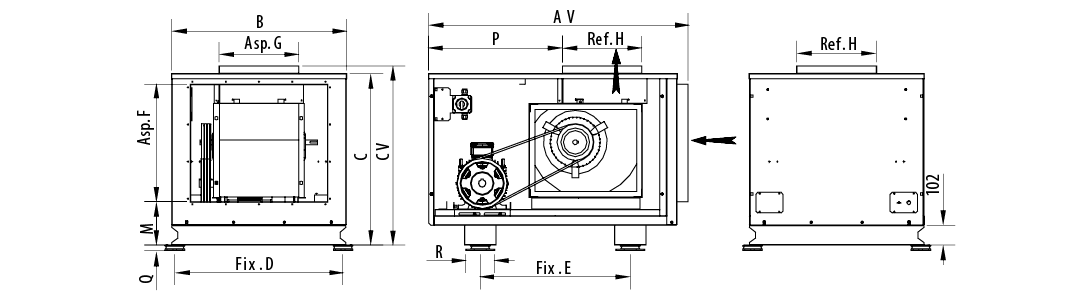

Vertical discharge configuration
Sizes 200 to 560

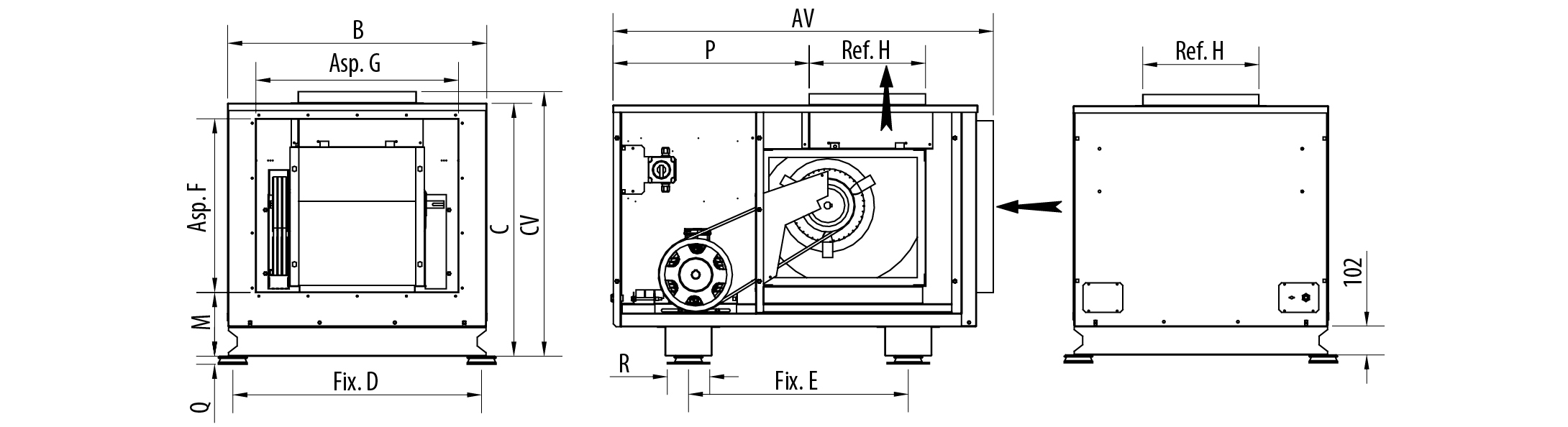

Sizes 630 and 710
Sizes 200 to 560
Sizes 630 and 710
|
Model |
AH |
AV |
B |
C |
CV |
D |
E |
F |
G |
H |
M |
N |
P |
Q |
R |
Motor max. |
Weight* |
|
200 |
993 |
981 |
595 |
703 |
742 |
555 |
680 |
400 |
500 |
258 |
249 |
392 |
500 |
28 |
125 |
112 |
54 |
|
250 |
1130 |
1118 |
727 |
784 |
824 |
679 |
766 |
500 |
600 |
324 |
221 |
411 |
569 |
28 |
125 |
132 |
63 |
|
280 |
1177 |
1168 |
824 |
776 |
816 |
780 |
777 |
600 |
700 |
362 |
146 |
379 |
609,5 |
28 |
125 |
132 |
79 |
|
315 |
1360 |
1329 |
896 |
876 |
916 |
860 |
767 |
600 |
700 |
408 |
221 |
416 |
683,5 |
28 |
125 |
132 |
100 |
|
355 |
1490 |
1457 |
1006 |
990 |
1030 |
966 |
897 |
700 |
800 |
457 |
221 |
476 |
744 |
28 |
125 |
160 |
133 |
|
400 |
1594 |
1565 |
1120 |
1036 |
1078 |
1071 |
926 |
800 |
900 |
509 |
184 |
471 |
753 |
28 |
125 |
160 |
196 |
|
450 |
1761 |
1734 |
1191 |
1119 |
1162 |
1143 |
1130 |
900 |
1000 |
570 |
184 |
486 |
825 |
39 |
182 |
180 |
214 |
|
500 |
1919 |
1891 |
1387 |
1222 |
1264 |
1340 |
1180 |
900 |
1000 |
640 |
249 |
521 |
964 |
39 |
182 |
200 |
259 |
|
560 |
1919 |
1891 |
1387 |
1269 |
1310 |
1340 |
1180 |
1000 |
1100 |
718 |
189 |
492 |
999 |
39 |
182 |
200 |
288 |
|
630 |
2132 |
2104 | 1575 | 1464 | 1473 | 1507 | 1016 | 1200 | 1300 | 806 | 566 | 177 | 1070 | 44 | 240 | 200 | 467 |
|
710 |
2292 | 2264 | 1765 | 1614 | 1623 | 1697 | 1176 | 1200 | 1400 | 900 | 286 | 617 | 1125 | 44 | 240 | 200 | 561 |
* Fan weight (kg) without motor, with transmission. Engine weight see MOT.
Vertical discharge configuration
Sizes 200 to 560
Sizes 630 and 710
|
Model |
AH |
AV |
B |
C |
CV |
D |
E |
F |
G |
H |
M |
N |
P |
Q |
R |
Motor max. |
Weight* |
|
200 |
993 |
981 |
595 |
703 |
742 |
555 |
680 |
400 |
500 |
258 |
249 |
392 |
500 |
28 |
125 |
112 |
54 |
|
250 |
1130 |
1118 |
727 |
784 |
824 |
679 |
766 |
500 |
600 |
324 |
221 |
411 |
569 |
28 |
125 |
132 |
63 |
|
280 |
1177 |
1168 |
824 |
776 |
816 |
780 |
777 |
600 |
700 |
362 |
146 |
379 |
609,5 |
28 |
125 |
132 |
79 |
|
315 |
1360 |
1329 |
896 |
876 |
916 |
860 |
767 |
600 |
700 |
408 |
221 |
416 |
683,5 |
28 |
125 |
132 |
100 |
|
355 |
1490 |
1457 |
1006 |
990 |
1030 |
966 |
897 |
700 |
800 |
457 |
221 |
476 |
744 |
28 |
125 |
160 |
133 |
|
400 |
1594 |
1565 |
1120 |
1036 |
1078 |
1071 |
926 |
800 |
900 |
509 |
184 |
471 |
753 |
28 |
125 |
160 |
196 |
|
450 |
1761 |
1734 |
1191 |
1119 |
1162 |
1143 |
1130 |
900 |
1000 |
570 |
184 |
486 |
825 |
39 |
182 |
180 |
214 |
|
500 |
1919 |
1891 |
1387 |
1222 |
1264 |
1340 |
1180 |
900 |
1000 |
640 |
249 |
521 |
964 |
39 |
182 |
200 |
259 |
|
560 |
1919 |
1891 |
1387 |
1269 |
1310 |
1340 |
1180 |
1000 |
1100 |
718 |
189 |
492 |
999 |
39 |
182 |
200 |
288 |
|
630 |
2132 |
2104 | 1575 | 1464 | 1473 | 1507 | 1016 | 1200 | 1300 | 806 | 566 | 177 | 1070 | 44 | 240 | 200 | 467 |
|
710 |
2292 | 2264 | 1765 | 1614 | 1623 | 1697 | 1176 | 1200 | 1400 | 900 | 286 | 617 | 1125 | 44 | 240 | 200 | 561 |
* Fan weight (kg) without motor, with transmission. Engine weight see MOT.
