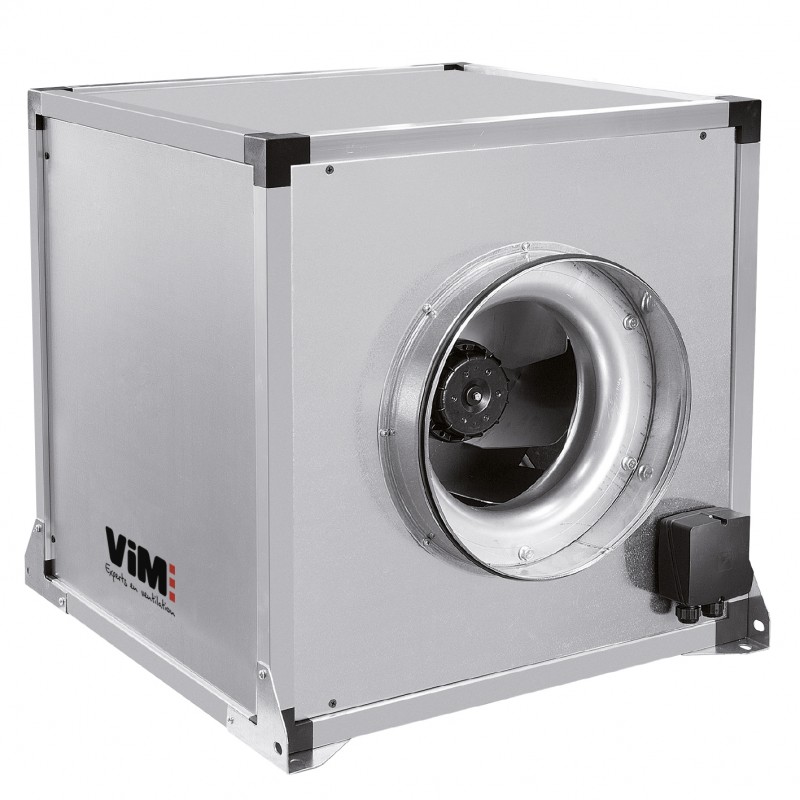

CVAB-N - CVAT-N
Extraction or insufflation boxes
Direct drive - Backward < 14000 m3/h
View larger
CVAB-N - CVAT-N
New product
 |
ErP 2018 compliant - UVNR with variable speed drive |
|||
 |
 |
|||
- Centrifugal reaction turbine
- Configurable circular connection
- Soundproofing
Applications:
Installation inside or outside (with rainscreen roof) of buildings.
CAD / BIM
-
Description
-

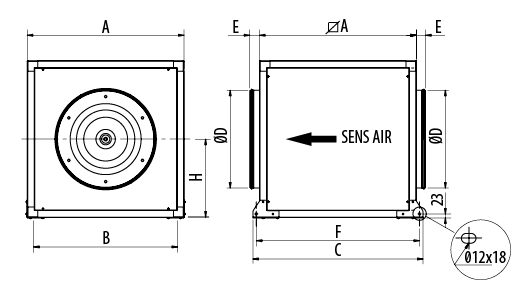

Dimensions
-
Documentation
-
Public Price
-
Software
-
References
2 versions:
Flow rates from 200 to 14,000 m3/ h.
Construction
Motorization
Selection - Standard fans
- CVAB-N: Single phase 230V 50Hz.
- CVAT-N: Three-phase 230 / 400V 50Hz.
Flow rates from 200 to 14,000 m3/ h.
Construction
- Frame in extruded aluminum profile with plastic corners.
- Waterproof galvanized steel box with double skin panel.
- Double skin acoustic insulation 25 mm thick glass wool (A1).
- Circular connection at the suction and discharge.
- Possibility of mounting the circular discharge connection on any side of the casing: in line, right, left, top.
- Reaction turbine mounted in direct coupling with the engine:
- In stapled aluminum sheet for CVAB-N models,
- Made of galvanized sheet steel, stapled for CVAT-N models 1,400, 2,000, 3,000, 4,000, 6,000 and 15,000, then welded for the other models.
Motorization
- AC motor in the air flow.
- Single-phase 230V 50Hz 1-speed version, variable in voltage:
- IP55, class F, thermal protection not connected in the terminal box. Air temperature between -40 and 60 ° C
- Version 1 speed three-phase 230 / 400V 50Hz, 4 or 6 poles, variable in frequency:
- IP55, class F, thermal protection (PTC) not connected in the terminal box. Air temperature between -20 and 40 ° C.
Selection - Standard fans
|
Model |
A |
B |
C |
ØD |
E |
F |
H |
|
CVAB-CVAT / 4 1400 / 250N D |
500 |
457 |
574 |
250 |
58 |
534 |
250 |
|
CVAB-CVAT / 4 2000 / 315N D |
500 |
457 |
574 |
315 |
58 |
534 |
250 |
|
CVAB-CVAT / 4 3000 / 355N D |
650 |
607 |
724 |
355 |
58 |
684 |
325 |
|
CVAB-CVAT / 4 4000 / 400N D |
650 |
607 |
724 |
400 |
58 |
684 |
325 |
|
CVAB-CVAT / 4 6000 / 450N D |
750 |
707 |
824 |
450 |
58 |
784 |
375 |
|
CVAB-CVAT / 4 9000 / 500N D |
800 |
757 |
874 |
500 |
58 |
834 |
400 |
|
CVAT / 4 12000 / 560N D |
900 |
826 |
977 |
560 |
58 |
937 |
450 |
|
CVAT / 4 16000 / 630N D |
1000 |
959 |
1077 |
630 |
58 |
1037 |
500 |
|
CVAT / 6 15000 / 710N D |
1100 |
1059 |
1177 |
710 |
58 |
1137 |
550 |
