K STD
Extraction or insufflation boxes
Direct drive - Action < 9500 m3/h
View larger

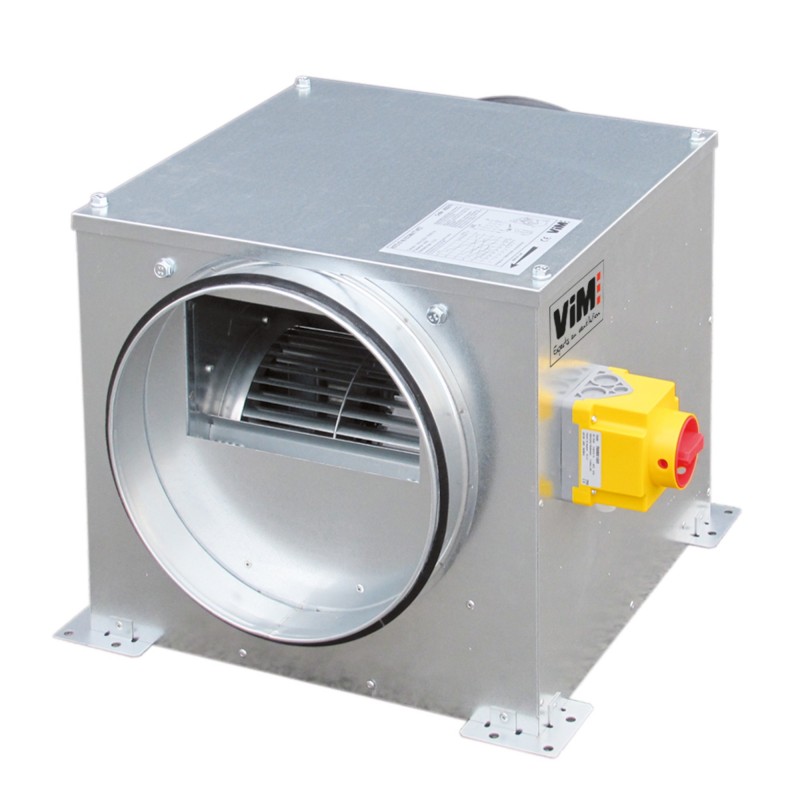

K STD
New product
 |
Sizes 16/25/38 - ErP 2018 compliant - UVNR |
|||
 |
Size 95 - Non-ErP compliant For smoke extraction alone or process ventilation |
|||
 |
 |
 |
||
- Bare, insulated 10 mm, insulated 50 mm
- Low noise level
- Optional filtration
- Careful sealing
- Switch + pressure switch mounted
- PACK PR option for constant pressure regulation
Applications:
Extraction or introduction of air.
Indoor or outdoor installation.
Horizontal or vertical mounting.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
Flows from 400 to 9,500 m3/h.
4 sizes: 16 / 25 / 38 / 95.
Filtering optional.
3 variants:
Construction
Motorization
Filtration as an accessory
Insulation
4 sizes: 16 / 25 / 38 / 95.
Filtering optional.
3 variants:
- NU: casing without insulation.
- IS: 10 mm insulation of 6-sided polyethylene foam.
- DB: 50 mm reinforced rock wool insulation on 6 sides.
Construction
- Casing in Z275 galvanized sheet steel equipped with 4 fixing lugs.
- Access to the filter through the cover.
- Circular connection taps with class D seals.
- Double inlet action fan with built-in motor.
- INTZ: padlockable proximity switch with mounted/wired position feedback.
- BDEZ: Fitted pressure switch, not connected to the aeraulics, to be adjusted on site.
Motorization
- Sizes 16: IP44 asynchronous single-phase motor 230V, 50Hz, class F, 1 speed with built-in thermal protection with manual reset.
- Sizes 25/38: IP55 asynchronous single-phase motor 230V, 50Hz, class F, 1 speed with built-in thermal protection with manual reset.
- Size 95: IP 20 asynchronous three-phase motor 230/400V, 50Hz, class F, 1 speed with built-in thermal protection with manual reset.
Filtration as an accessory
- Classification according to EN 779 and ISO 16890:
- FIGR Pleated Filters G4 Coarse 70%.
- FIFI M5 ePM10 75 mini pleat filters%.
- FIFI F7 ePM1 55 mini pleat filters%.
Insulation
- IS version: acoustic and thermal insulation in 10 mm B-s2, d0 or M1 polyethylene foam.
- DB version: reinforced acoustic and thermal insulation in 50 mm rock wool, density 70 kg/m3, covered with a woven high-speed veil, fire classification A2-s1, d0 or M0.
|
Version |
Size |
A |
B |
C |
ØD |
E |
F |
|
NU |
|||||||
|
KSTD 16 |
450 |
450 |
426 |
355 |
226 |
534 |
|
|
KSTD 25 |
600 |
600 |
504 |
450 |
258 |
754 |
|
|
KSTD 38 |
702 |
702 |
656 |
500 |
382 |
853 |
|
|
KSTD 95 |
892 |
892 |
800 |
630 |
452 |
1043 |
|
|
DB Insulation 50mm |
|||||||
|
KSTD 16 |
530 |
530 |
518 |
355 |
268 |
680 |
|
|
KSTD 25 |
675 |
675 |
595 |
450 |
319 |
823 |
|
|
KSTD 38 |
772 |
772 |
737 |
500 |
420 |
915 |
|
|
KSTD 95 |
962 |
962 |
868 |
630 |
480 |
1112 |
|
Version |
Size |
G |
H |
ØJ |
K |
Weight (kg) |
|
|
with INTZ |
with |
||||||
|
NU |
|||||||
|
KSTD 16 |
474 |
50 |
9 |
95 |
120 |
18 |
|
|
KSTD 25 |
623 |
50 |
9 |
95 |
120 |
36 |
|
|
KSTD 38 |
724 |
50 |
9 |
95 |
120 |
53 |
|
|
KSTD 95 |
925 |
75 |
12 |
95 |
120 |
82 |
|
|
DB Insulation 50mm |
|||||||
|
KSTD 16 |
554 |
50 |
9 |
95 |
120 |
30 |
|
|
KSTD 25 |
698 |
50 |
9 |
95 |
120 |
57 |
|
|
KSTD 38 |
805 |
75 |
12 |
95 |
120 |
77 |
|
|
KSTD 95 |
995 |
75 |
12 |
95 |
120 |
102 |
|
