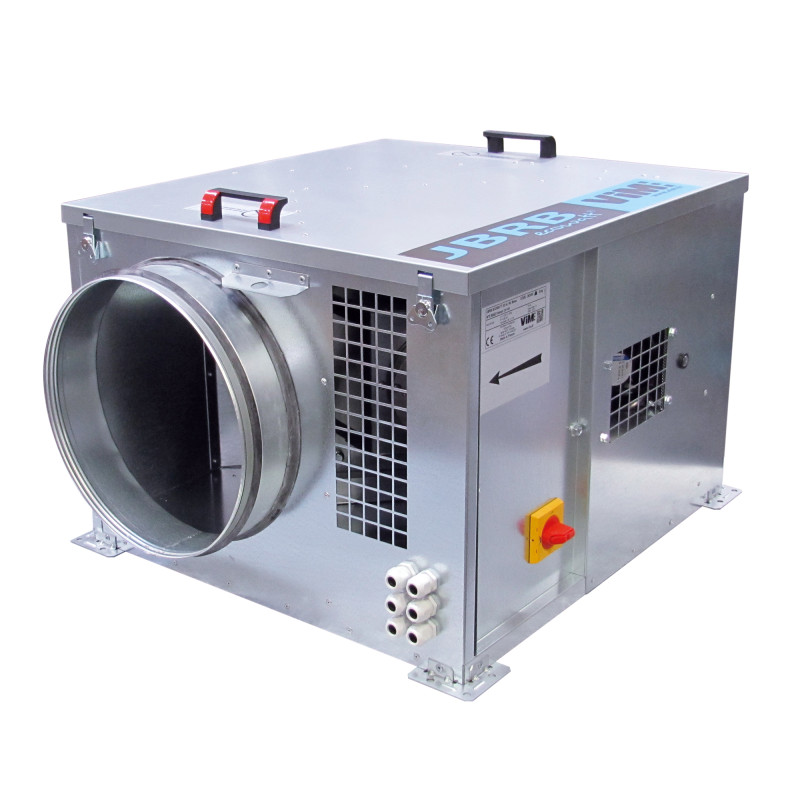

JBRB ECOWATT ASR
Extraction boxes
Direct drive - Reaction - ECM compatible ASR < 9,200 m3/h
View larger
JBRB ECOWATT ASR
New product
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
Flow rates from 1000 to 9200 m3/h.
6 sizes: 30 / 38 / 48 / 70 / 82 / 92.
Online construction.
Circular connection.
Insulated version: acoustic insulation with 25 mm glass wool (fire classification A2-s1, d0 or M0) in double-skin panels.
Construction
Motorization
6 sizes: 30 / 38 / 48 / 70 / 82 / 92.
Online construction.
Circular connection.
Insulated version: acoustic insulation with 25 mm glass wool (fire classification A2-s1, d0 or M0) in double-skin panels.
Construction
- ZM310 alloy steel sheet casing (Zn - Al - Mg) for environments with C4 high durability or C5 medium durability corrosivity, equipped with 4 fixing lugs (sizes 30 and 38) or 2 transverse omegas (sizes 48 to 92).
- Lifting by 2 steel legs or by slinging through the omegas.
- Connection tappings with class D sealing gaskets.
- High performance reaction turbine in Z275 galvanized steel.
- Direct coupling.
- Cover equipped with 2 or 4 handles, removable without tools to ensure easy access to the inside of the box for cleaning.
- Mounted/wired padlockable proximity switch.
- Pressure transmitter mounted and wired on specific connection terminal block for ASR ECOWATT systems.
- IS version: acoustic insulation with 25 mm M0 glass wool in double-skin panels.
- Another option: corrosion resistance treatment, contact us.
Motorization
- Electronically Commutated Motor ECM out of airflow:
- 30, 38, 48, 70, 82: IP54, class F, single-phase 230V, 50Hz.
- 30, 38, 48, 70, 92: IP 54, class F, three-phase 400V, 50Hz.
- Electronically controlled thermal protection approved for C4 operation.

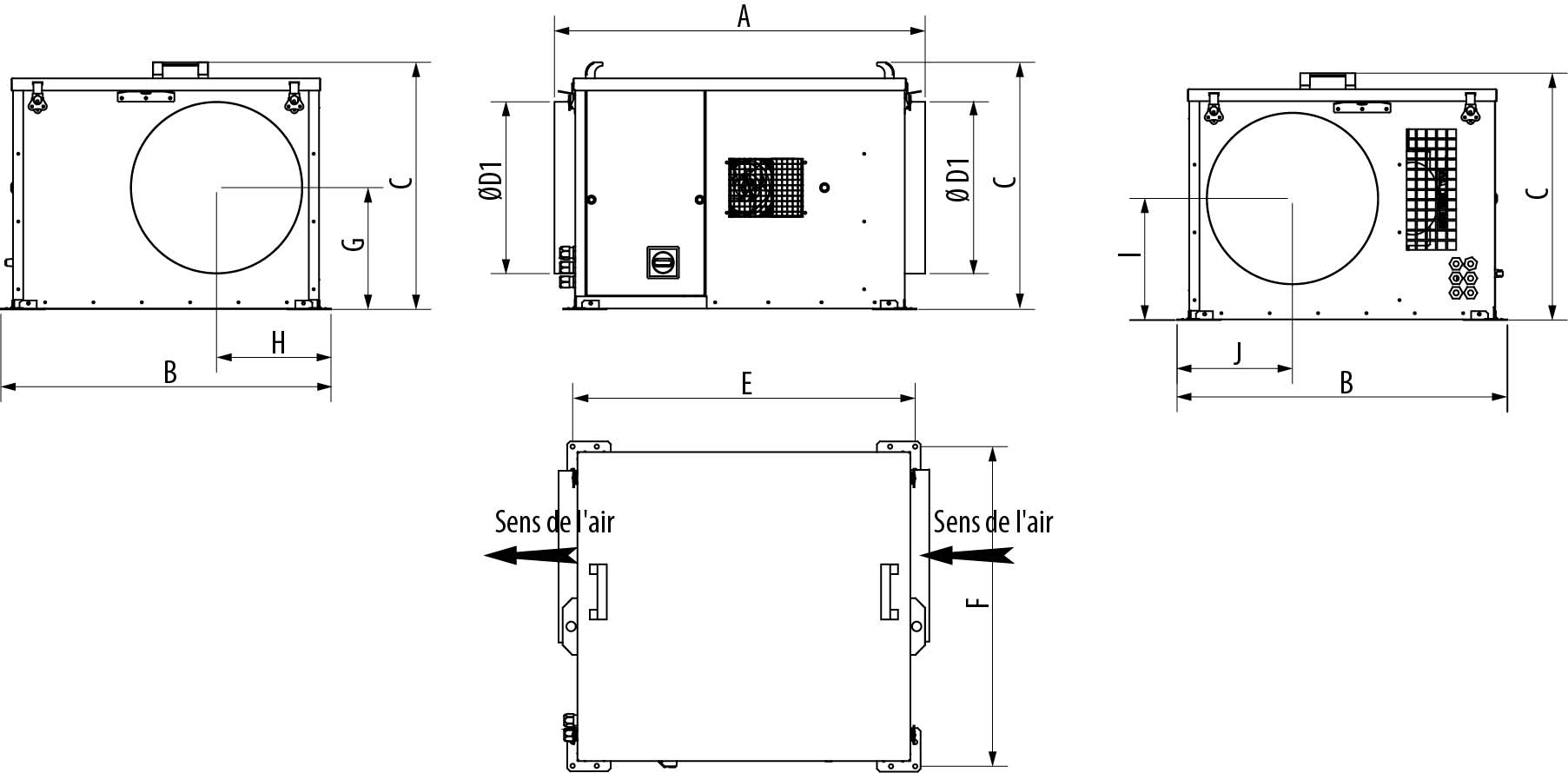

JBRB ECOWATT ASR 30 / 38
| Size | A | B | C* | D1 | E | F | G | H | I | J | Weight (kg) |
| 30 | 1019 | 820 | 568 | 400 | 892 | 797 | 267 | 271 | 267 | 271 | 64 |
| 38 | 1153 | 938 | 631 | 500 | 1036 | 907 | 306 | 331 | 306 | 331 | 78 |
*IS version: +27 mm

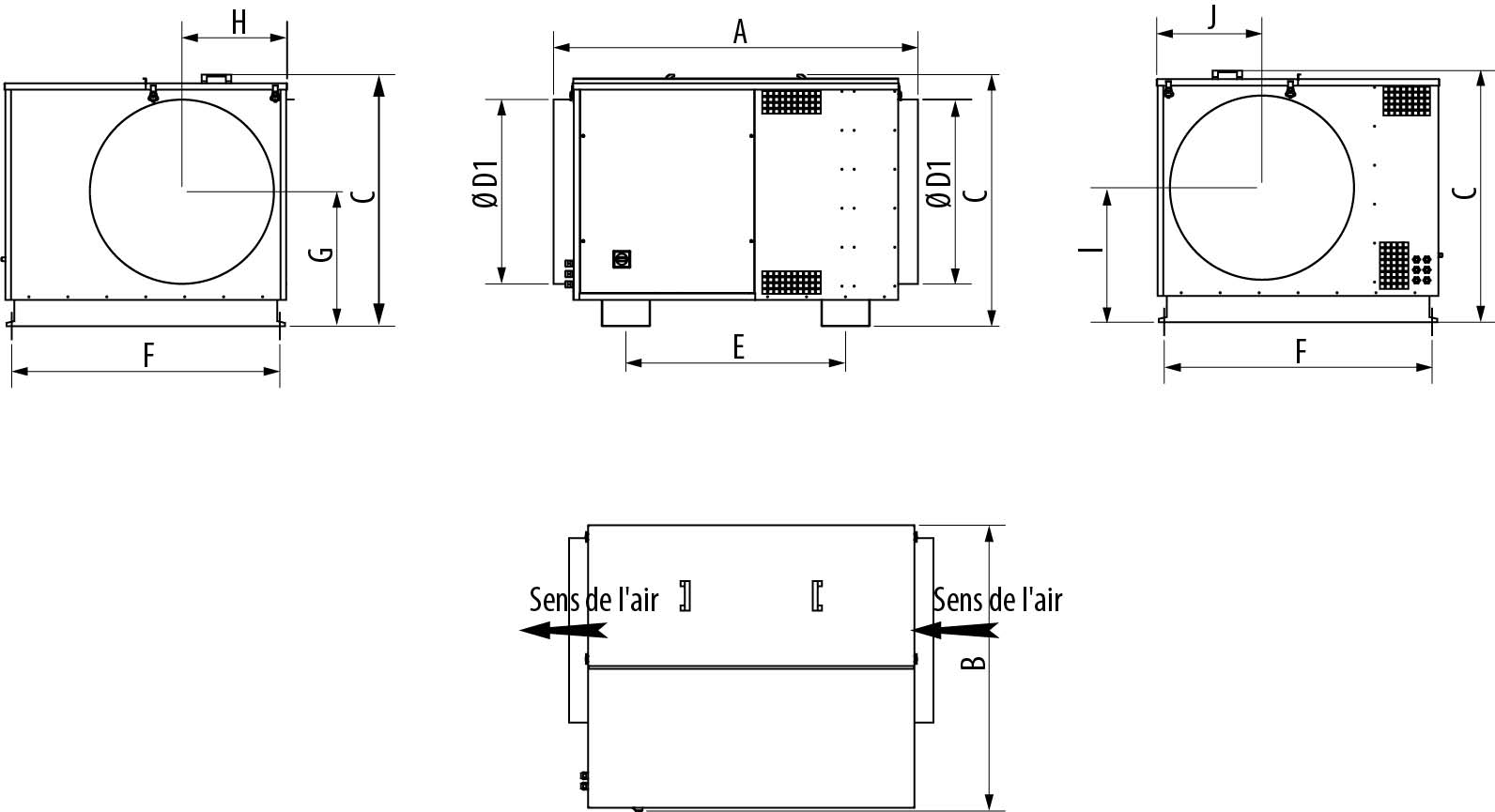

JBRB ECOWATT ASR 48 / 70 / 82 / 92
| Size | A | B | C* | D1 | E | F | G | H | I | J | Weight (kg) |
| 48 | 1165 | 985 | 800 | 560 | 700 | 918 | 433 | 330 | 433 | 330 | 107 |
| 70 | 1280 | 1030 | 880 | 630 | 815 | 970 | 473 | 365 | 473 | 365 | 121 |
| 82 | 1404 | 1100 | 970 | 710 | 846 | 1032 | 518 | 405 | 518 | 405 | 170 |
| 92 | 1404 | 1100 | 970 | 710 | 846 | 1032 | 518 | 405 | 518 | 405 | 170 |
*IS version: +27 mm
↑
