VORAX® BASIC
Economic hoods
Simple capture
View larger
VORAX® BASIC
New product
 |
- Simplified design
- Visible faces in AISI 304L stainless steel with SB brushed finish
- Height 400 and 500 mm
- Hood with vertical sides at constant height
- Concealed fixing
Application
Entry-level and mid-range commercial catering.
Capture and filtration of pollutants and heat.
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
Simple back-to-back.
Monoblock modules of length 1000, 1500, 2000, 2500, 3000 mm.
Extensions of depth 1000, 1250, 1500 mm.
Height 400 and 500 mm.
Hood
Packaging
Monoblock modules of length 1000, 1500, 2000, 2500, 3000 mm.
Extensions of depth 1000, 1250, 1500 mm.
Height 400 and 500 mm.
Hood
- Hood at constant height for a maximum compartment volume.
- Self-supporting construction without visible fixing.
- One-piece installation recommended - alignment and fixing to be taken care of on site.
- Leveling adjustment from inside the hood and clip-on mounting covers.
- Visible faces in AISI 304L (1.4307) austenitic stainless steel with SB brushed finish.
- Back and top faces in galvanized steel.
- Standard galvanized media filters, M0 stainless steel frame 397x472x25 mm.
- Stainless steel cover plate.
- Perimeter gutter.
- Stainless steel purge and plug - 1/2 ”gas thread.
Packaging
- Fixing on wooden pallet and strapping, heat-shrink filming.
- Stainless steel exterior faces protected by PVC film.
VORAX® BASIC
Optional lighting - Supplied non-drilled as standard
|
Module |
Total length |
Capture length |
Recommended number of extraction ports |
A |
B |
D |
E |
Advanced 1000 |
Advanced 1250 |
Advanced 1500 |
|||
|
F |
G |
F |
G |
F |
G |
||||||||
|
1000 |
1002 |
1000 |
1 |
501 |
968 |
920 |
183 |
655 |
433 |
655 |
683 |
655 |
|
|
1500 |
1502 |
1500 |
1 |
751 |
1468 |
1420 |
183 |
1265 |
433 |
1265 |
683 |
1265 |
|
|
2000 |
2002 |
2000 |
2 |
513 |
976 |
1968 |
1920 |
183 |
1265 |
433 |
1265 |
683 |
1265 |
|
2500 |
2502 |
2500 |
2 |
644.5 |
1213 |
2468 |
2420 |
183 |
1265 |
433 |
1265 |
683 |
1265 |
|
3000 |
3002 |
3000 |
2 |
644.5 |
17/3 |
2968 |
2920 |
183 |
1265 |
433 |
1265 |
683 |
1265 |
Detailed specifications
Text catalog pages (CT)
Public tariff price
Price catalog pages (CP)
Installation instructions
Installation instructions (NT)
Electrical / ATEX Certificates
Electrical CE Declarations (DCCE)
Prescription assistance
Specification text (TP)
Commercial documents
Commercial leaflet (FCOM)
OPTAIR Kitchen
Download OPTAIR Cuisine

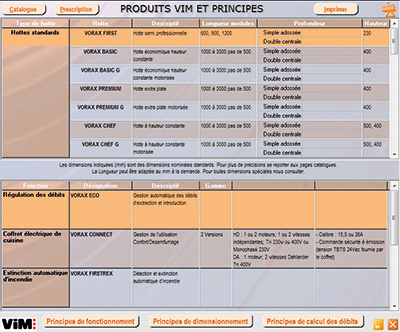

NEW - Software for calculating flow rates and sizing hoods in professional kitchens
OPTAIR CUISINE must be completely re-installed.
For any operating problems, please send your request by email to optair@vim.fr
OPTAIR CUISINE must be completely re-installed.
For any operating problems, please send your request by email to optair@vim.fr
 |
|
