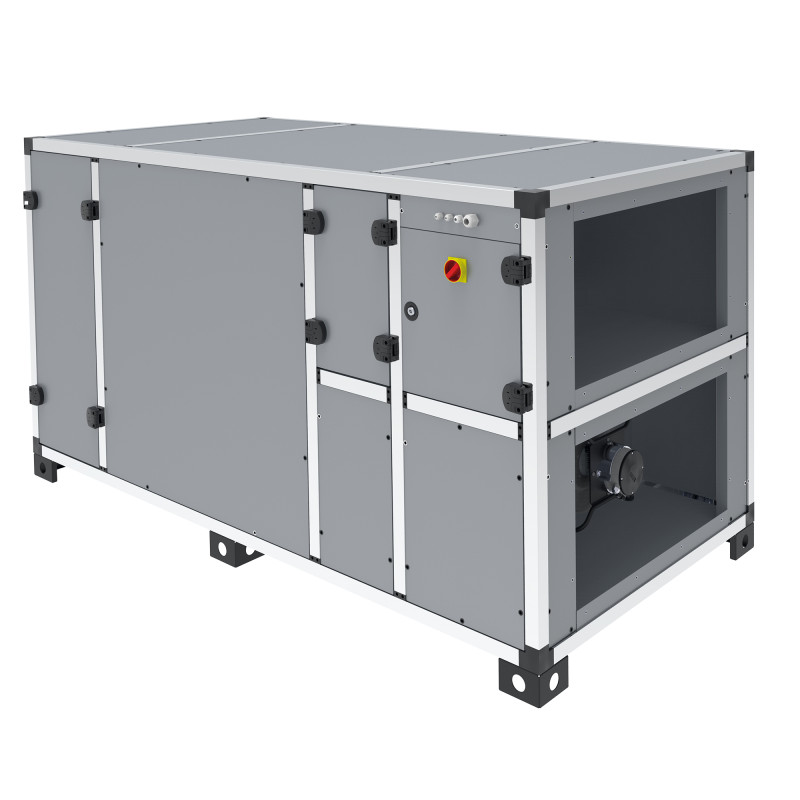

CAD HR BASIC V - April 2025

Double flow air handling unit V with exchanger

Counter current - Reaction - ECM < 5800 m3/h

View larger

CAD HR BASIC V - April 2025

Double flow air handling unit V with exchanger

Counter current - Reaction - ECM < 5800 m3/h

	ErP 2018 compliant - UVNR Variable EC motors			Filters Supplied as standard: Blowing fresh air: FIFI F7 ePM1 55 mini-pleat filters%. Resumption stale air: FIFI M5 ePM10 50 pleated filters%. Available as an option: Blowing fresh air: FIGR G4 Coarse 70 pleated filter% + FIFI F7 ePM1 55 minifold filter%, FIFI M5 ePM10 50 pleated filter% + FIFI F9 ePM1 80 minipleat filter%. Resumption stale air: FIFI F7 ePM1 55 mini-pleat filter%

Air-to-air plate heat exchanger produced by RECUTECH, a company participating in the Eurovent program. Certification for AAHE.

Double skin insulation 45 mm
With or without integrated battery
Freewheel jet fan
Low consumption ECM engine
Thermal efficiency up to 90%

Application

Air introduction and extraction with energy recovery.
Indoor or outdoor use with rain cover.

Description
Dimensions
Documentation
Public Price
Software
References

7 sizes: 06 (600 m³/h) / 14 (1,400 m³/h) / 18 (1,800 m³/h) / 25 (2,500 m³/h) / 33 (3,300 m³/h) / 42 (4,200 m³/h) / 58 (5,800 m³/h)
8 models according to types of integrated batteries:

	Electric post-heating	Reversible water	Electric antifreeze
E
ED			■
EI	■
EDI	■		■
E2R		■
ED2R		■	■
E3R		■
ED3R		■	■

Vertical construction with in-line duct connection.
Right (R) or left (L) servitude in the direction of the blown air.
New integrated EVCO regulation specific to VIM . Communicating Modbus RTU on RS485 port or Modbus TCP/IP, BACnet IP, remote EPJcolor touch control.
Bypass 100% modulating.

Construction

Self-supporting structure in extruded aluminum profile, rounded corners.
45 mm double skin panel in alloy steel (Zn - Al - Mg) ZM310 for environments with corrosiveness C4 medium durability or C5 low durability, insulation by injected polyurethane foam (42 kg/m3 – 0.0246W/mk) fire classification B-S2, d0 (M1).
Vertical construction with in-line connection by circular tappings equipped with sealing joints.
Galvanized steel frame for floor mounting.
Possibility of adapting the position of certain tappings on site.
Access to filters, exchanger, battery and fan from the side.
Ø1/2˝ purge for condensate drainage.

Interchange

High efficiency counter-flow aluminum plate heat exchanger. Thermal efficiency up to 90%.
Motorized bypass 100%, integrated into the unit on the fresh air network.
230V single-phase 3-point servomotor controlled proportionally by adjusting the running time.

Motorization

Freewheel type fan with metal reaction (incombustible A1).
High efficiency ECM motor, 400V 50/60Hz on size 45, 230V 50/60Hz on other sizes.
Control by 0…10V signal.
CAD HR BASIC E/EI/EC 06: IP44 Class B,
CAD HR BASIC E/EI/EC 14 - 18 - 25 - 33: IP54 Class B.
CAD HR BASIC E/EI/EC 42 and 58: IP54 Class F.
Electronic thermal protection.

Filtration

Filters supplied as standard:

Fresh air blowing: FIFI F7 ePM1 55 mini-pleat filters%.
Stale air intake: FIFI M5 ePM10 50 pleated filters%.

Optional filters available:

Blowing fresh air:
- FIGR G4 Coarse 70 pleated filter% + FIFI F7 ePM1 55 minifold filter%,
- FIFI M5 ePM10 50 pleated filter% + FIFI F9 ePM1 80 minipleat filter%.
Stale air intake: FIFI F7 ePM1 55 mini-pleat filter%

EI post-heating electric battery

Connected to the regulation, it allows the temperature of the blown air to be regulated.
Equipped with safety thermostat with automatic reset (set point 55°C) and manual reset (set point 70°C).

ED antifreeze electric battery

Placed on the fresh air before the exchanger, prevents the risk of freezing on the exchanger.
Assembled, wired and controlled by the regulator.
Safety thermostat with automatic reset (set point 55°C) and manual reset (set point 70°C).

ER2R and ER3R reversible hot/cold water battery

2-row (ER2R) or 3-row ER3R water battery.
Composed of copper tubes with aluminum fins on a galvanized steel frame.
Copper collector.
Threaded connecting tube.
Condensate outlet to be connected to a siphon when used in cold conditions.
230V/24V 10VA power supply for power supply of 2V or 3V valve, CO2 probe, fresh air register servomotor...

Air treatment selection

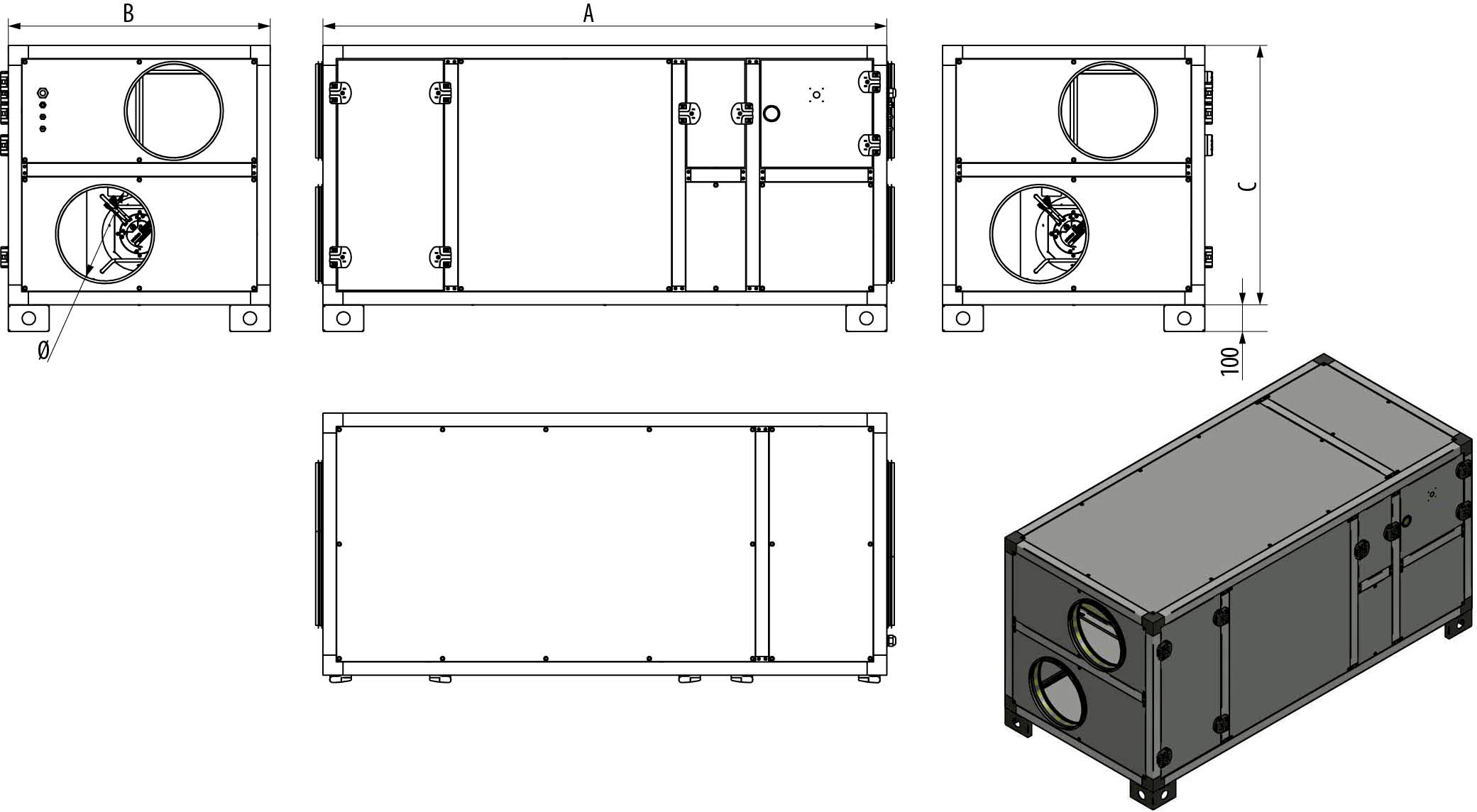

CAD HR BASIC 06 / 14 / 18 / 25

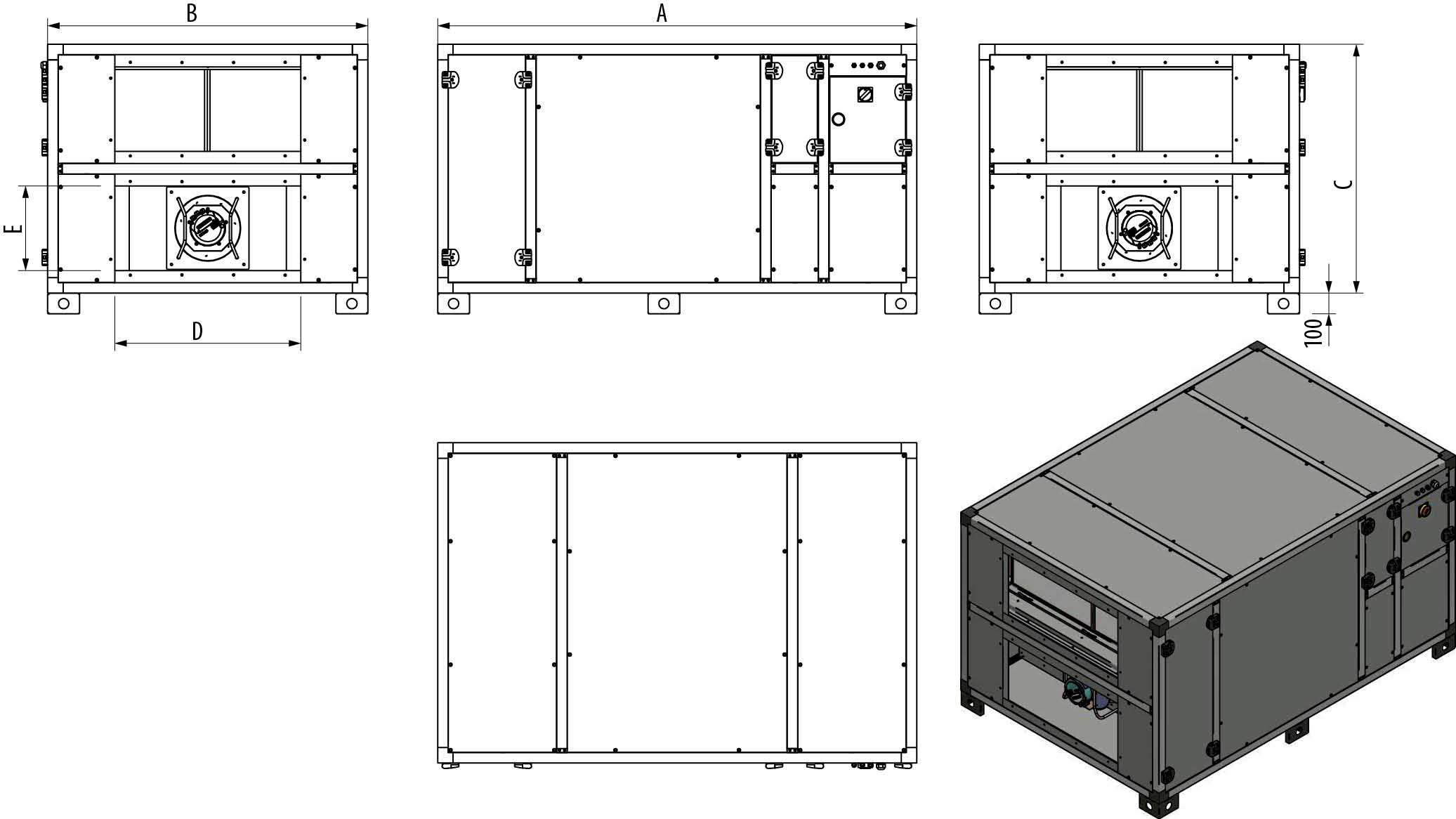

CAD HR BASIC 33 / 42 / 58

Model	A	B	C	Ø or ØDxE	Weight (Kg)
CAD HR BASIC 06 V	1680	780	740	250	176
CAD HR BASIC 14 V	1980	960	910	315	260
CAD HR BASIC 18 V	2130	990	980	355	282
CAD HR BASIC 25 V	2420	1100	1150	400	380
CAD HR BASIC 33 V	2320	1550	1204	900X410	490
CAD HR BASIC 42 V	2800	1415	1400	1000X510	590
CAD HR BASIC 58 V	2800	1975	1400	1400X510	753
