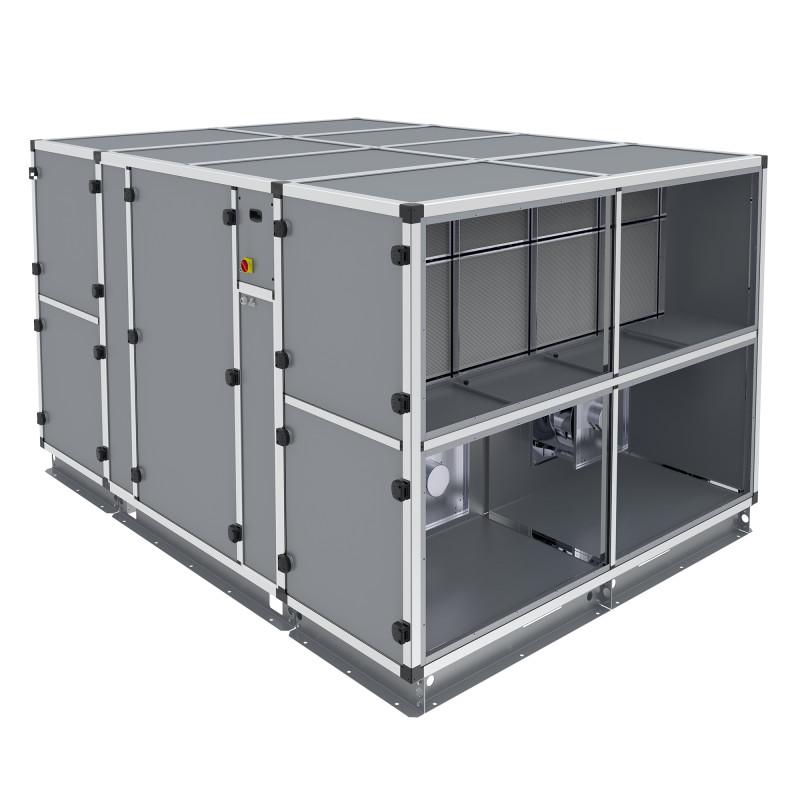

CAD HR BASIC XL

Double flow air handling unit V with exchanger

Counter current - Reaction - ECM < 22,000 m3/h

View larger

CAD HR BASIC XL

Double flow air handling unit V with exchanger

Counter current - Reaction - ECM < 22,000 m3/h

	ErP 2018 compliant - UVNR Variable EC motors			Filters Supplied as standard: Blowing fresh air F7 (ePM2.5 70%). Reprise stale air M5 (ePM10 50%).

Air-to-air plate heat exchanger produced by the RECUTECH company which participates in the Eurovent program. Certification for AAHE.

High air flow
Double skin insulation 45 mm
Freewheel reaction fan
Low consumption ECM motor
New Modbus / Bacnet communicating regulation
Thermal efficiency up to 90%

Application

Air intake and extraction with heat recovery in tertiary premises.
Installation on feet or frame, indoors or outdoors with rainproof roof.
Regulation of the blowing temperature by electric coil or water coil depending on the model.

Tertiary buildings

Industrial and logistics buildings

Description
Dimensions
Documentation
Public Price
Software
References

5 Sizes: 80 (8,000 m³/h), 105 (10,500m³/h), 130 (13,000 m³/h), 170 (17,000 m³/h), 220 (22,000m³/h).
10 models according to the types of integrated batteries:

	Electric post-heating	Post-heating hot water	Electric antifreeze
E
ED			■
EI	■
EDI	■		■
EC		■
EDC		■	■
ECB		■
EDCB		■	■

Possibility of cold battery or change over battery (hot/cold) by additional BAER battery module.
Vertical construction.
Connecting rectangular ducts in line.
New VIM specific integrated EVCO regulation.

Communicating Modbus RTU on RS485 or Modbus TCP/IP port, BACnet IP, remote ETD EVCO touch control.

Bypass 100% modulating.

Modular CTA delivered in 3 parts:

1 extraction fan module / fresh air filtration and defrosting battery (option).
1 exchanger and bypass module.
1 blowing fan module and post-heating/filtration battery for stale air suction.

Construction

Self-supporting structure in extruded aluminum profile.
Double skin panel:
- Exterior: Alloy steel panels (Zn - Al - Mg) ZM310 for environments with C4 medium durability or C5 low durability corrosivity, 70mm thick insulation in injected polyurethane foam (42 kg/m3, 0.0246W/mk) fire classification B-S2, d0.
- Interior: Alloy steel panels (Zn - Al - Mg) ZM310, corrosion resistance C5.
Alloy steel frame (Zn - Al - Mg) ZM310 thickness 3 mm, height 170 mm
Horizontal construction with rectangular in-line connection.
Access to filters, exchanger, battery, and fan via the main face.
Ø1/2 purge for condensate drainage.
Classification according to EN 1886: D1 / L2 / T2 / TB2
Airtightness according to standard EN13141-7:
- External leaks: class A1
- Internal leaks: class A2

Interchange

Aluminum plate exchanger, counter-current, high efficiency, low pressure loss.

Modulating motorized bypass

Delivered assembled, installed on the fresh air network.
Bypass 100% with air passage closing flap on the exchanger when the bypass is open, to take full advantage of free cooling.
230V single-phase, proportional servo motor.

Motorization

Freewheel type reaction fans associated with an electronically commutated motor, ECM motor.
Motor with integrated electronic thermal protection.
400V 50/60Hz IP54 Class B three-phase motor.

Filters

Fresh air blowing: FIFI F7 ePM1 55 mini-pleat filters%.
Stale air intake: FIFI M5 ePM10 50 mini-pleat filters%.

Electric post-heating battery (DI)

Connected to the regulation, it allows the temperature of the blown air to be regulated.
Equipped with safety thermostat with automatic reset (set point 50°C) and manual reset (set point 65°C).
Separate power supply, connection to specific external box equipped with a proximity switch.

Hot water battery for water regime above 60/40 HT - High Temperature

2-row battery, made up of copper tubes with aluminum fins on a galvanized steel frame.
Copper collector, threaded connecting tube.

Hot water battery for water regime below 60/40 BT - Low Temperature

2-row (size 80) or 3-row (size 130) battery, made up of copper tubes with aluminum fins on a galvanized steel frame.
Copper collector, threaded connecting tube.

Electric antifreeze battery - DD

Placed on the fresh air before the exchanger, prevents the risk of freezing on the exchanger.
Assembled, wired and controlled by the regulator.
Separate power supply, connection to specific external box equipped with a proximity switch.
Safety thermostat with automatic reset (set point 50°C) and manual reset (set point 65°C).

Accessories

BAER - Reversible hot/cold battery module.

Module with self-supporting structure in extruded aluminum profile.
Double skin panel:
- Exterior: Alloy steel panels (Zn - Al - Mg) ZM310 for environments with C4 high durability or C5 medium durability corrosivity, 70mm thick insulation in injected polyurethane foam (42 kg/m3, 0.0246W/mk) fire classification B-S2, d0.
- Interior: Alloy steel panels (Zn - Al - Mg) ZM310, corrosion resistance C5.
Support feet in galvanized steel painted black.
3-row battery, made up of copper tubes with aluminum fins on a galvanized steel frame.
Copper collector, threaded connecting tube.
Condensate collection tray.

CSIL - Acoustic enclosure

Self-supporting structure in extruded aluminum profile.
Double skin panel:
- Exterior: Alloy steel panels (Zn - Al - Mg) ZM310 for environments with corrosiveness C4 high durability or C5 medium durability, 70mm thick insulation in injected polyurethane foam (42 kg/m3, 0.0246W/mk) fire classification B-S2, d0.
- Interior: Alloy steel panels (Zn - Al - Mg) ZM310, corrosion resistance C5.
Support feet in galvanized steel painted black.
200 mm thick baffle comprising 55 kg/m² mineral wool inside a galvanized steel frame. Distance between baffles 150 mm.
Suction or discharge grid.
Motorized register.
