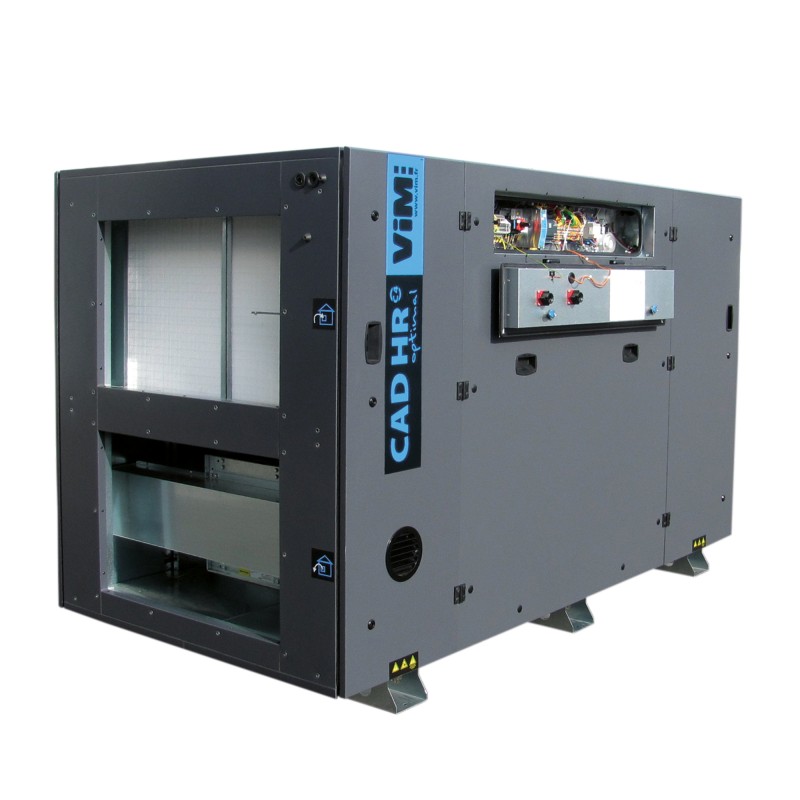

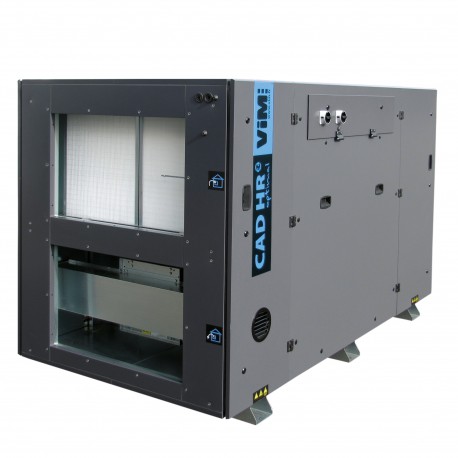

CAD HR OPTIMAL C4
Double flow air handling unit V with exchanger
Counter flow C4 - Backward - ECM < 8,000 m3 / h
View larger
CAD HR OPTIMAL C4
New product
 |
ErP - UVNR compliant - Variable EC motors |
Filters
|
|||
 |
 |
 |
 |
||
 |
 |
 |
 |
 |
|
 |
Air-to-air plate heat exchanger produced by the RECUTECH company, which participates in the Eurovent program. Certification for AAHE. |
- Patented solution, certified C4 - 400 ° C ½ h
- Thermal efficiency up to 90%
- Modbus / BACnet communicating regulation
- High quality of finish
- Double skin rock wool insulation 50 mm
- Batteries integrated in the air handling unit
- High performance freewheel fans
- Low consumption ECM motors
Applications:
VMC double flow C4 with energy recovery for collective housing buildings and establishments open to the public (EHPAD, hotel residences, homes, sports halls).
Certified solution 400 ° ½ hour (maximum diameter of the vents 160).
Complies with the decree of February 14, 2000 relating to ERP (Establishment Receiving the Public) CH41 - CH43 and the decree of June 19, 2015 amending the decree of January 31, 1986 relating to the fire protection of buildings of dwelling.
Meets the requirement of non-propagation of fire and smoke in any room other than the one where the fire started. The operation of the supply and exhaust fans is considered to be permanent.
No need to install a shut-off device (flame arrestor device, fire damper, etc.)
No mixing of the extracted air with the air blown in by the exchanger.

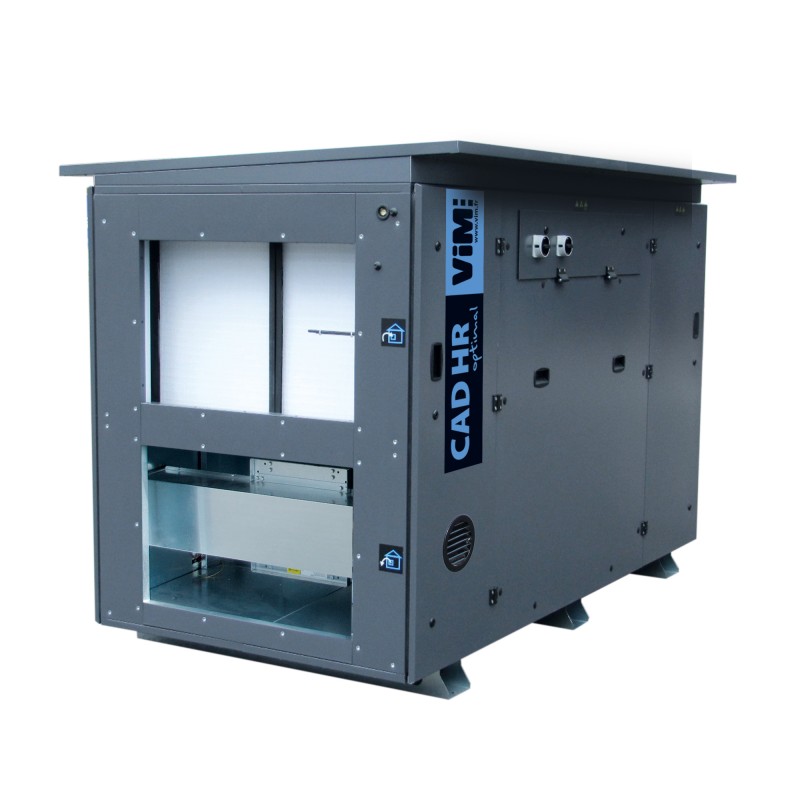

Indoor or outdoor installation with roof.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
7 sizes: 12 (1,200 m3/ h), 18 (1,800 m3/ h), 25 (2,500 m3/ h), 33 (3,300 m3/ h), 45 (4,500 m3/ h), 56 (5,600 m3/ h), 80 (8000 m3/ h),
From size 12 to 45, 8 models depending on the types of integrated batteries:
* Model without antifreeze exchanger coil, for regions where the reference temperature is higher than -5°C.
Sizes 56 and 80, 2 models: E = without coil / ED = with integrated defrost coil. The post-heating batteries are only provided in BAHR external battery box.
One-piece vertical (V) construction.
Duct connection configurations:
Integrated SCHNEIDER M172 regulation specific to VIM .
Communicating Modbus RTU on RS485 or Modbus TCP / IP, BACnet IP or MSTP port.

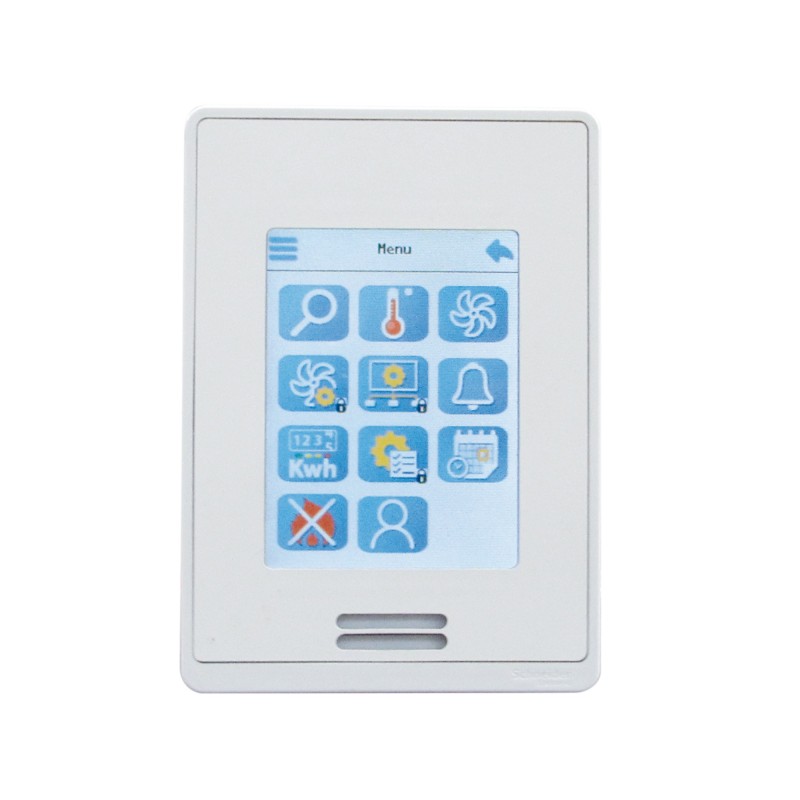

ETD M172 IP20 remote touch control.
Construction From size 12 to 45, 8 models depending on the types of integrated batteries:
| CAD HR OPTIMAL C4 | TYPE OF BATTERY | |||
| Post-heating electric | Post-heating hot water | Reversible water post heating / cooling | Electric anti-freeze exchanger | |
| E* | ||||
| ED | ■ | |||
| EI* | ■ | |||
| EDI | ■ | ■ | ||
| EC* | ■ | |||
| EDC | ■ | ■ | ||
| ER* | ■ | |||
| EDR | ■ | ■ | ||
Sizes 56 and 80, 2 models: E = without coil / ED = with integrated defrost coil. The post-heating batteries are only provided in BAHR external battery box.
One-piece vertical (V) construction.
Duct connection configurations:
- VLD: in line, straight easement.
- VLG: in line, left easement.
- VLEXD: in line with roof, straight easement.
- VLEXG: in line with roof, left easement.
Integrated SCHNEIDER M172 regulation specific to VIM .
Communicating Modbus RTU on RS485 or Modbus TCP / IP, BACnet IP or MSTP port.
ETD M172 IP20 remote touch control.
- Self-supporting construction in 50 mm double skin panels.
- Insulation by rock wool th. 50 mm, density 40 kg / m³, thermal conductivity 0.037 W / (mk) (20/80 ° C) - Classification A1.
- Exterior finishes in pre-painted, grained galvanized steel in dark gray RAL7024. Corrosion resistance RC3, UV resistance RUV3 according to EN 10169.
- Z275 galvanized steel interior finishes.
- Galvanized steel frame, height 100 mm, up to size 45, and 155 for sizes 56 and 80, drilling for fixing anti-vibration mounts or leveling feet.

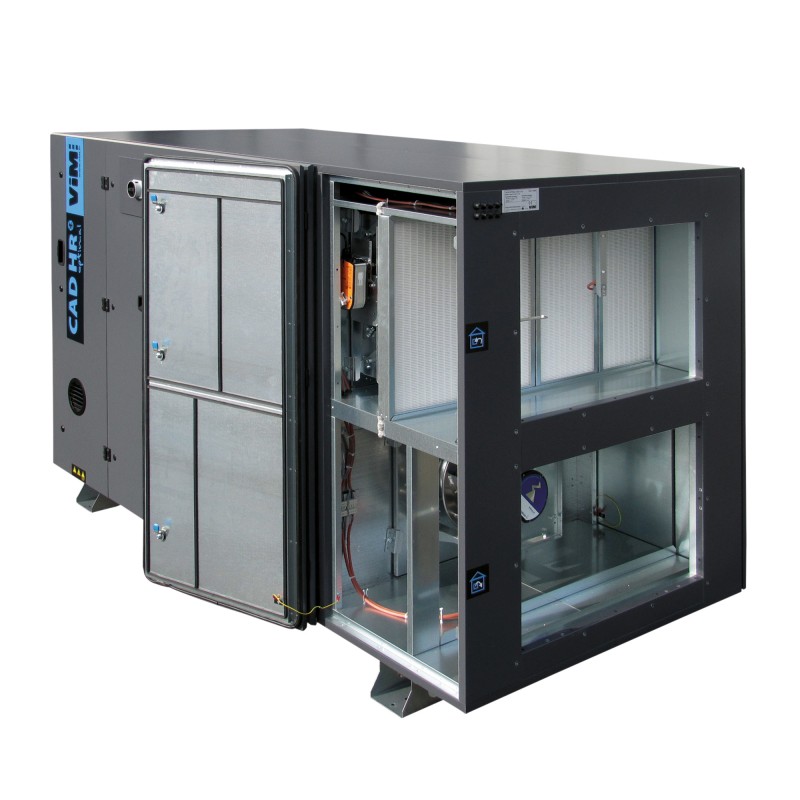

- Access doors to the main components on hinges and double seals. equipped with handles.
- Central access panel to the screwed exchanger fitted with double seals and handles.
- Specific hatch on hinges for access to the regulation.
- Rectangular connection by flange or flexible sleeve.
Classification
- Classification EN 1886 D2 / L2 / F9 / T2 / TB3 according to tests carried out by VIM .
Exchanger
- High efficiency air / air countercurrent heat exchanger made of aluminum for an operating temperature of up to 80 ° C.
- Thermal efficiency up to 90%.
- Double stainless steel condensate collection trays (on supply and discharge) and 32 diameter siphons.
Bypass 100%
- Placed on the extract air controlled by a proportional servomotor, used for free cooling and smoke extraction mode. Bypass damper blades fitted with gaskets to ensure maximum tightness (Class 4 according to EN1751).
Motorization
- Metal freewheel type jet fans associated with an electronically commutated motor, ECM motors.
- Single-phase or three-phase motors with integrated electronic protection:
- CAD HR OPTIMAL OPTIMAL C4 12/18/25/33: Mono 230V, 50 / 60Hz, IP54, class F, control by 0-10V signal.
- CAD HR OPTIMAL OPTIMAL C4 45/56/80: Tri 400 V, 50 / 60Hz, IP54, class F, control by 0-10V signal.
Filtration
- Filters supplied as standard:
- Fresh air supply F7 (ePM1 55%).
- M5 stale air return (ePM10 75%).
- Filters available as an option:
- Fresh air supply G4 + F7 (Coarse 70% + ePM1 55%) or M5 + F9 (ePM10 75% + ePM1 80%).
- Stale air return F7 (ePM1 55%).
| Size | Quantity | FRESH AIR SUPPLY | EXHAUST AIR RETURN | |
| Pre-filter option G4 (Coarse 70%) or M5 (ePM10 75%) (mm) |
Standard filter F7 (ePM1 55%) or F9 (ePM1 80%) option (mm) |
Standard filter M5 (ePM10 75%) or F7 (ePM1 55%) as replacement (mm) |
||
| 12 | 1 | 605x388x48 | 605x388x96 | 605x388x48 |
| 18 | 1 | 735x388x48 | 735x388x96 | 735x388x48 |
| 25 / 33 | 2 | 529x518x48 | 529x518x96 | 529x518x48 |
| 45 | 2 | 578x590x48 | 578x590x96 | 578x590x48 |
| 56 | 3 | 560x640x48 | 560x640x96 | 560x640x48 |
| 80 | 4 | 543x690x48 | 543x690x96 | 543x690x48 |
Integrated antifreeze electric coil
- Guarantees the permanent operation of the unit:
- No risk of the exchanger freezing.
- No reduction in flow rates.
- Resistance in AISI 430 stainless steel.
- Safety thermostat with automatic reset setpoint 55 ° C, manual reset 80 ° C.
- Proportional control by static relay.
- Sizes 25/33/45/56 and 80: defrost coil power supply by separate power supply with its own proximity switch. In the case of an EDI model (with electric post-heating coil), the power supply of the 2 batteries will be connected to the same proximity switch.
Electric heater EI / EDI
- Resistance in AISI 430 stainless steel.
- Safety thermostat with automatic reset setpoint 55 ° C, manual reset 80 ° C.
- Proportional control by static relay.
- Sizes 25/33/45: separate battery power supply with its own proximity switch. In the case of an EDI model (with electric defrost and post-heating coil), the power supply for the 2 coils will be connected to the same proximity switch.
EC1R / EDC1R, EC2R / EDC2R hot water coil or ECF hot water coil
- 1 or 2 row water coil, hot water use.
- Frost protection by contact probe.
- Construction: copper tubes and collectors, threaded connection tubes, aluminum fins, galvanized steel frame.
- Motorized 3-way valve (24V) proportional by 0-10V signal (accessory).
Reversible hot / cold water coil ER or ECF cold coil
- 4-row water coil, use in hot water or chilled water.
- Frost protection by contact probe.
- Construction: copper tubes and collectors, threaded connection tubes, aluminum fins, galvanized steel frame.
- Motorized 3-way valve (24V) proportional by 0-10V signal (accessory).
- Stainless steel condensate collection tray and siphon for Ø32 connection.
- Equipped with a droplet separator.
THCO “change over” probe allowing automatic heating / cooling by measuring the water temperature.
BAHR external battery box
- BAHR EI : electric post-heating coil.
- BAHR EC : hot water coil.
- BAHR ER : reversible hot / cold water coil.
- Self-supporting construction in 50 mm double skin panels.
- Insulation by mineral wool thickness / 50 mm, density 40 kg / m3, thermal conductivity 0.037 W / (mk) (20/80 ° C) - Classification A1.
- Exterior finishes in pre-painted, grained galvanized steel in dark gray RAL7024. Corrosion resistance RC3, UV resistance RUV3 according to EN 10169.
- Z275 galvanized steel interior finishes.
- Galvanized steel frame, height 100 mm, drilling for fixing anti-vibration mounts or leveling feet.
Rectangular accessories
- CDRE 100 : motorized rectangular damper, reinforced class 3 tightness, class B enclosure.
- MSCE : waterproof rectangular flexible sleeve (class B) with frame, M0.
- APPA - APPR : rain-proof canopy on intake or discharge. Zinc-plated steel, pre-painted RAL7024, of the same type as the unit. Hatch on the side for access to a possible damper servomotor. Quick fixing without drilling.
- BRL : smooth rectangular flange made of galvanized steel.
- PRRE : rectangle / round transformation piece - in galvanized steel up to size 45.
- PRCN - PRCI : Adapter plate for circular, bare or insulated connection, from size 12 to 45.
PRCN - galvanized steel plate equipped with a jointed spigot (delivered with gasket).
PRCI - 50mm double skin panel, rock wool insulation, identical finish to the unit, circular jointed spigot (supplied with gasket and long fixing screw).
Also suitable for BAHR battery boxes from size 12 to 45.
Air treatment selection

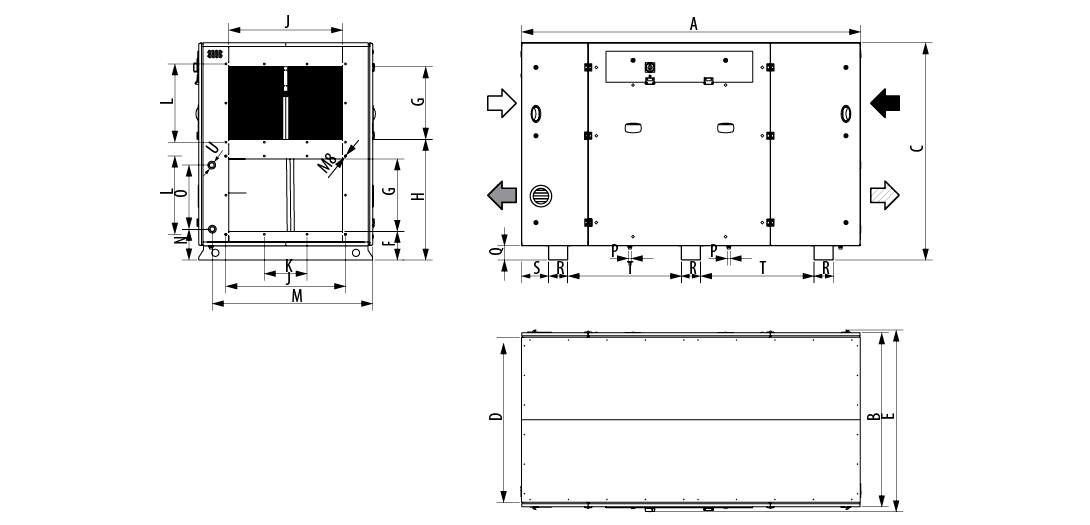

CAD HR OPTIMAL C4 VLD
In line straight bondage
CAD HR OPTIMAL C4 VLG
In line bondage left
In line straight bondage
 |
Outdoor air |
 |
Extract air |
 |
Supply air |
 |
Exhaust air |

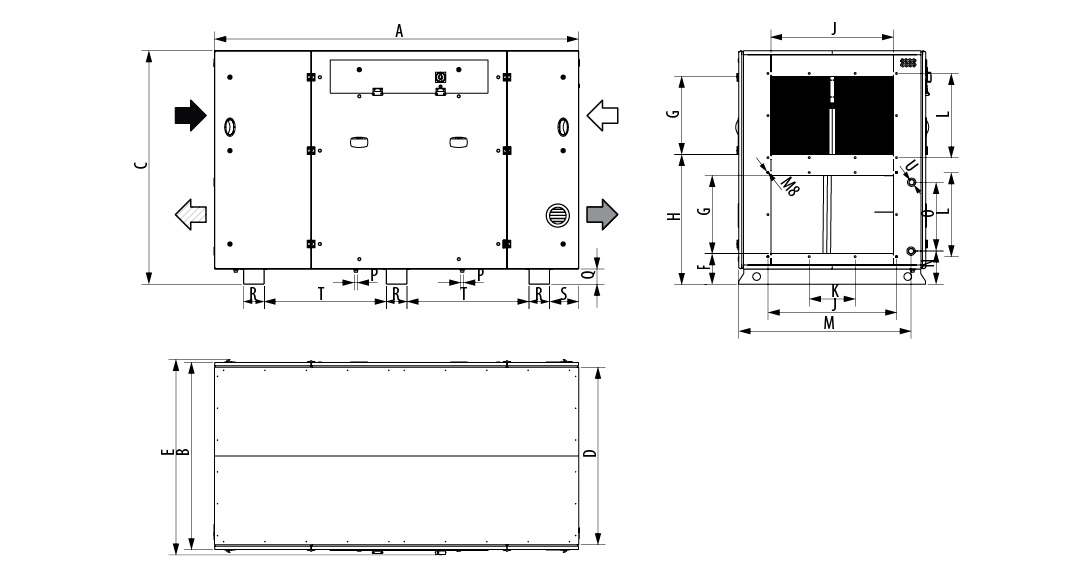

CAD HR OPTIMAL C4 VLG
In line bondage left
|
Outdoor air |
|
Extract air |
|
Supply air |
|
Exhaust air |
|
CAD HR OPTIMAL C4 |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
K1 |
|
12 |
1976 |
715 |
1151 |
655 |
754 |
209 |
310 |
669 |
400 |
440 |
220 |
- |
|
18 |
1976 |
842 |
1151 |
785 |
881 |
209 |
310 |
669 |
500 |
540 |
270 |
- |
|
25 |
2355 |
1171 |
1382 |
1109 |
1209 |
200 |
410 |
775 |
800 |
840 |
270 |
300 |
|
33 |
2355 |
1171 |
1382 |
1109 |
1209 |
200 |
410 |
775 |
800 |
840 |
270 |
300 |
|
45 |
2380 |
1273 |
1525 |
1210 |
1310 |
200 |
510 |
847 |
800 |
840 |
270 |
300 |
|
56 |
2380 |
1788 |
1685 |
1731 |
1827 |
280 |
510 |
955 |
1300 |
1340 |
220 |
300 |
|
80 |
2380 |
2280 |
1785 |
2223 |
2319 |
255 |
610 |
1005 |
1700 |
1740 |
270 |
300 |
|
CAD HR OPTIMAL C4 |
L |
M | N | O | PØ | Q | R | S | T | Weight without any battery E (kg) |
Weight with battery defrost ED (kg) |
|
12 |
350 |
627 | 205 | 307 | 1/2 " | 100 | 135 | 231 | 555 | 356 | 365 |
|
18 |
350 |
757 | 205 | 307 | 1/2 " | 100 | 135 | 231 | 555 | 396 | 407 |
|
25 |
450 |
1071 | 213 | 390 | 1/2 " | 100 | 135 | 245 | 730 | 512 | 528 |
|
33 |
450 |
1071 | 213 | 390 | 1/2 " | 100 | 135 | 245 | 730 | 625 | 643 |
|
45 |
550 |
1180 | 214 | 457 | 1/2 " | 100 | 135 | 210 | 777 | 707 | 728 |
|
56 |
550 |
- | - | - | 1/2 " | 155 | 196 | 180 | 716 | 923 | 950 |
|
80 |
650 |
- |
- | - | 1/2 " | 155 | 196 | 180 | 716 | 1131 | 1170 |
Detailed specifications
Text catalog pages (CT)
Catalog Pages - Other
Public tariff price
Price catalog pages (CP)
Installation instructions
Installation instructions (NT)
Installation instructions (NT) Other
Technical data (DTEC)
Fire / Smoke extraction certificates
Fire classification report (PVFEU)
Performance / Environment Certificates
ErP regulatory sheet (FERP)
Eurovent certificate (CEUR)
Declaration of performance (DOP)
Product environmental profile (PEP)
Electrical / ATEX Certificates
Electrical CE Declarations (DCCE)
Prescription assistance
Specification text (TP)
Other files
Other files
Commercial documents
Commercial leaflet (FCOM)
