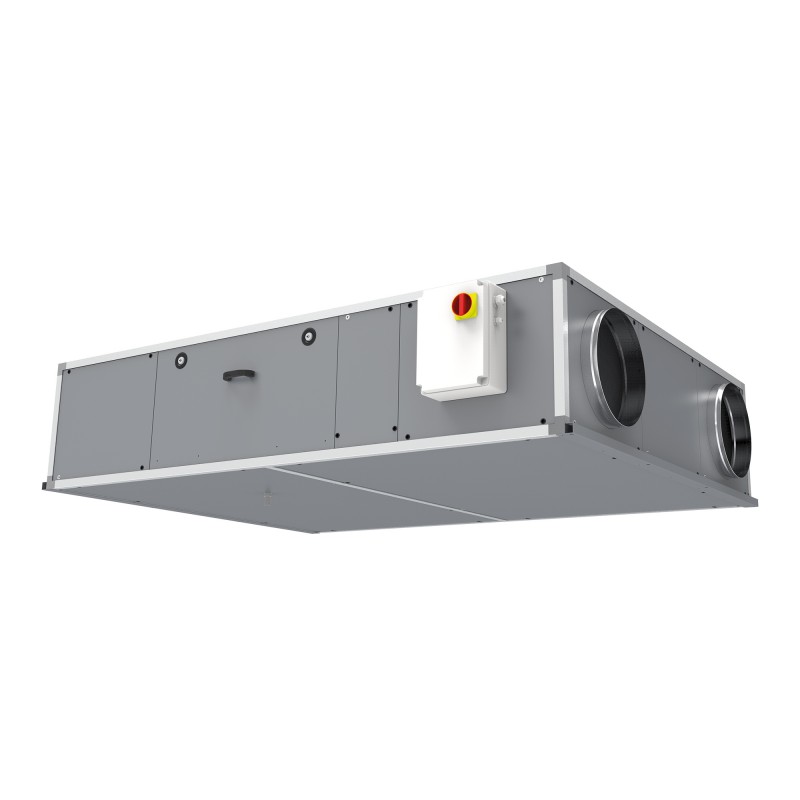

CAD HR BASIC H
Double flow air handling unit H with exchanger
Counter flow - Backward - ECM < 3400 m3/h
View larger
CAD HR BASIC H
New product
 |
ErP 2018 compliant - UVNR Variable EC motors |
Filters
|
||
 |
 |
 |
 |
|
 |
 |
 |
 |
|
 |
Air-to-air plate heat exchangers produced by the RECUTECH company, which participates in the Eurovent program. Certification for AAHE. |
- Double skin insulation 25 mm
- With or without integrated battery
- Freewheel reaction fans
- Low consumption ECM motors
- New Modbus / Bacnet communicating regulation
- Thermal efficiency up to 90%
Application
Air introduction and extraction with heat recovery.
Floor or suspended installation.
Indoor or outdoor use with rainscreen.
Regulation of the blowing temperature by electric coil or water coil depending on the model.
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
5 sizes: 07 (700m3/h) / 11 (1,100 m3/h) /16 (1,600 m3/h) / 23 (2,300 m3/h) / 34 (3,400 m3/h).
3 models:
Right (R) or left (L) easement in the direction of the blown air.
New VIM specific integrated EVCO regulation.
Construction
exchanger
Motorization
Filtration
Electric heater EI
Reversible hot/cold water coil ER
Air treatment selection
3 models:
- E: without battery
- EI: integrated electric post-heating coil
- ER: integrated reversible water coil (hot / cold)
Right (R) or left (L) easement in the direction of the blown air.
New VIM specific integrated EVCO regulation.
- Communicating Modbus RTU on RS485 port or Modbus TCP/IP, BACnet IP, EPJcolor remote touch control.
Construction
- Self-supporting structure in extruded aluminum profile, rounded corners,
- 25 mm double skin panel in zinc magnesium ZM310, corrosion resistance C5.
- Insulation by injected polyurethane foam (42 kg/m3 – 0.0246W/ m,k) fire classification B-S2, d0 (M1).
- Horizontal construction with in-line connection by circular tappings fitted with seals:
- 4 fixing lugs supplied for mounting in a false ceiling or on a chair,
- possibility of adapting the position of the connections on site.
- Access to filters, exchanger, battery and fan from the side.
- Drain Ø1/2˝ for the evacuation of condensates.
exchanger
- Aluminum plate heat exchanger, counter current, high efficiency, thermal efficiency up to 90%.
- Motorized bypass 100%, integrated into the unit on the fresh air network.
- 230V single-phase 3-point servomotor controlled proportionally by acting on the running time.
Motorization
- Metal reaction freewheel type fan (incombustible A1).
- ECM motor, 230V 50/60Hz, high efficiency.
- Control by 0…10V signal.
- Sealing class: size 07 = IP44 class B, other sizes IP54 Class B
- Electronic thermal protection.
Filtration
- Fresh air supply: FIFI F7 ePM1 70 mini pleat filters%.
- Stale air return: FIFI M5 ePM10 50 mini pleat filters%.
Electric heater EI
- Connected to the regulator, it regulates the temperature of the blown air.
- Safety thermostat with automatic reset (set point 55°C) and manual reset (set point 70°C).
Reversible hot/cold water coil ER
- Water coil 2 rows on size 07 and 34, 4 rows on other sizes.
- In copper tubes with aluminum fins on a galvanized steel frame.
- Copper manifold. Threaded connecting tube.
- 1/2" condensate outlet to be connected to a siphon when used in cooling.
- 230V/24V 10VA transformer for 2V or 3V valve supply.
Air treatment selection
|

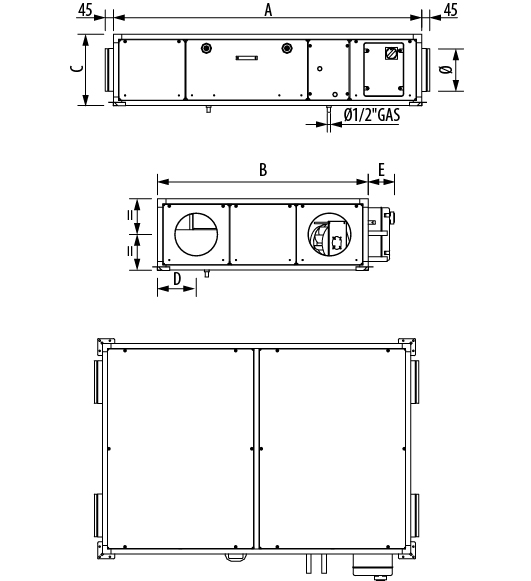

Model |
A |
B |
C |
D |
E |
Ø |
Weight (Kg) |
|
07 |
1590 |
740 |
360 |
200 |
155 |
200 |
103 |
|
11 |
1815 |
1240 |
420 |
225 |
155 |
250 |
150 |
|
16 |
2180 |
1340 |
495 |
293 |
155 |
220 |
|
|
23 |
2180 |
1640 |
495 |
295 |
155 |
355 |
280 |
|
34 |
2400 |
1740 |
635 |
310 |
155 |
450 |
350 |
Possible configuration of the connections - Top view

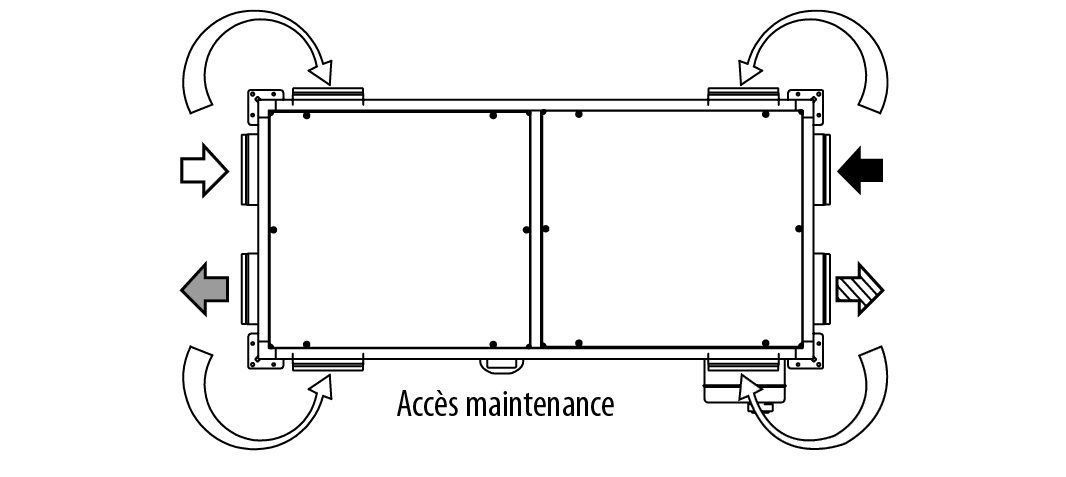

HD straight standard version

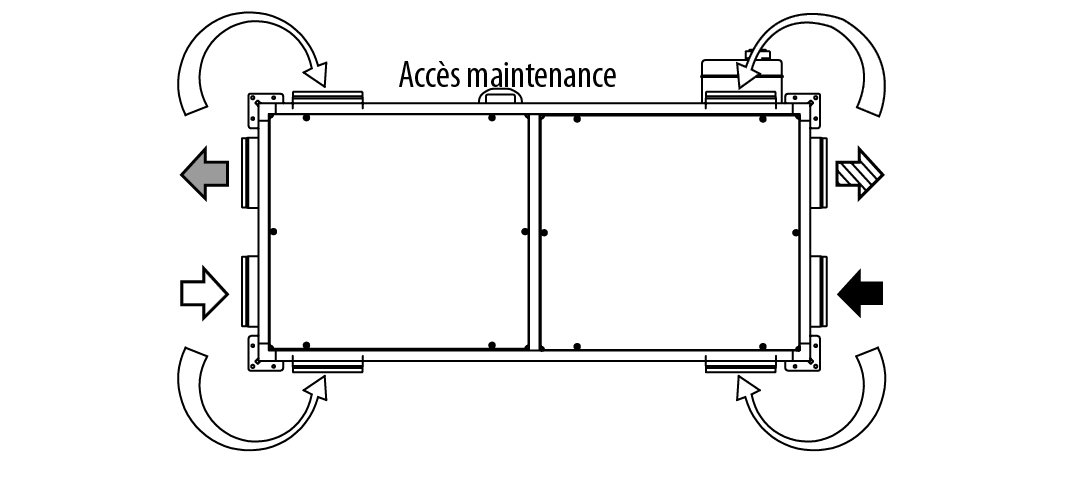

Left version HG
 |
Outdoor air |
 |
Extract air |
 |
Supply air |
 |
Exhaust air |
 |
Modifications carried out on site |
Detailed specifications
Text catalog pages (CT)
Catalog Pages - Other
Public tariff price
Price catalog pages (CP)
Installation instructions
Installation instructions (NT)
Fire / Smoke extraction certificates
Performance / Environment Certificates
ErP regulatory sheet (FERP)
Eurovent certificate (CEUR)
Electrical / ATEX Certificates
Electrical CE Declarations (DCCE)
Prescription assistance
Specification text (TP)
Commercial documents
Commercial leaflet (FCOM)
OPTAIR CTA
Download the new OPTAIR CTA version (No automatic update from the previous version)
Single or double flow CTA selection software
November 2023 – New version OPTAIR CTA 2023.12.2.0: addition of new ranges and deletion of obsolete ranges
For any operating problems, please send your request by email to optair@vim.fr
 |
