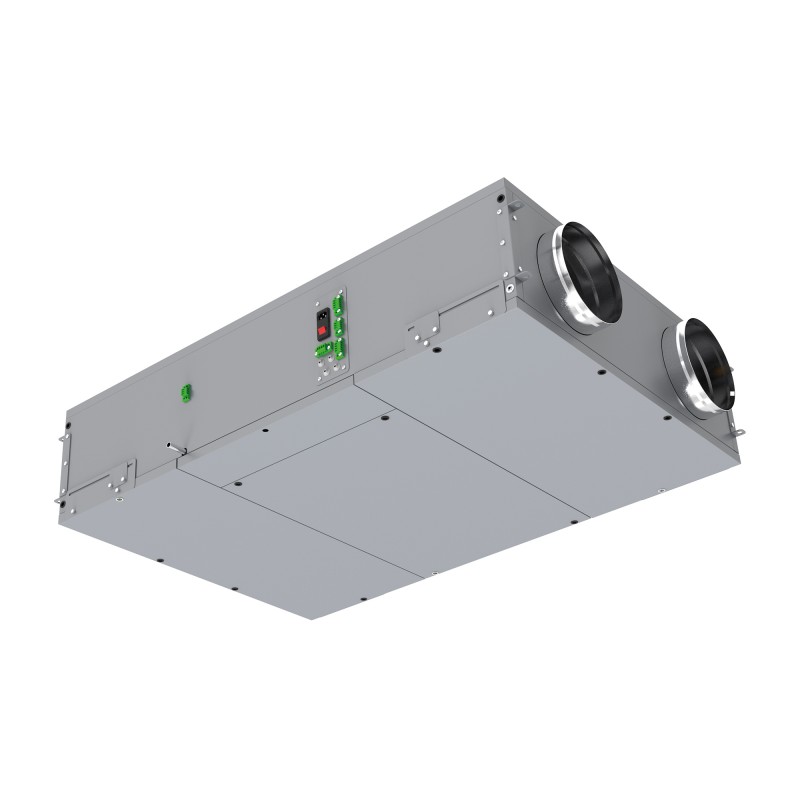

CAD HR MINI
Double flow air handling unit H with exchanger
Counter current - Reaction - ECM < 800 m3/h
View larger
CAD HR MINI
New product
 |
ErP 2018 - UVNR compliant Variable EC motor |
Filters
|
||
 |
 |
 |
||
 |
 |
 |
||
 |
Air-air plate exchangers produced by the company RECUTECH which participates in the Eurovent Certification program for AAHE. |
- Double skin insulation 25 mm
- Low consumption ECM motors
- Modbus / BACnet communicating regulation
- Thermal efficiency up to 92%
- External battery control options
Applications:
Introduction and extraction of air with energy recovery in tertiary premises (single-zone premises, category 500 for size).
Indoor use only.
Particularly suitable for installation in false ceilings during renovation or new construction.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
2 sizes: 500 and 800 m3/h.
Horizontal construction (H)
In-line (L) duct connection configurations.
Right (R) or left (L) servitude in the direction of the blown air.
Bypass 100% modulating.
Control of external batteries (accessories) for antifreeze and post-heating or cooling.
EVCO regulation with remote touch control, communicating via Modbus on RS485 or IP port, and BACnet IP.
Construction
Motorization
Interchange
Filters
External electric battery type BATE R010
Hot water battery type CWWC 2R
Cold water battery / reversible type CWKC 3R
Air treatment selection
Horizontal construction (H)
In-line (L) duct connection configurations.
Right (R) or left (L) servitude in the direction of the blown air.
Bypass 100% modulating.
Control of external batteries (accessories) for antifreeze and post-heating or cooling.
EVCO regulation with remote touch control, communicating via Modbus on RS485 or IP port, and BACnet IP.
Construction
- Double skin panel:
- Exterior: Alloy steel panels (Zn - Al - Mg) ZM310 for environments with corrosiveness C4 high durability or C5 medium durability, insulation thickness 25 mm of injected polyurethane foam (42 kg/m3, 0.0246W/mk) fire classification B-S2, d0.
- Interior: Alloy steel panels (Zn - Al - Mg) ZM310, corrosion resistance C5.
- Condensate tray with Ø 3/8'' Gas drain.
- Access to the exchanger from below thanks to a removable panel.
- Quick access to filters and fans from below via sliding hatches.
Motorization
- Freewheel type reaction fan in composite material for size 500, metallic (incombustible A1 for size 800).
- Low consumption ECM electronically commutated motor, single phase (230V-1-50/60 Hz) input 0...10V.
Interchange
- High efficiency counter-current exchanger.
- In aluminum.
- Motorized bypass 100%, integrated into the unit, equipped with a 230V single-phase 3-point servo-motor controlled proportionally by adjusting the running time.
- Airtightness according to standard EN 13141-7:
- Internal leakage: class A2; external leakage: class A1.
Filters
- Fresh air blowing and stale air intake: FIFI F7 ePM1 55 mini-pleat filters% 373x230x25 mm for size 500 and 592x287x48 for size 800.
External electric battery type BATE R010
- Use as antifreeze or post-heating.
- Driven by EVCO regulation.
- Installation in duct.
Hot water battery type CWWC 2R
- Connection of the antifreeze contact probe and valve control by the EVCO regulation.
- Installation in duct.
Cold water battery / reversible type CWKC 3R
- Connection of the antifreeze contact probe (reversible use) and valve control by EVCO regulation.
- Installation in duct.
Air treatment selection

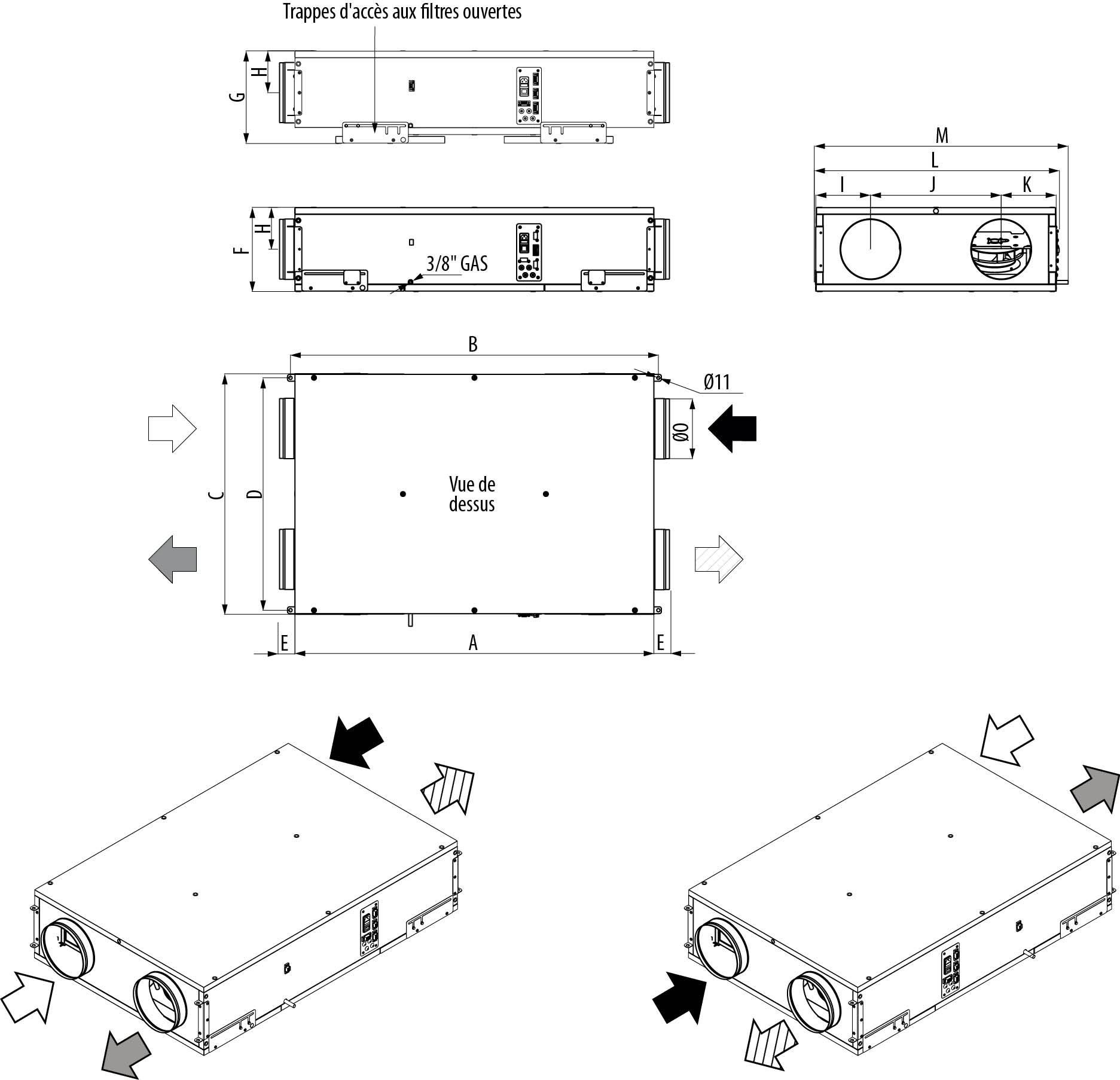

Horizontal construction with in-line connection (HL)
 |
Fresh air suction |
 |
Blowing fresh air |
 |
Stale air recovery |
 |
Stale air rejection |
| HAS | B | C | D | E | F | G | H | I | I | K | L | M | O | Weight (kg) | |
| CAD HR MINI 500 | 1200 | 1230 | 804 | 777 | 52 | 281 | 310 | 140 | 183 | 437 | 184 | 820 | 849 | 200 | 61 |
| CAD HR MINI 800 | 1512 | 1542 | 1303 | 1277 | 52 | 367 | 396 | 182 | 334 | 635 | 334 | 1315 | 1332 | 250 | 120 |
