RESS - RESD - RESF
Circular registers
Galva - VAV or CAV - With regulator
View larger

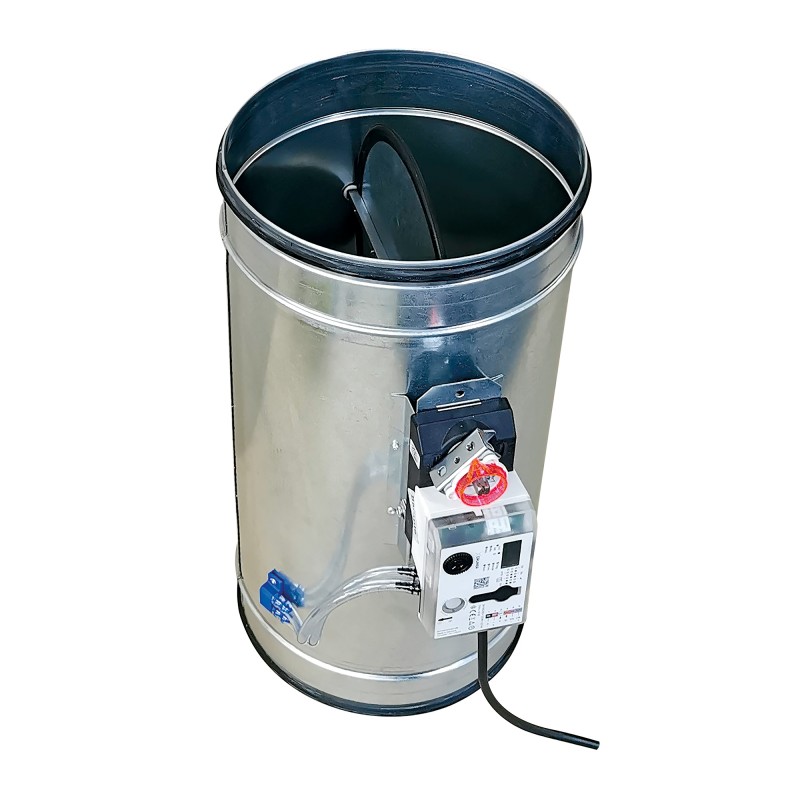

RESS - RESD - RESF
New product
 |
 |
 |
- AJUST'AIR® system component under technical advice
- Precise airflow regulation
- Incorporates a differential pressure regulator
- Adjustable flow rate range on site
- Real-time flow display
Applications:
Ventilation and air conditioning installation.
Use in blowing or recovery.
CAV: maintaining a precise constant flow rate.
VAV: variation of the flow rate according to an air quality or temperature setpoint.
Operation independent of upstream pressure.
AJUSTAIR flow modulation®.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
9 Sizes: Ø100/ 125/ 160/ 200/ 250/ 315/ 400/ 500/ 630 mm.
Flow rates: 29 to 11,216 m3/h.
Air speed operating range 1-10 m/s.
RESS: VAV or CAV circular box.
RESD: VAV or CAV insulated circular box.
RESF: flow rate to signal converter.
RESS - RESD
Body - ATC3 (Class C) waterproofing:
Flow rates: 29 to 11,216 m3/h.
Air speed operating range 1-10 m/s.
RESS: VAV or CAV circular box.
RESD: VAV or CAV insulated circular box.
RESF: flow rate to signal converter.
RESS - RESD
Body - ATC3 (Class C) waterproofing:
- In galvanized steel Z275.
- Insulated version (RESD): double skin galvanized steel thickness 50mm, elastomer insulation (B-s3,d0).
- Equipped with gaskets at both ends.
- Aluminum differential pressure measuring cross.
- Made of galvanized steel.
- Equipped with a waterproof EPDM peripheral seal.
- Nylon bearings.
- Power supply 24 VDC/VAC, 50/60 Hz, IP54.
- Electric cable length: 1m.
- Torque 5 or 10Nm.
- 0–10V or 2–10V control signal.
- Digital display / Adjustment button / Function selection button.
- Real-time display of flow rate.
- Operating conditions: temperature 0°C to +50°C / 5 to 95 % HR.
- Modbus RTU communicating servomotor version.

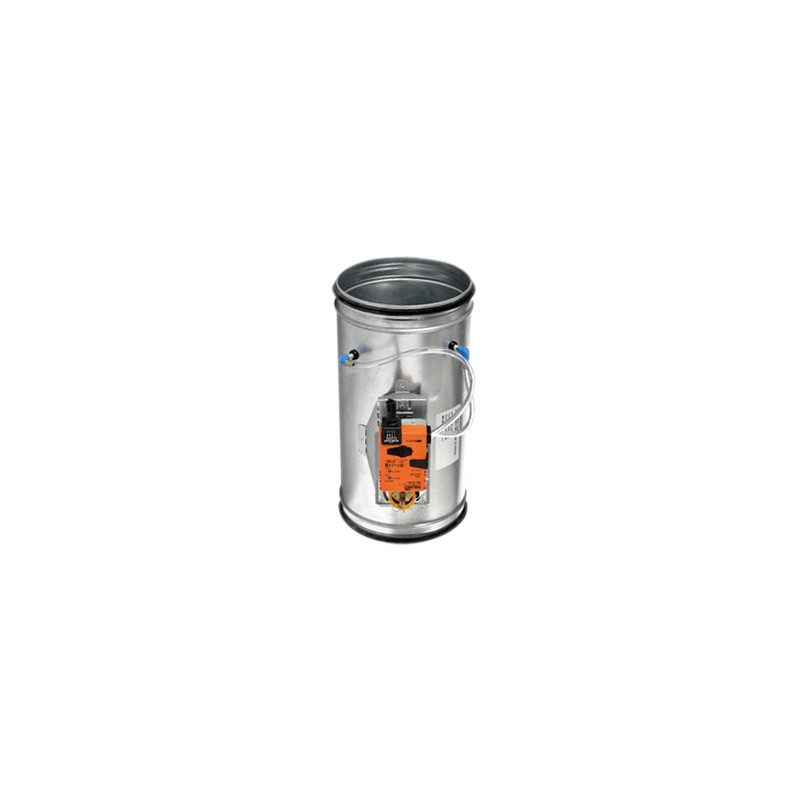

- Power supply 24 VDC/VAC, 50/60 Hz, IP54.
- Electric cable length: 1m.
- Torque 5 or 10Nm.
- 0–10V or 2–10V control signal.
- Servomotor configuration made easy via NFC using the Belimo Assistant application (non-communicating version only), or via ZTH box.
- Operating conditions: temperature 0°C to +50°C / 5 to 95 % HR.
- Servomotor version communicating Modbus RTU, BACnet MSTP.

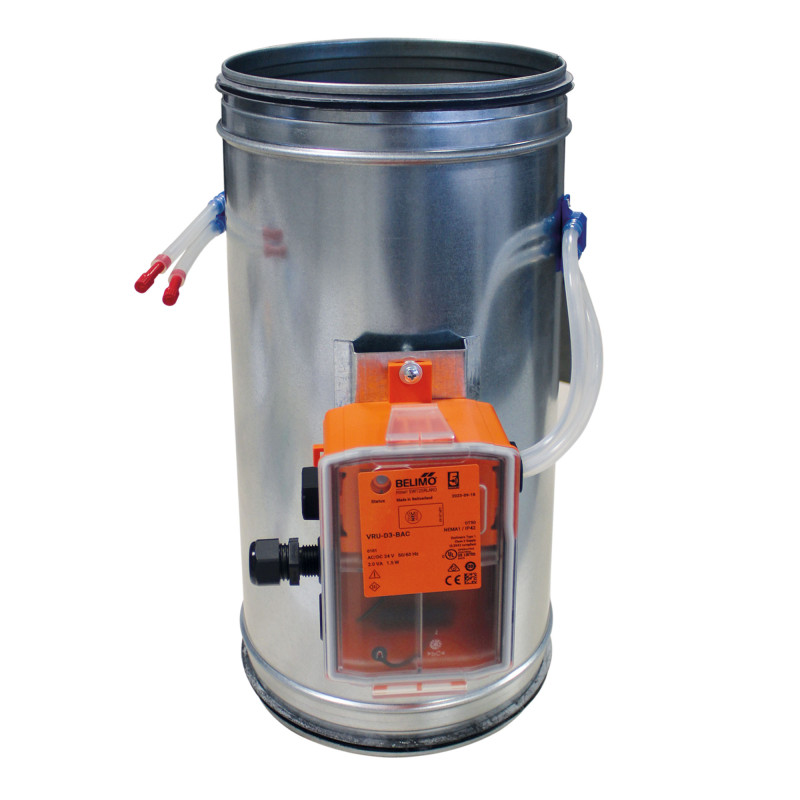

- Body: same as RESS.
- BELIMO VRU-D3-BAC pressure regulator communicating Modbus RTU and BACnet MS/TP.
- No shutter or servomotor.
- NFC configuration via the Belimo assistant application or via ZTH box
- BELIMO room thermostats.

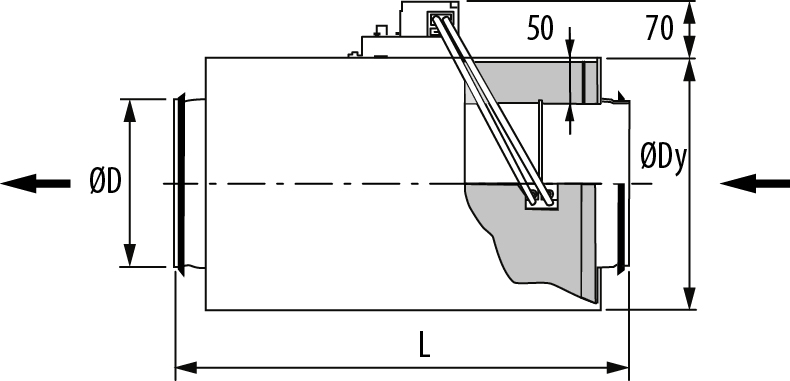

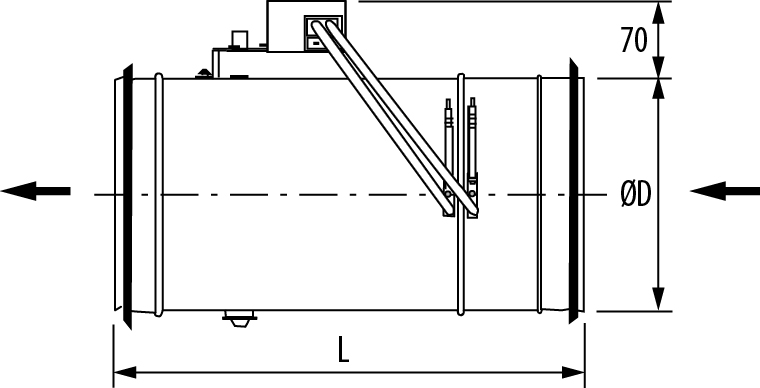

RESS
