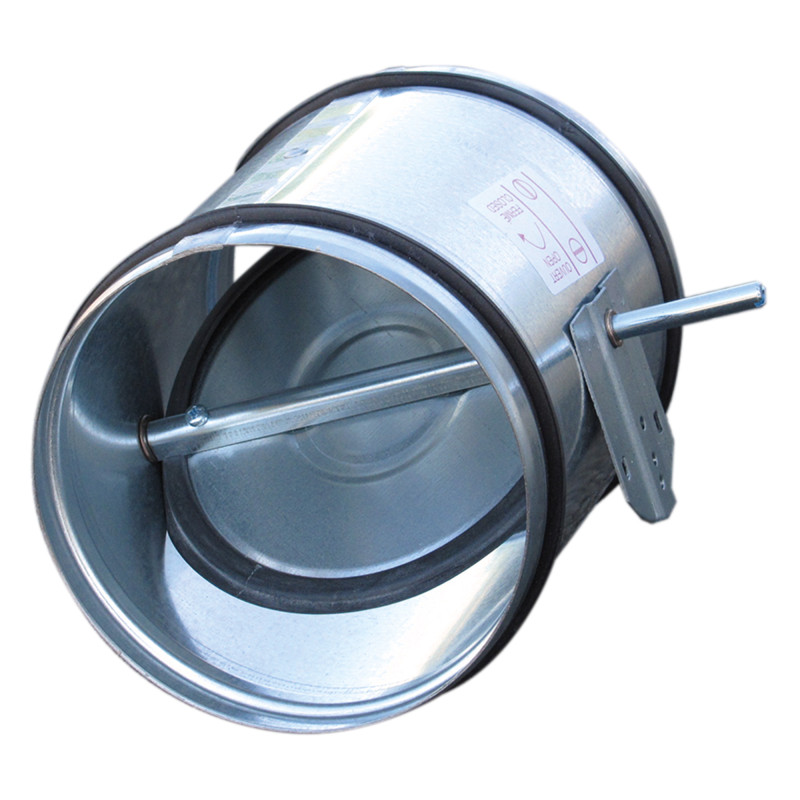

REMV REEV
Circular registers
Galva - Manual or motorized
View larger
REMV REEV
New product
- Robust design
- Exterior waterproofing
- REEV waterproofing according to EN 1751
- Factory fitted servomotor option
Application
Balancing of aeraulic networks.
Ventilation and air conditioning installation.
Watertight closure of a network or antifreeze protection.
Equilibrage des réseaux aérauliques. Installation de ventilation et de climatisation basse ou moyenne pression. Fermeture étanche d’un réseau.
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
REMV
Description
- Seals on the envelope and shutter without seal.
- 14 sizes: from Ø100 to 800 mm.
- 14 sizes: from Ø100 to 800 mm.
- Seals on the envelope and shutter with seal.
- Leak test according to EN 1751 standard.
- Envelope Class ATC3 (formerly class C) in pressure (0 to 900 Pa) and in depression (-500 to 0 Pa).
- Class 4 shutter in pressure (0 to 900 Pa) and in depression (-500 to 0 Pa).
Description
- Circular registers.
- Body and shutter in Z275 galvanized steel.
- Cadmium-plated steel axle and bronze bearings.

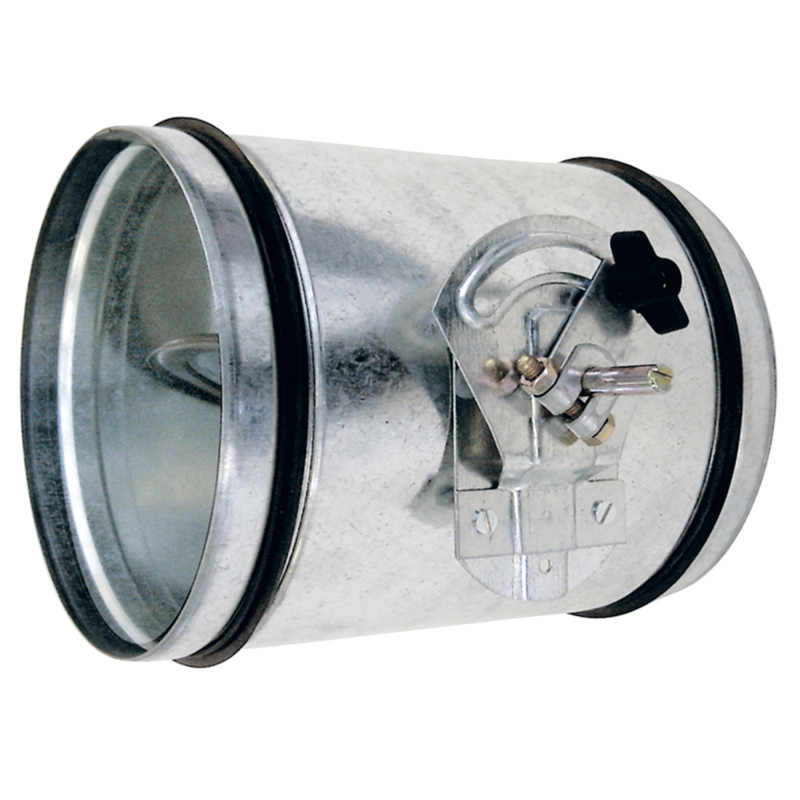

- Engine support plate or manual control.
- Equipped with class D end seals.
- 304 stainless steel body and shutter version available.
- R9 for 8 mm axle - Ø100 to 250 mm.
- R11 for 12 mm axle - Ø315 to 800 mm.
- REMV-REEV: Ø100 to 710 torque 4 Nm.
- REMV-REEV: Ø800 torque 10 Nm.

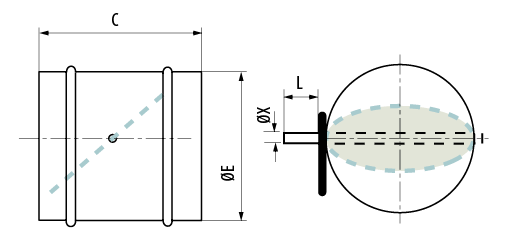

| Ø E | C | X | L |
| 100 | 200 | 8 | 60 |
| 125 | 200 | 8 | 60 |
| 160 | 200 | 8 | 60 |
| 200 | 200 | 8 | 60 |
| 250 | 200 | 8 | 60 |
| 315 | 300 | 12 | 100 |
| 355 | 300 | 12 | 100 |
| 400 | 400 | 12 | 100 |
| 450 | 400 | 12 | 100 |
| 500 | 400 | 12 | 100 |
| 560 | 400 | 12 | 100 |
| 630 | 400 | 12 | 100 |
| 710 | 400 | 12 | 100 |
| 800 | 400 | 12 | 100 |
