PULSER - VAT included

Battery regulation

Electric coil regulators

Temperature regulation

Adjusts power as needed
Without magnetic disturbance
Ease of use

Application

Modulation of the heating power according to the desired temperature setting in a room or in the duct.
The operation of the electric batteries must be linked to the operation of the fan and associated with several safety devices (pressure switches, post-ventilation time delay, overheating thermostats, etc.).
Electronic regulators equipped with triacs.

Tertiary buildings

Industrial and logistics buildings

Buildings for catering

Order online

Description
Dimensions
Documentation
Public Price
Software
References

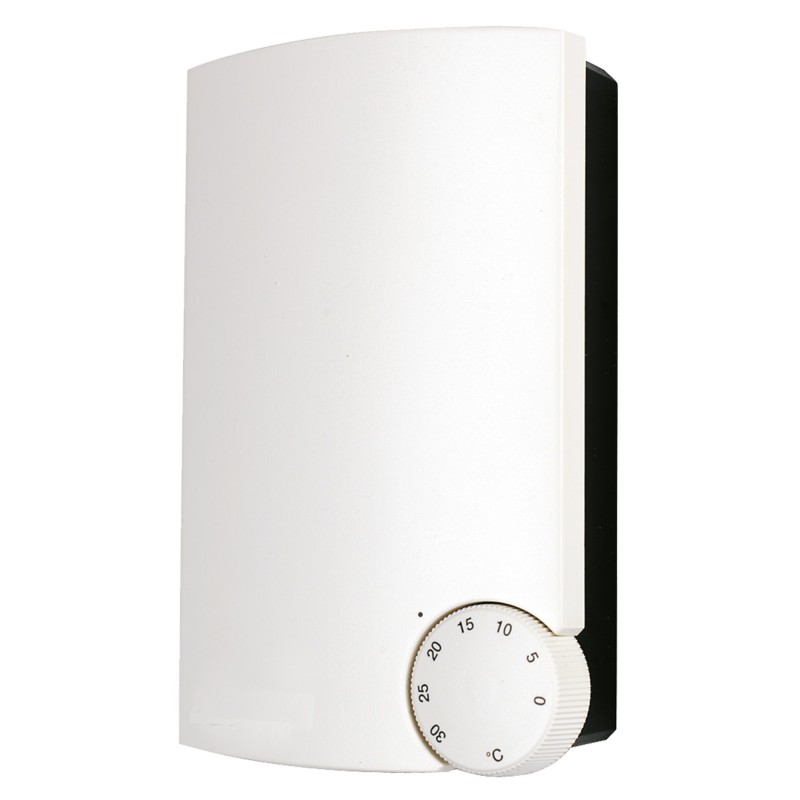

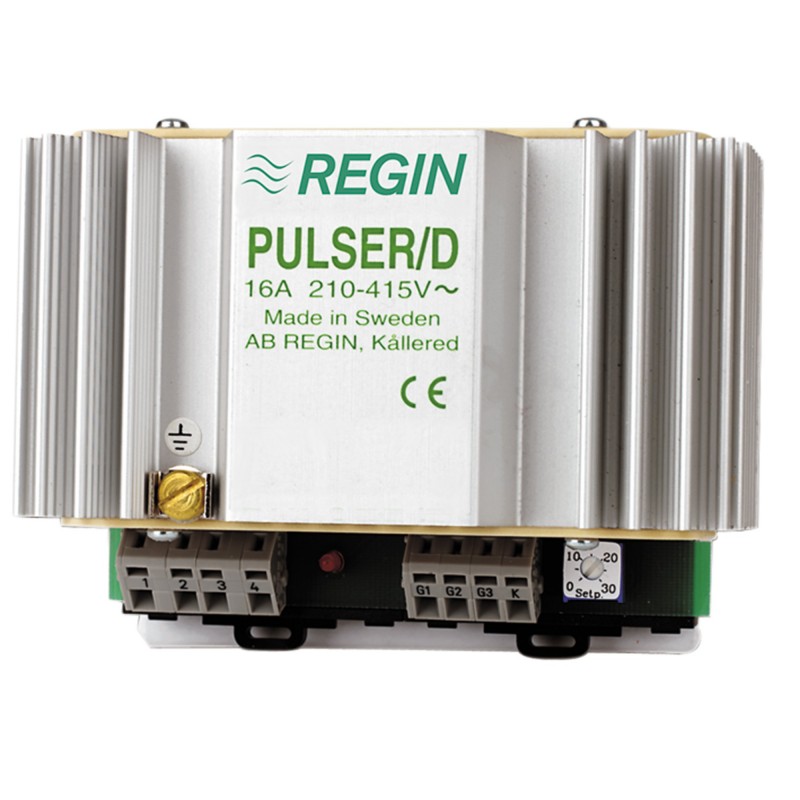

PULSER: regulation of single-phase batteries

3 16A regulators (3.6kW max).
Ambient mounting. Internal set point sensor and adjustment.
- M: ambient mounting with input for min / max duct limitation probe.
- ADD: 16A (3.6kW) single-phase additional unit to double the operating power. Ambient mounting.

TTC: regulation of three-phase batteries

3 regulators 25A, 40A, 80A TTC25 / 40F / 80F.
TTS6D: sequencer for multi-stage control (6 relay outputs).
Standard: DIN rail mounting.

Description

PULSE

Progressive control: chrono-proportional control by triac.
Can be used with an integrated or external probe (NTC probe: TGK or TGR).
Adjustment of internal or external set point (TBI potentiometer).
Supply voltage: single phase 230VAC.
Set point: 0… 30 ° C (the probe determines the temperature range).
Power output:
- 16A (mini 1A),
- 3.6kW max.
Protection index: IP30.
P or PI regulation, automatic adaptation.

Tax incl.

Progressive control, chrono-proportional regulation by triac.
Automatic adaptation of the P or PI function.
Works with an external 0… 10V control signal.
Supply voltage: 3 phases 210… 415VAC.
Power output:
- 25A, 17kW, tri 400V (TTC25),
- 40A, 27kW, tri 400V (TTC40F),
- 80A, 55kW, tri 400V (TTC80F).
0… 30 ° C set point: the probe determines the range (NTC probe: TGK or TGR).
Inputs 2 probes: main probe and min / max limit probe.
0… 10V control signal.
Protection index: IP20.

TTS

In addition to the TTC to increase control capacity.
Controlled by TTC25 / 40F / 80F regulators or any regulator with 0… 10V output.
Supply voltage: 24 VAC (with TRAFO transformer).
Output up to 6 relays, 2A, 240VAC, NO relay. For sequential or binary control of a power contactor.
Input, 0… 10V for TTC control.
Protection index: IP20.
Possibility of controlling 1 to 5 battery power stages (provide additional power contactors) and a 3 min post-ventilation thanks to the relay output.
