PAVZ - PAGT
Antivibratiles
Plots
View larger
PAVZ - PAGT
New product
Application

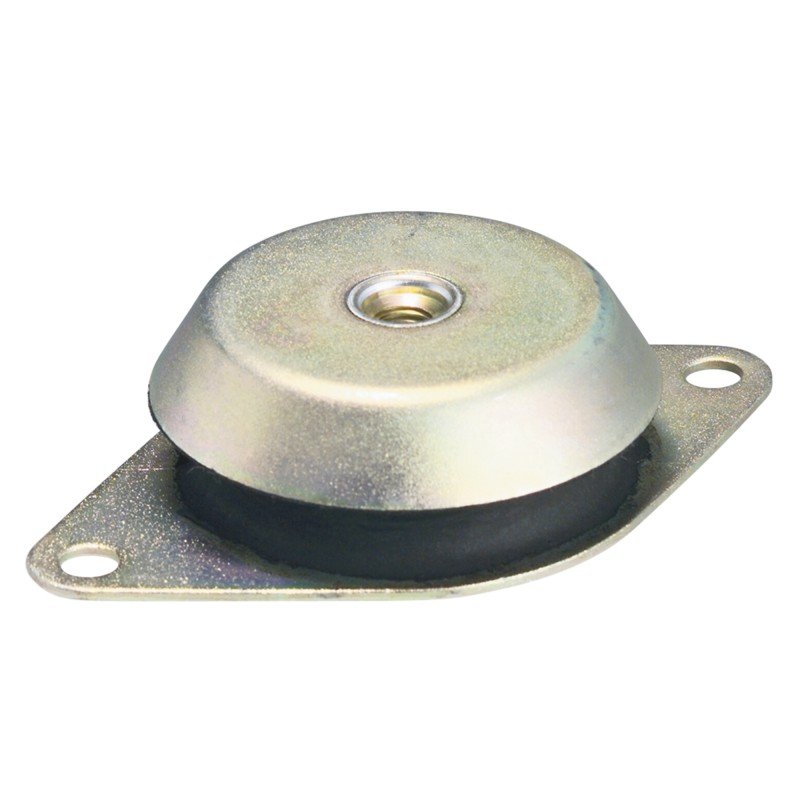

PAVZ
Absorbs vibrations: boxes, fans, air handling units.
Intended for compressive stresses only.
Operating temperature: –40 to + 70 ° C

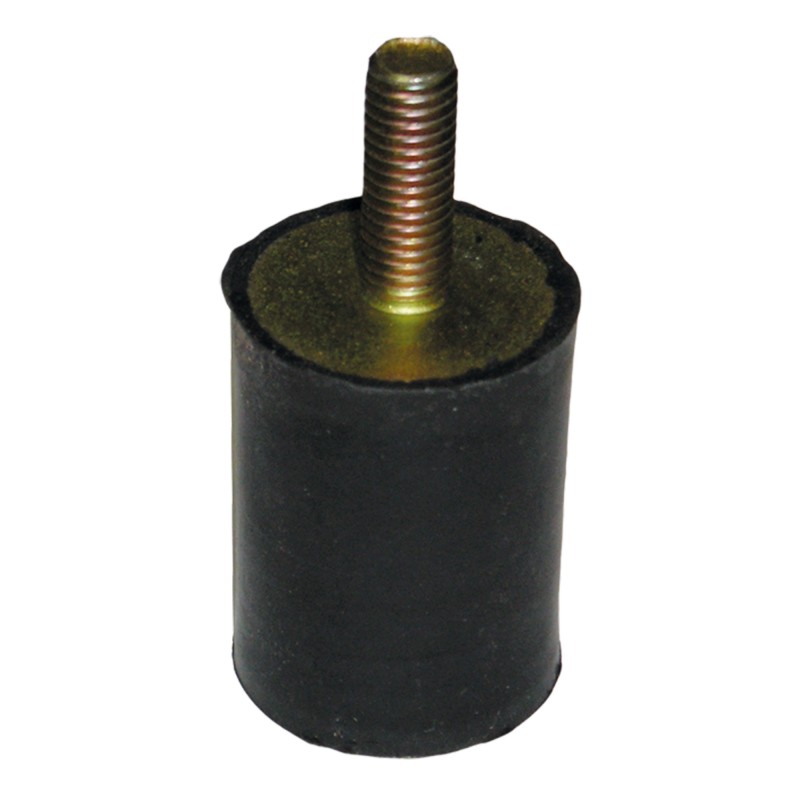

PAGT
Absorbs vibrations: boxes, fans, air handling units.
Designed for compressive and shear stresses.
Operating temperature: –40 to + 80 ° C
Order online
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
PAVZ
PAGT
- Sizes 60, 80, 100, 150 and 200.
- Material :
- Elastomer part: black natural rubber.
- Connection piece: zinc-plated steel.
- Tolerance according to DIN 7715 M3.
- Natural frequency 16 - 8.5 Hz
- Packaging: individually without accessories or by 4 or 6 with fixing accessories (screws and washers).
PAGT
- Sizes 20-28, 31-45, 50-71.
- Material :
- Elastomer part: natural rubber, black.
- Connection piece: Rohs galvanized steel.
- Threaded rod on one side and tapping on the other.
- Form according to DIN 95363 form B.
- Tolerance according to DIN 7715 M3.
- Unit packaging without accessories.
PAVZ
PAGT - Sizes 20-28, 31-45, 50-71
|
Designation |
A (mm) |
C (mm) |
H (mm) |
G |
B (mm) |
d (mm) |
S (mm) |
|
PAVZ 60 |
60 |
90 |
24 |
M6 |
76 |
6.2 |
3 |
|
PAVZ 80 |
80 |
120 |
27 |
M8 |
100 |
8.2 |
3 |
|
PAVZ 100 |
100 |
148 |
28 |
M10 |
124 |
10.2 |
3 |
|
PAVZ 150 |
150 |
214 |
41 |
M14 |
182 |
12.2 |
4 |
|
PAVZ 200 |
200 |
240 |
44 |
M18 |
240 |
14.5 |
5 |
|
Designation |
Hardness (Shore A) |
Load capacity Fz (Kg) |
Deflection (mm) |
|
PAVZ 60 |
75 ± 5 |
50 |
3.5 |
|
PAVZ 80 |
60 ± 5 |
80 |
4.5 |
|
PAVZ 100 |
75 ± 5 |
220 |
5.5 |
|
PAVZ 150 |
75 ± 5 |
360 |
6.5 |
|
PAVZ 200 |
45 ± 5 |
500 |
7.5 |
PAGT - Sizes 20-28, 31-45, 50-71
|
Designation |
ØD (mm) |
H (mm) |
Hardness (Shore A) |
|
PAGT 20-28 |
30 |
40 |
45 |
|
PAGT 31-45 |
50 |
40 |
45 |
|
PAGT 50-71 |
50 |
45 |
55 |
|
Designation |
G |
S (mm) |
L (mm) |
Max load (Kg) |
Deflection sz (mm) |
Yield constant Cz (n / mm) |
|
PAGT 20-28 |
M8 |
8 |
23 |
38 |
8 |
48.5 |
|
PAGT 31-45 |
M10 |
10 |
28 |
110 |
8 |
138.5 |
|
PAGT 50-71 |
M10 |
10 |
28 |
170 |
9 |
180.5 |
