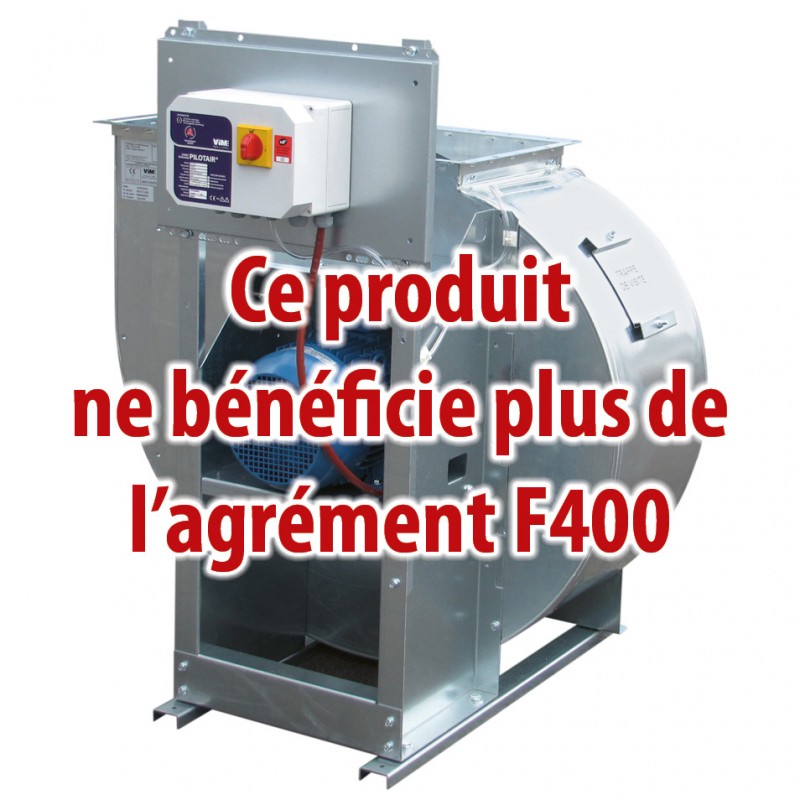

GTLB3 F400
Old ranges
Transmission - Backward < 104000 m3/h
View larger
GTLB3 F400
New product
 |
ErP compliant - Fan | |||
 |
 |
 |
 |
|
- F400 120 approved
- Sturdy construction
- Electrical accessories, relay box: mounted, wired
Application
Extraction of fumes and hot gases in case of fire.
Extraction of stale air from tertiary and industrial premises.
Extraction of pollutants in professional kitchens.
Extract air temperature: 80 ° C continuously with connected suction.
-
Description
-
Dimensions
-
Documentation
-
Public Price
-
Software
-
References
- Comfort / Smoke extraction: 1,000 to 104,000 m3/ h.
- Pressure: 3,500 Pa.
- 13 sizes: 031/040/045/050/056/063/071/080/090/100/112/125/140.
Construction
- Enclosure made of galvanized sheet steel.
- Backward turbine, in welded steel, 60µm epoxy paint, dynamically balanced (precision 2.5 according to ISO 1940-1973). Flow / pressure curve allowing a small flow variation when the pressure drops vary. High efficiency fan and low noise level.
- Transmission by pulleys and standardized trapezoidal belts.
- Protective housing in perforated galvanized sheet conforming to the standards in force.
- Compatible with frequency inverters, range 15 to 50Hz (speed variation from 30 to 100%).
Motorization
- Motor IP54 or IP55, class B or F depending on the size:
- 1 three-phase speed 230 / 400V, 50Hz up to 7.5 kW, IE1, IE2 or IE3.
- 1 three-phase speed 400 / 690V, 50Hz above 7.5 kW, IE2 or IE3.
- 2 three-phase speeds 400V, 50Hz.
- Thermal protection by optional PTO.
Selection of smoke extraction fans

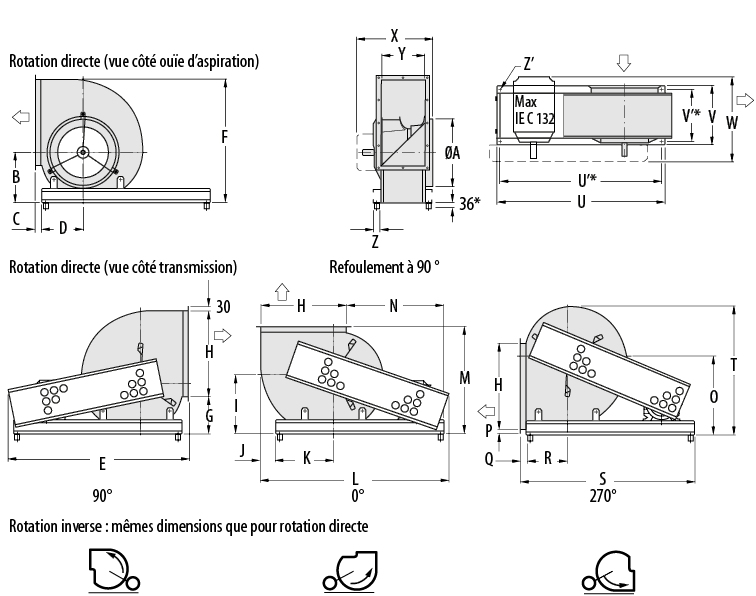

Sizes 031 to 071
Sizes 080 to 100
Sizes 112 to 140 - Motor behind the fan
Sizes 112 to 140 - Motor side of the fan
|
Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
O |
|
-3-31 |
310 |
250 |
33 |
203 |
935 |
591 |
187 |
404 |
292 |
92 |
249 |
952 |
528 |
548 |
379 |
|
-3-40 |
388 |
312 |
41 |
249 |
1075 |
744 |
239 |
507 |
363 |
121 |
310 |
1130 |
653 |
600 |
469 |
|
-3-45 |
445 |
338 |
41 |
282 |
1205 |
824 |
257 |
569 |
396 |
133 |
354 |
1252 |
718 |
685 |
525 |
|
-3-50 |
495 |
372 |
48 |
304 |
1331 |
912 |
276 |
638 |
449 |
109 |
432 |
1388 |
801 |
722 |
580 |
|
-3-56 |
562 |
422 |
55 |
335 |
1493 |
1030 |
315 |
715 |
512 |
141 |
467 |
1561 |
902 |
790 |
644 |
|
-3-63 |
620 |
468 |
59 |
375 |
1504 |
1149 |
350 |
801 |
566 |
199 |
482 |
1716 |
1000 |
845 |
722 |
|
-3-71 |
710 |
529 |
59 |
427 |
1619 |
1297 |
399 |
898 |
639 |
222 |
546 |
1858 |
1124 |
884 |
806 |
|
Model |
P |
Q |
R |
S |
T |
U |
U ' |
V |
V ' |
W |
X |
Y |
Z |
Z ' |
Weight without motor (kg) |
|
LB |
|||||||||||||||
|
-3-31 |
38 |
33 |
203 |
923 |
613 |
860 |
820 |
286 |
253 |
495 |
419 |
212 |
30 |
9 |
29 |
|
-3-40 |
38 |
41 |
203 |
1041 |
764 |
985 |
945 |
338 |
303 |
543 |
516 |
263 |
30 |
9 |
45 |
|
-3-45 |
41 |
38 |
282 |
1161 |
858 |
1120 |
1080 |
378 |
338 |
621 |
545 |
293 |
30 |
9 |
54.5 |
|
-3-50 |
40 |
48 |
304 |
1298 |
950 |
1250 |
1200 |
433 |
383 |
657 |
581 |
328 |
30 |
12 |
66 |
|
-3-56 |
34 |
37 |
335 |
1435 |
1060 |
1364 |
1314 |
474 |
424 |
686 |
632 |
368 |
30 |
12 |
99 |
|
-3-63 |
41 |
59 |
375 |
1539 |
1188 |
1445 |
1395 |
516 |
466 |
706 |
674 |
409 |
50 |
12 |
123 |
|
-3-71 |
38 |
59 |
427 |
1643 |
1331 |
1560 |
1510 |
585 |
525 |
723 |
723 |
458 |
50 |
12 |
154 |
Discharge flange
|
Model |
a |
b |
c |
d |
e |
f |
g |
h |
j |
k |
|
-3-31 |
277 |
464 |
2 |
217 |
217 |
247 |
404 |
434 |
||
|
-3-40 |
329 |
567 |
149.5 |
4 |
134.3 |
269 |
299 |
507 |
537 |
|
|
-3-45 |
359 |
629 |
164.5 |
4 |
149.8 |
299 |
329 |
569 |
599 |
|
|
-3-50 |
394 |
698 |
182 |
4 |
167 |
334 |
364 |
638 |
668 |
|
|
-3-56 |
435 |
775 |
109.3 |
186.3 |
4 |
186.3 |
375 |
405 |
715 |
745 |
|
-3-63 |
477 |
861 |
119.6 |
207.8 |
4 |
207.8 |
417 |
447 |
801 |
831 |
|
-3-71 |
526 |
958 |
132 |
232 |
4 |
232 |
466 |
496 |
898 |
928 |

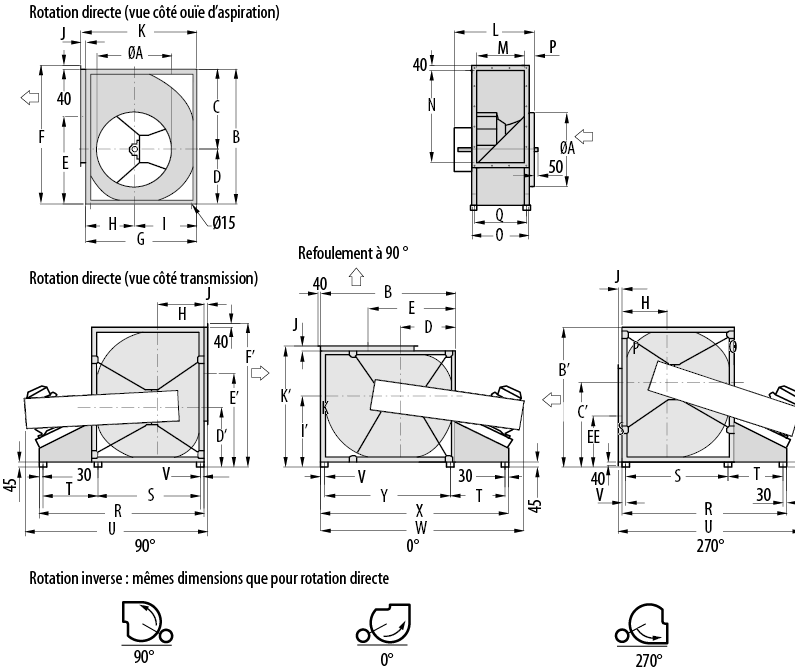

Sizes 080 to 100
Direct rotation (view from the suction inlet side)
|
Model |
A |
B |
B ' |
C |
C' |
D |
D' |
E |
E ' |
EE |
F |
F ' |
G |
H |
|
-3-80 |
806 |
1470 |
1515 |
872 |
917 |
598 |
643 |
965 |
1010 |
550 |
1510 |
1555 |
1216 |
494 |
|
-3-90 |
911 |
1648 |
1695 |
978 |
1023 |
670 |
715 |
1080 |
1125 |
614 |
1688 |
1734 |
1366 |
557 |
|
-3-100 |
911 |
1860 |
1905 |
1125 |
1170 |
735 |
780 |
1176 |
1221 |
729 |
1905 |
1541 |
657 |
|
Model |
I |
I ' |
J |
K |
K ' |
L |
M |
N |
O |
P |
Q |
R |
|
-3-80 |
722 |
767 |
40 |
1265 |
1301 |
820 |
525 |
1007 |
633 |
86 |
589 |
1791 |
|
-3-90 |
809 |
854 |
40 |
1405 |
1454 |
900 |
587 |
1130 |
695 |
85 |
651 |
1940 |
|
-3-100 |
884 |
929 |
1586 |
1005 |
670 |
1267 |
770 |
85 |
730 |
2116 |
|
Model |
S |
T |
U |
V |
W |
X |
Y |
Weight without motor (kg) |
|
-3-80 |
1096 |
605 |
2000 |
60 |
2210 |
2045 |
1350 |
279 |
|
-3-90 |
1246 |
605 |
2150 |
60 |
2390 |
2223 |
1528 |
341 |
|
-3-100 |
1481 |
575 |
2280 |
30 |
2600 |
2435 |
1800 |
401 |
Discharge flange
|
Model |
a |
b |
c |
d |
e |
f |
g |
h |
j |
k |
n |
m |
o |
p |
|
-3-80 |
613 |
1095 |
212 |
154 |
5 |
212 |
533 |
573 |
1015 |
1056 |
4.5 |
10 |
15 |
19.5 |
|
-3-90 |
675 |
1218 |
236 |
165 |
5 |
236 |
595 |
632 |
1138 |
1175 |
4.5 |
10 |
15 |
19.5 |
|
-3-100 |
770 |
1367 |
227 |
270 |
6 |
220 |
670 |
1267 |
12 |
27 |

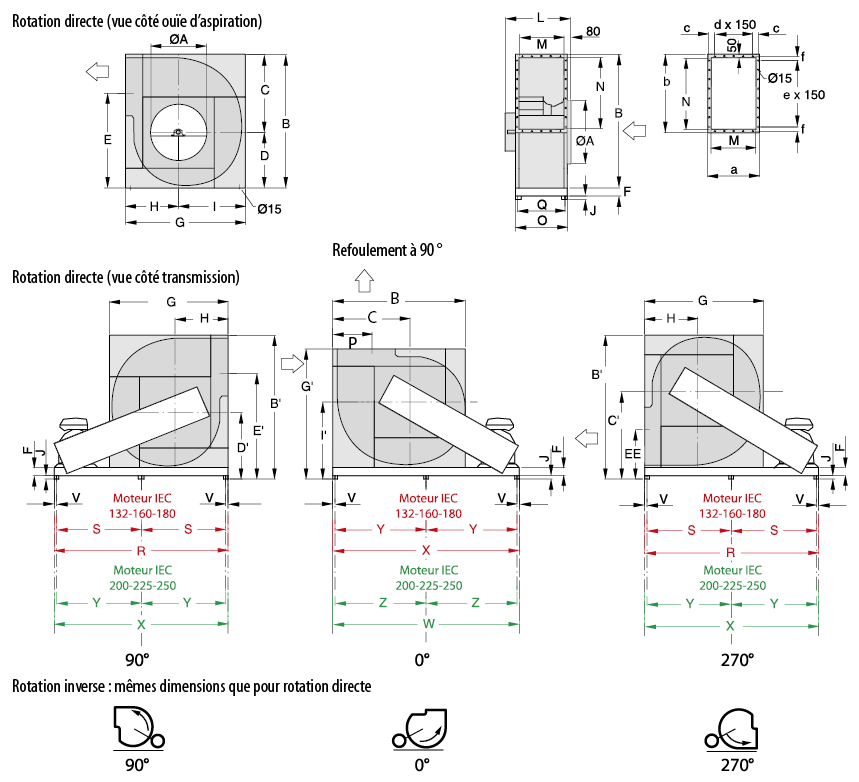

Sizes 112 to 140 - Motor behind the fan
|
Model |
Motor shaft height |
A |
B |
B ' |
C |
C' |
D |
D' |
E |
E ' |
EE |
F |
|
-3-112 |
132/160/180/200/225 |
1000 |
2099 |
2264 |
1220 |
1385 |
879 |
1044 |
1489 |
1654 |
775 |
120 |
|
-3-125 |
132/160/180/200/225/250 |
1120 |
2357 |
2540 |
1371 |
1554 |
986 |
1169 |
1682 |
1865 |
858 |
120 |
|
-3-140 |
132/160/180/200/225/250 |
1250 |
2660 |
2863 |
1550 |
1752 |
1110 |
1313 |
1910 |
2113 |
953 |
140 |
|
Model |
Motor shaft height |
G |
G ' |
H |
I |
I ' |
J |
L |
M |
N |
O |
P |
|
-3-112 |
132/160/180/200/225 |
1884 |
2049 |
835 |
1049 |
1214 |
39 |
1040 |
710 |
1120 |
810 |
610 |
|
-3-125 |
132/160/180/200/225/250 |
2099 |
2282 |
920 |
1179 |
1362 |
39 |
1140 |
800 |
1250 |
900 |
675 |
|
3-140 |
132/160/180/200/225/250 |
2340 |
2543 |
1010 |
1330 |
1533 |
39 |
1220 |
900 |
1400 |
1000 |
750 |
|
Model |
Motor shaft height |
Q |
R |
S |
V |
W * |
X |
Y * |
Z |
Weight without motor (kg) |
|
-3-112 |
132/160/180/200/225 |
770 |
2750 |
1350 |
25 |
3150 |
2950 |
1450 |
1550 |
523 |
|
-3-125 |
132/160/180/200/225/250 |
860 |
2950 |
1450 |
25 |
3400 |
3200 |
1575 |
1675 |
601 |
|
-3-140 |
132/160/180/200/225/250 |
965 |
3200 |
1570 |
30 |
3700 |
3500 |
1720 |
1820 |
785 |
* For axle height 200/225 or 250
Discharge flange
|
Model |
a |
b |
c |
d |
e |
f |
|
-3-112 |
810 |
1220 |
85 |
4 |
7 |
65 |
|
-3-125 |
900 |
1350 |
55 |
5 |
8 |
55 |
|
-3-140 |
1000 |
1500 |
105 |
5 |
9 |
55 |

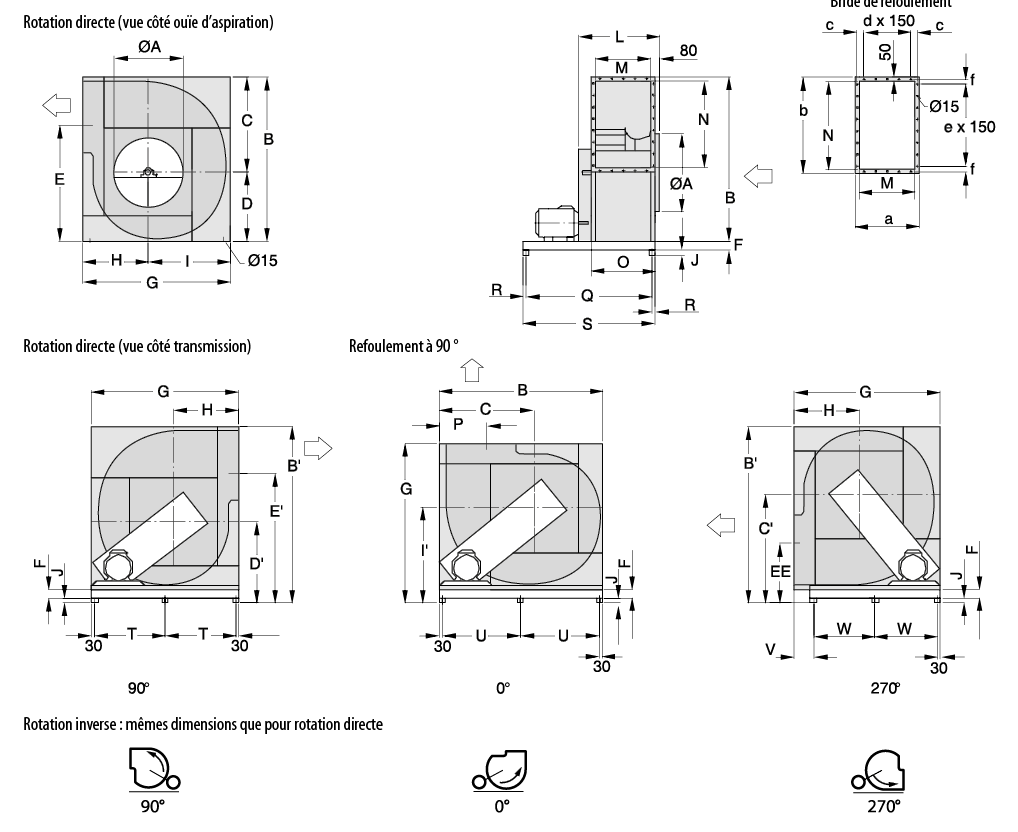

Sizes 112 to 140 - Motor side of the fan
|
Model |
A |
B |
B ' |
C |
C' |
D |
D' |
E |
E ' |
EE |
F |
G |
G ' |
H |
I |
|
-3-112 |
1000 |
2099 |
2244 |
1220 |
1365 |
879 |
1024 |
1489 |
1634 |
755 |
100 |
1884 |
2029 |
835 |
1049 |
|
-3-125 |
1120 |
2357 |
2540 |
1371 |
1554 |
986 |
1169 |
1682 |
1865 |
858 |
120 |
2099 |
2282 |
920 |
1179 |
|
-3-140 |
1250 |
2660 |
2863 |
1550 |
1753 |
1110 |
1313 |
1910 |
2113 |
953 |
140 |
2340 |
2543 |
1010 |
1330 |
|
Model |
I ' |
J |
L |
M |
N |
O |
P |
Q |
R |
S |
T |
U |
V |
W |
Weight without motor (kg) |
|
-3-112 |
1194 |
45 |
1040 |
710 |
1120 |
810 |
610 |
1660 |
20 |
1700 |
912 |
1020 |
240 |
807 |
543 |
|
-3-125 |
1362 |
63 |
1140 |
800 |
1250 |
900 |
675 |
1755 |
25 |
1805 |
1020 |
1149 |
255 |
907 |
651 |
|
-3-140 |
1533 |
63 |
1220 |
900 |
1400 |
1000 |
750 |
1875 |
30 |
1935 |
1140 |
1300 |
268 |
1021 |
845 |
Discharge flange
|
Model |
a |
b |
c |
d |
e |
f |
|
-3-112 |
810 |
1220 |
85 |
4 |
7 |
65 |
|
-3-125 |
900 |
1350 |
55 |
5 |
8 |
55 |
|
-3-140 |
1000 |
1500 |
105 |
5 |
9 |
55 |
Detailed specifications
Text catalog pages (CT)
Installation instructions
Installation instructions (NT)
BUFFALO GRILL - ANNEMASSE
Restaurant chains
74 - Haute-Savoie
Année : 2009
Maître d'ouvrage : BUFFALO GRILL SA
Installateur : NACIA (dep. 01)
Installed products:
BUFFALO GRILL - CHATEAUBRIANT
Restaurant chains
44 - Loire-Atlantique
Année : 2007
Maître d'ouvrage : BUFFALO GRILL SA
Installateur : CESBRON GROUPE DALKIA (dep. 44)
Installed products:
BUFFALO GRILL - MARLENHEIM
Restaurant chains
67 - Bas-Rhin
Année : 2009
Maître d'ouvrage : BUFFALO GRILL SA
Installateur : CESBRON GROUPE DALKIA (dep. 88)
Installed products:
BUFFALO GRILL - SAINT PAUL LES DAX
Restaurant chains
40 - Landes
Année : 2008
Maître d'ouvrage : BUFFALO GRILL SA
Installateur : CESBRON GROUPE DALKIA (dep. 85)
Installed products:
BUFFALO GRILL - VENISSIEUX
Restaurant chains
69 - Rhône
Année : 2007
Maître d'ouvrage : BUFFALO GRILL SA
Installateur : RHONALP FROID (dep. 69)
Installed products:
CENTRE PENITENTIAIRE (690 PLACES) - NANCY-MAXEVILLE
Prisons
54 - Meurthe-et-Moselle
Année : 2009
Maître d'ouvrage : OPTIMEP4 - EIFFAGE
Installateur : STIHLE FRERES (dep. 67)
Architecte : VALODE ET PISTRE
Installed products:
CENTRE PENITENTIAIRE (810 PLACES) - BEZIERS
Prisons
34 - Herault
Année : 2009
Maître d'ouvrage : OPTIMEP4 - EIFFAGE
Installateur : EIFFAGE THERMIE (dep. 31)
Architecte : VALODE ET PISTRE
Installed products:
GRANDE HALLE D'AUVERGNE - COURNON
Performance halls
63 - Puy-de-Dome
Année : 2003
Maître d'ouvrage : CONSEIL RÉGIONAL
Installateur : TUNZINI (dep. 69)
Architecte : GRESY ANDRÉ ET SERGE
Installed products:
LES TERRASSES DU PORT - MARSEILLE
Shopping centers
13 - Bouches-du-Rhône
Année : 2013
Maître d'ouvrage : HAMMERSON FRANCE
BET Fluides : BARBANEL
Installateur : BILLON (dep. 26)
Architecte : 4A ARCHITECTES
Installed products:
MAISON D’ARRET (690 PLACES)- LYON-CORBAS
Prisons
69 - Rhône
Année : 2008
Maître d'ouvrage : OPTIMEP4 - EIFFAGE
Installateur : EIFFAGE THERMIE (dep. 69)
Architecte : VALODE ET PISTRE
Installed products:
